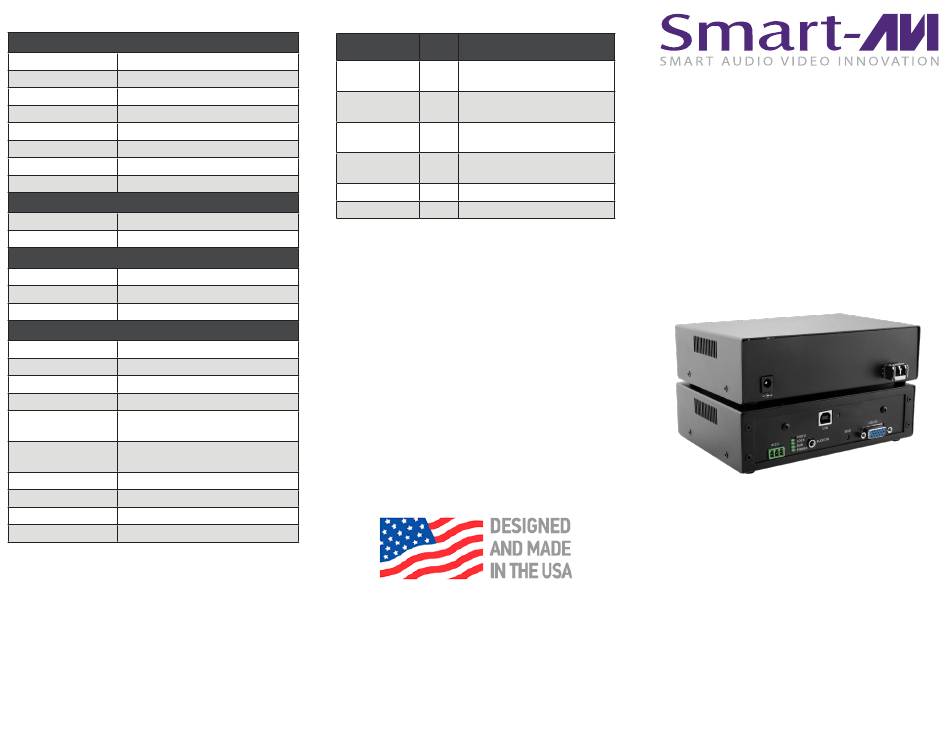

SMART-AVI FVX-3000-Pro Quick Start Manual

TECHNICAL SPECIFICATION

VIDEO
Format VGA
Input (1) VGA Female
Output (1) VGA Female
Max. Pixel Clock 165 MHz
Max. Data Rate 6.75 Gbps
Resolution Up to 1080p (1920x1080 @ 60Hz)
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
AUDIO
Input (1) 3.5mm stereo audio jack
Output (1) 3.5mm stereo audio jack
RS-232
Signal Direction Unidirectional
Max Baud Rate 115200bps (Self-adaptive)
Data Bits 8
OTHER
Power Adapter 12VDC2A
Dimensions 6.25" W x 1.875" H x 5.0" D
Weight (TX & RX) 1.45 lbs (0.725 lbs per unit)
Approvals UL, CE, ROHS Compliant
Fiber Interface
LC Single-Mode Fiber
& Type
Transmission
Up to 10 km (6.2 miles)
Distance
Working Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 149 °F (-20 to 65°C)
Working Humidity Up to 85% RH (no condensation)
Storage Humidity Up to 90% RH (no condensation)
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
VGA, Audio, RS-232 and
FVX-TX3000P 1
USB KM Fiber Transmitter
VGA, Audio, RS-232 and
FVX-RX3000P 1
USB KM Fiber Receiver
Fiber Optic Transceiver
FVX-3000TX-TR 2
Transmitter (Blue handle)
Fiber Optic Transceiver
FVX-3000RX-TR 2
Receiver (Yellow handle)
PS12VDC2A 2 Power Adapter
1 Quick Start Guide
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

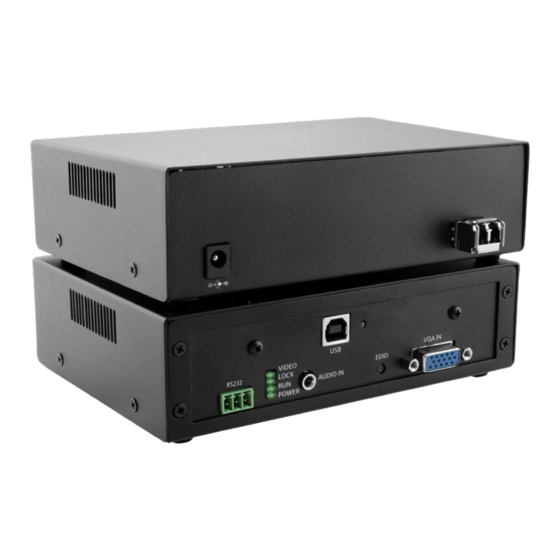

FVX-3000-Pro
Single-Mode VGA,
Stereo Audio, RS-232,
and USB Keyboard-Mouse
Fiber Extender
EXTENDS SINGLE-MODE VGA,
USB KEYBOARD-MOUSE,
STEREO AUDIO AND RS-232
SIGNAL UP TO 10 KM OVER
THE FIBER OPTIC CABLE
Quick Start Guide
