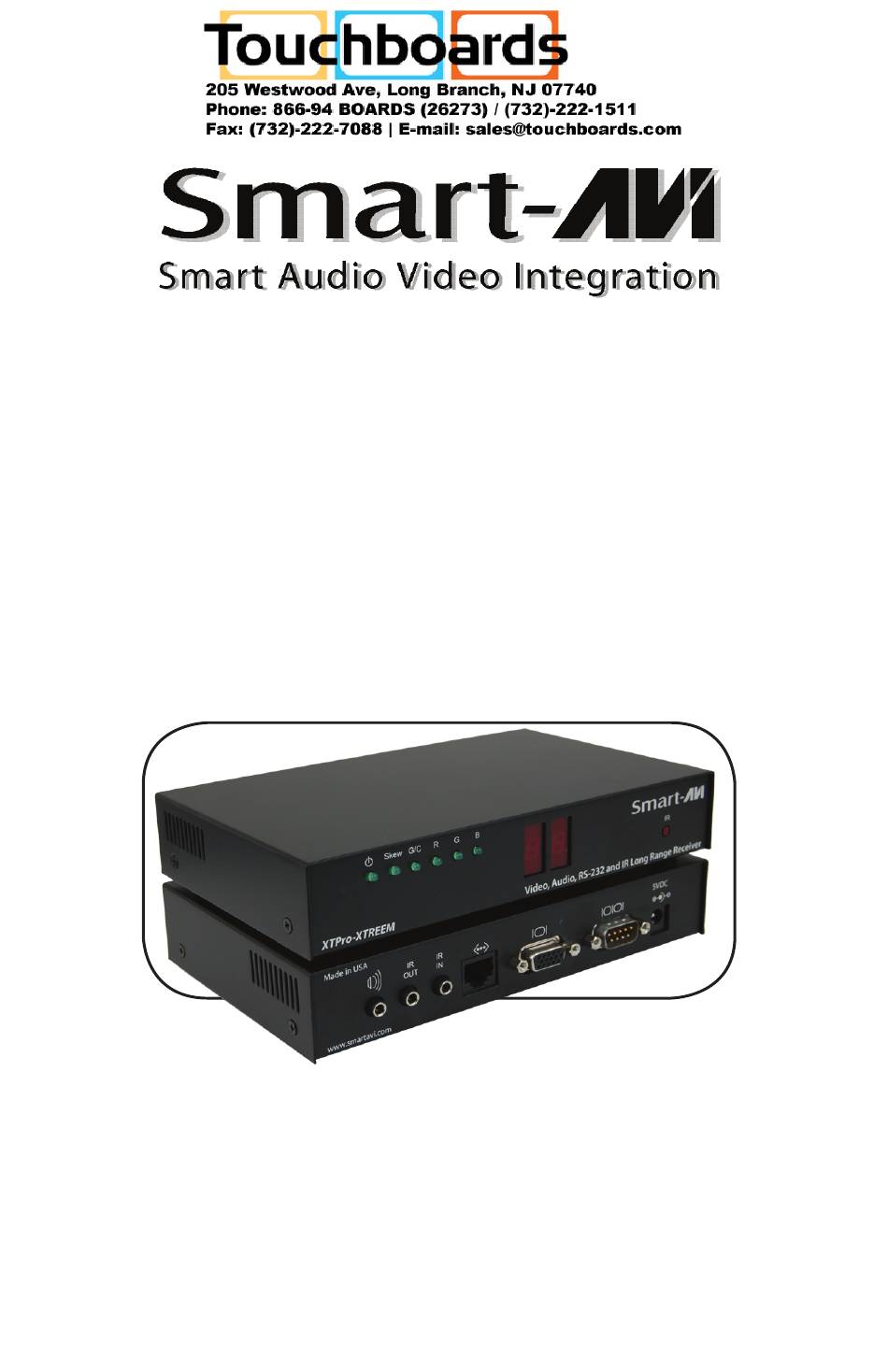

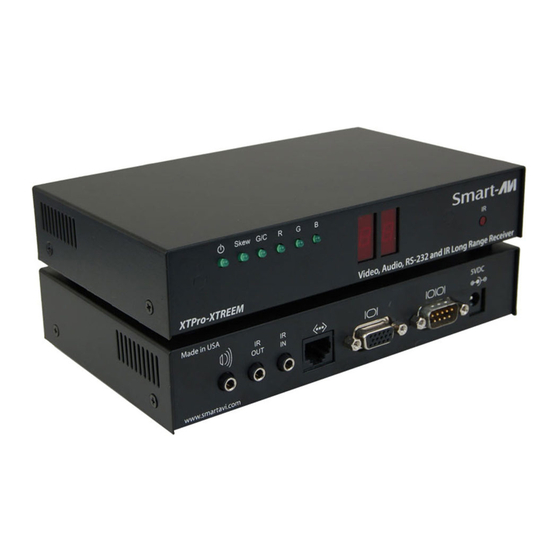

- Page 1 User Manual XTPro Xtreem Use a Single Cat5 to Broadcast High-Resolution SXGA, Stereo Audio, RS-232 and Infrared Signals up to 1,699 Feet Away...
- Page 2 Designated Trimmer and Digital Compensate System Compact Metal Case Enclosure Supports RS-232 and IR What’s in the box? XTPro Xtreem - Please check the contents of the package before beginning installa- tion. XTPro Xtreem Package Contents Item XTPro Transmitter XTP-TX...
- Page 3 Connecting The Transmitter Connecting The Transmitter 1. Connect the output of the computer video card to the video input of the 1. Connect the output of the computer video card to the video input of the transmitter using the included male-to-male video cable. transmitter using the included male-to-male video cable.
- Page 4 Adusting the XTPro Xtreme via Infrared Remote Tool Adusting the Smart-AVI XTPro Xtreem using the free included infrared remote control tool has been made simple for you. Follow these brief steps to adjust Gain, Contrast and Skew of your XTPro Xtreme unit at the receiver/display monitor location(s): GAIN Gain controls the intensity of the colors displayed on your monitor.
- Page 5 A perfectly-adjusted contrast signal gives you a crisp, well-defined image on your display screen. To adjust the XTPro Xtreem’s Contrast signal with the IR remote: • Make sure the XTPro Xtreem units (Transmitter/Receiver) have been powered on.
- Page 6 Cat5 cable in such a way that inevitably, they are not the same exact length. The Skew function of your XTPro Xtreem allows you to manually correct this variation of RGB signal “arrival” to your monitor so that the picture is perfect as you view it.
- Page 7 Once Gain, Contrast and/or Skew settings have been adjusted, you will not need to make any further changes unless you unplug any of the hardware compo- nents attached to the XTPro Xtreem; your adjustments will remain resident in the unit’s memory indefinitely, even upon powering the unit on/off, so long as it’s never physically disconnected.
