SMART-AVI DVX-ULTRA Installation Manual

What's in the Box?
PART NO. QTY DESCRIPTION
DVX-UTTXS 1 DVI-D+USB 2.0 Extender Transmitter
DVX-UTRXS 1 DVI-D+USB 2.0 Extender Receiver
Power Supply 2 PS5VDC4A

Technical Specifications

VIDEO
Format DVI-D Single Line
Maximum Pixel Clock 165 MHz
Input Interface (TX) DVI-D 29-pin female
Output Interface (RX) DVI-D 29-pin female
Resolution Up to 1920 x 1200 @60Hz
DDC 5 volts p-p(TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
USB
Signal Type USB 2.0 (Fully Transparent)
Input Interface (TX) (1) USB Type B (Female)
Output Interface (RX) (4) USB Type A (Female)
OTHER
Power External 100-240 VAC/5VDC4A @20W
Dimensions 6.25 in W x 1 in H x 3.5 in D
Weight 1 lb
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
© Copyright 2011 Smart-AVI, All Rights Reserved
NOTICE
T h e i n f o r m a t i o n c o n t a i n e d i n t h i s d o c u m e n t
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.

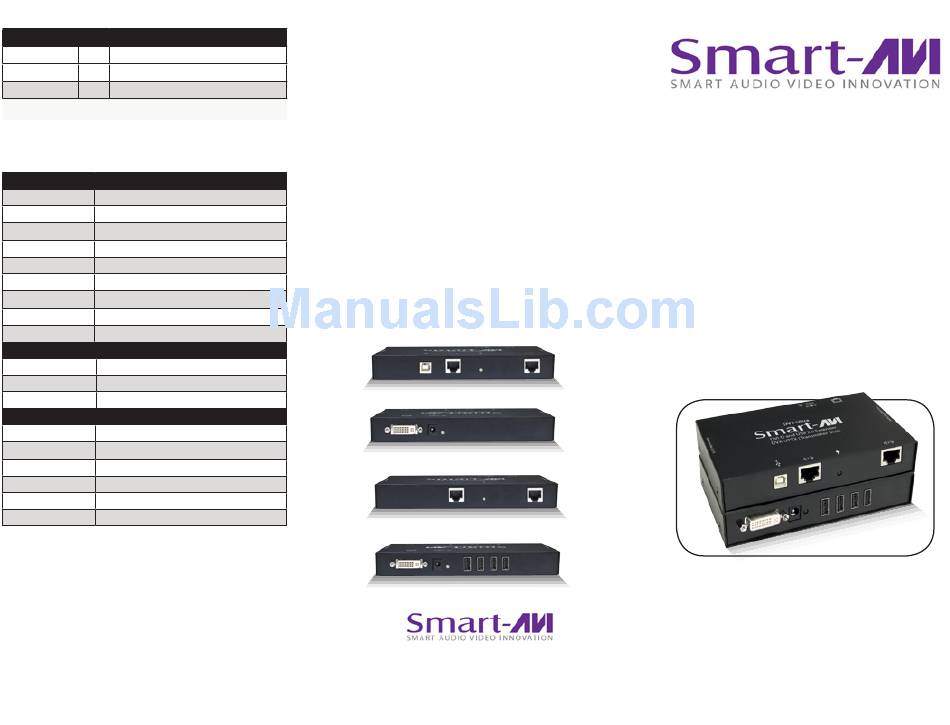

DVX-UltraTX Front
DVX-UltraTX Rear
DVX-UltraRX Front
DVX-UltraRX Rear
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St., North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
Installation
Manual
DVX- Ultra
DVI-D and USB 2.0 Extender
over STP
DVI-D and USB 2.0 Extender up to
250 feet over STP Cable
www.smartavi.com
