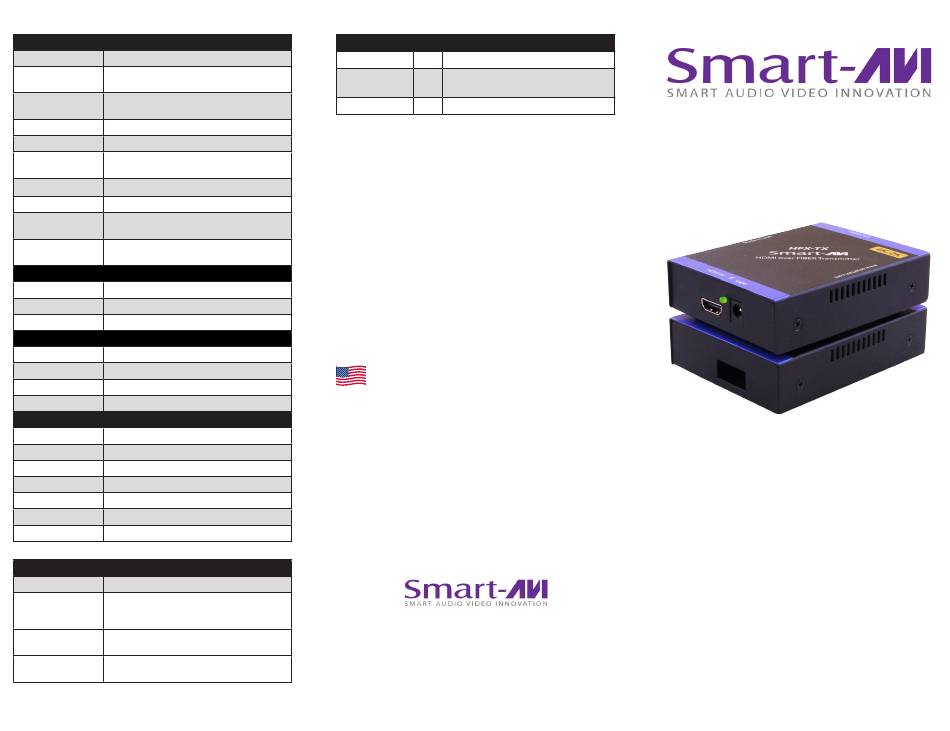

SMART-AVI HFX User Manual

Technical Specifications
VIDEO
Format HDMI 1.4 and HDCP Compliant
HDTV Resolutions 480p, 720p, 1080i, 1080p @ 60 Hz/48bit,
4Kx2K @ 30 Hz
Standard TV 480i
Resolution
Refresh Rate Up to 130 Hz
Wavelength 850 nm
Bit Error Rate 1.00E-12
Performance
Input Interface (TX) HDMI Type A19-pin Female TMDS
Output Interface (RX) HDMI Type A19-pin Female TMDS
Input Cable Length Up to 40 ft.
(TX)
Output Cable Length Up to 40 ft.
(RX)
AUDIO
Format Dolby TrueHD, DTS-HD MA
Input Interface HDMI (Integrated)
Output Interface HDMI (Integrated)
SYSTEM
Interface LC-Type Fiber Optic Cable Connector
Cable Requirements Multimode, OM3
Maximum Length 1,000 feet (300 meters)
Laser Output Power Class 1; EN 60825-1 2007; EN 60825-2 A2 2010
OTHER
Power External 5VDC2A @10W
Dimensions 1.125"H x 5"W x 4.125"D
Weight 1 lb
Approvals UL, CE, ROHS Compliant
Operating Temp. 32-131°F (0-55 °C)
Storage Temp. -4-185 °F (-20-85 °C)
Humidity Up to 95%
ORDER INFO
Part No. Description
HFX-S HDMI Point to Point Fiber Extender.
Includes:[HFX-TX, HFX-RX,
2 x (PS5VD2A-WLLMNT)]
HFX-TXS HDMI 2K/4K Multimode Fiber Transmitter.
Includes: [HFX-TX, PS5VD2A-WLLMNT]
HFX-RXS HDMI 2K/4K Multimode Fiber Receiver.
Includes: [HFX-RX, PS5VD2A-WLLMNT]
What's in the Box?
*
PART NO. QTY
HFX-RX
HFX-TX
Power Supply
Designed and Manufactured in the USA
800.AVI.2131 • 818.503.6200
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
DESCRIPTION
1 HDMI 2K/4K Multimode Fiber Receiver.
1 HDMI 2K/4K Multimode Fiber
Transmitter
2 PS5VD2A-WLLMNT
SmartAVI.com

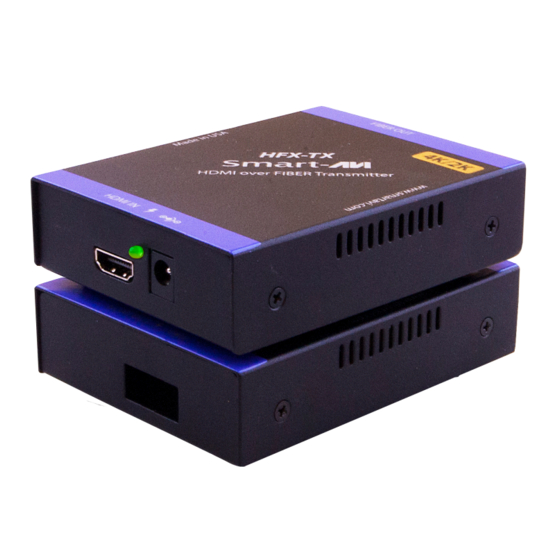

HFX
4K HDMI Extender over
Fiber Optic Cables
Extend uncompressed HDMI signals
up to 1,000 ft over multimode
fiber opticcabling,
with resolutions up to 4K Ultra
USER MANUAL
