SMART-AVI USB2FX Quick Start Manual

TECHNICAL SPECIFICATION
USB
Signal Type USB 2.0
Input Interface (TX) (1) USB Type B (Female)
Output Interface (RX) (4) USB Type A (Female)
OTHER
Power External 100-240 VAC/5VDC3A
Dimensions 4.3" W x 1.1" H x 2.5" D
Weight 1.5 lb
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95% (non-condensing)
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
USB2FX-TX 1 USB 2.0 over Fiber Transmitter
USB2FX-RX 1 USB 2.0 over Fiber Receiver
PS5VD3A 2 5V 3A Power Supply
Quick Start
1
Guide
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
(888)-994-7427, (702)-800-0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

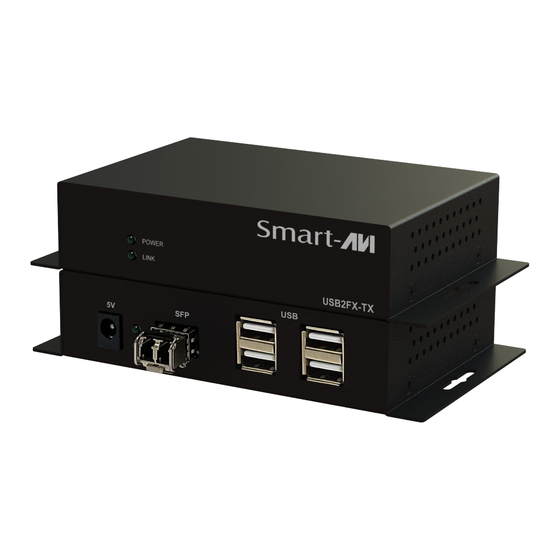

USB2FX
USB 2.0 Extender over Fiber
EXTENDS USB 2.0
UP TO 10 KM
OVER FIBER CABLE
IN SINGLE MODE
Quick Start Guide
