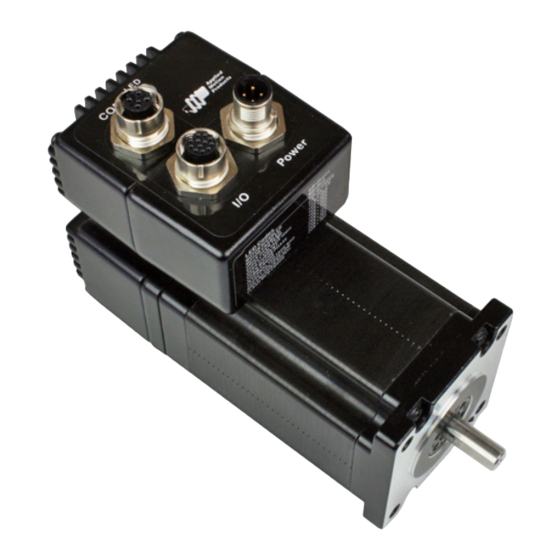

Moons' Applied Motion Products SWM24 Quick Setup Manual

SWM
SWM24 Ethernet Quick Setup
Guide

Requirements

To begin, make sure you have the following equipment:
A 12-70V DC power supply.
▪
A personal computer running Microsoft Windows 98, 2000, ME, NT, XP, Vista or 7/8/10/11.
▪
ST Configurator™ software (available at www.applied-motion.com/products/software).
▪
A 3004-277-5M power cable, 3004-290-5M I/O cable, or a 3004-280-5M Ethernet cable, as needed.
▪
NOTE: Cables are NOT included and must be purchased separately.
▪
For more detailed information, please download and read the SWM24 Hardware Manual, available at www.applied-
▪
motion.com/support/manuals.
Step 1
DO NOT apply power until all connections to the drive have been made.
a) Download and install the ST Configurator™ software.
b) If you intend to connect the drive directly to your PC, configure your computer to use IP address 10.10.10.11. (For
instructions on connecting your STM drive to a local area network (LAN), please consult the STM23 Hardware
Manual)
c) Do not connect the Ethernet cable to the SWM24 before applying power. This will cause the drive to use its
recovery address, thus assigning itself IP address 10.10.10.10. (See the SWM24 Hardware Manual for further
details on selecting IP addresses for the drive and PC)
d) Launch the software by clicking: Start / All Programs / Applied Motion Products / ST Configurator
Step 2
Wire the drive to the DC power source.
(Do not apply power until Step 3)
Note - the SWM24 accepts DC voltages from 12-70V. If using
an external fuse, we recommend a 5 amp fast acting fuse.
(See the SWM24 Hardware Manual for more information about
power supply and fuse selection.)
Connect I/O, if required by your application. A 3004-290-5M
cable will be required.
(See the SWM24 Hardware Manual for more information about
wiring I/O to the SWM24.)
CONNECTION CHART
PIN
1
2
3
4
METAL HOUSING FRAME GND & SHIELD
EMI Filter
P/N:092.00823.00 (LCR)
V+
L
AC
Power
Input V-
N
SIGNAL WIRE COLOR
DC + BRN
DC - WHT
DC + BLU
DC - BLK
SHIELD
V+
V+
L
DC POWER
SUPPLY
V-
V-
N
GND
POWER
4 1
2 3
GND
920-0070 Rev C
