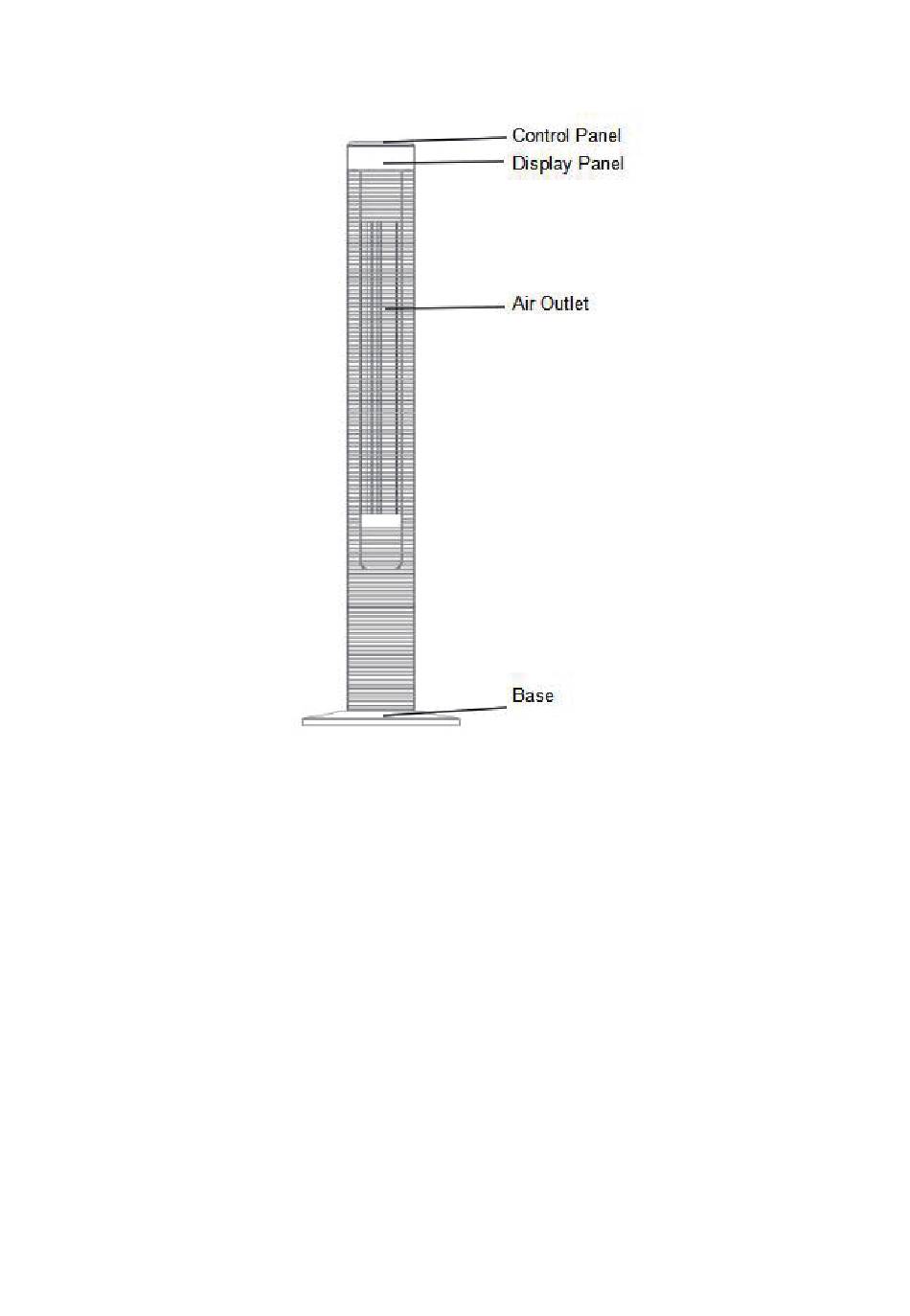

PARTS NAME

ASSEMBLY
The base of the tower fan comes in two parts, which fit around the
oscillation base. Both parts fit easily together. 1.First attach the front half
of the base, aligning the holes in base with the screw hole in the oscilla-
tion base, and leading the power cord up the base. 2.Then snap the
back half of the base to the front half and secure with the plastic screw
nut (supplied),wise it clockwise (Figure1)
