Parts Name - HOMCOM 824-055V90 Assembly & Instruction Manual

WARNING :

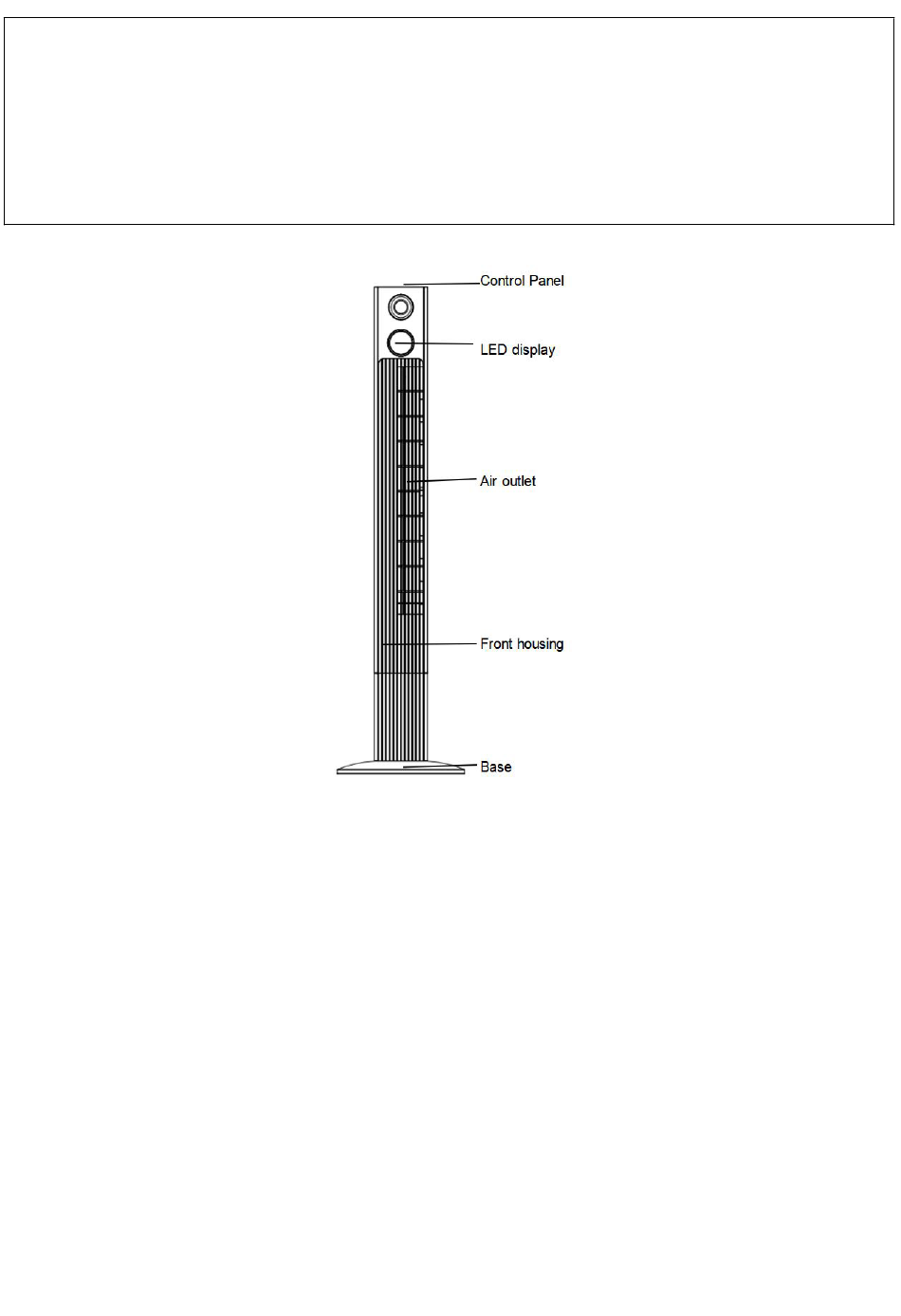

PARTS NAME

ASSEMBLY
The base of the tower fan comes in two parts, which fit around the oscillation
base. Both parts fit easily together. The back half is the one with cut-outs for
the power supply cord.
1. First attach the front half of the base, aligning the holes in base with the
screw holes in the oscillation base, and leading the power cord through
the centre hole.
2. Then snap the back half of the base to the front half and secure with the
four screws (supplied)
3. Thread the power supply cord through the two cut-outs at the bottom of
the base. (shown in Fig 1)
To avoid danger of electric shock, unplug
from outlet when not in use and before
cleaning. If the supply cord is damaged, it
must be replaced by the manufactory
service agent or a similarity qualified
person in order to avoid a hazard.
3
