Parts Name - HOMCOM TF3608TR-L Manual

PARTS NAME

ASSEMBLY

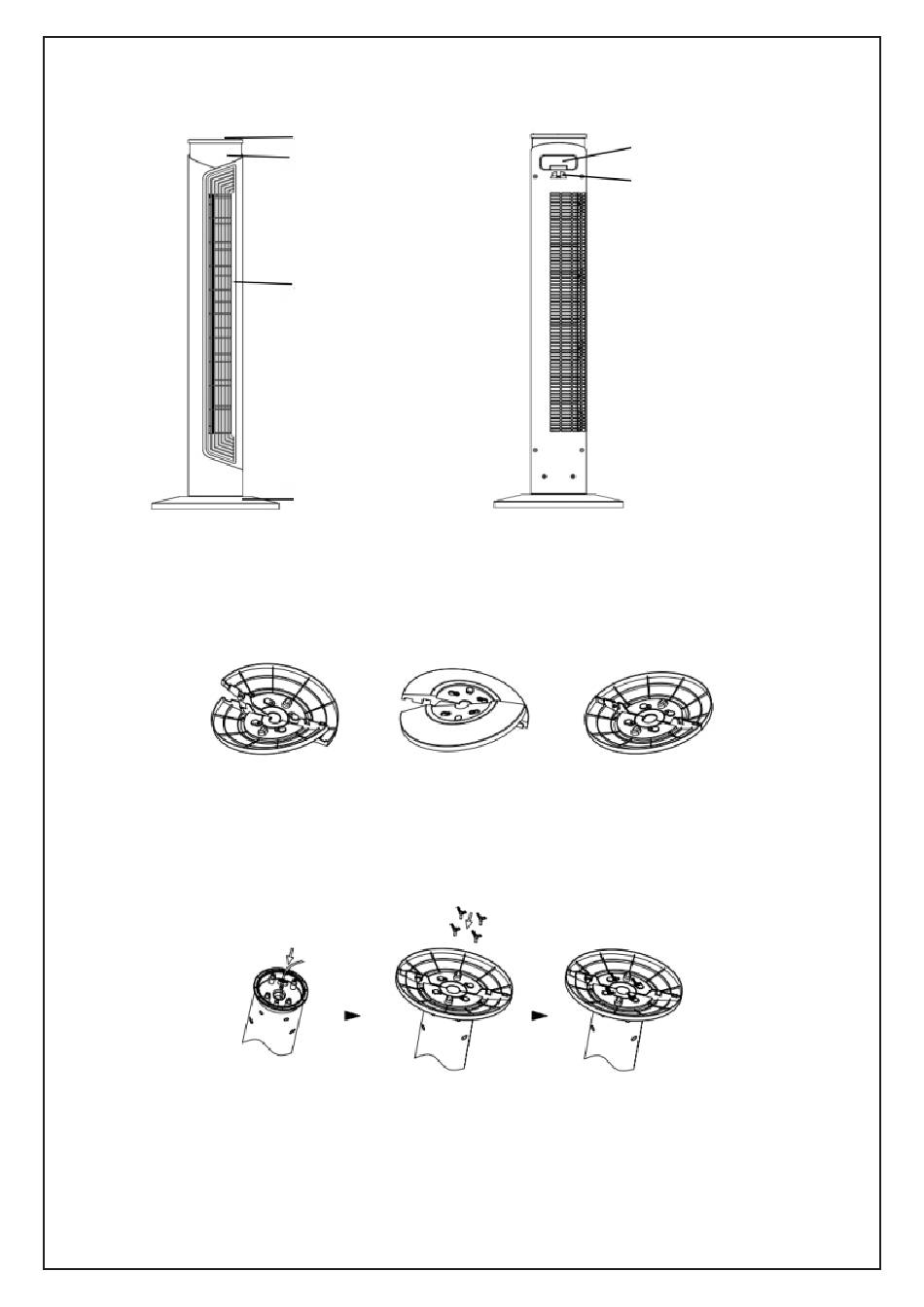

1. Take out the two parts of the base from packing box. Then, align the centers of the two
parts of the base and place them in a crossed form. Rotate one of the two bases to
align its hole site and make it stuck correctly. (Fig 1)
2. Put the wire in the recess, then fix the base on the fan body with four screws (included),
and turn the screws clockwise. (Fig 2)
Control panel
LED display
Air outlet
Base
(Fig 1)
(Fig 2)
3
Remote control storage &
carry handle
Cable hook
