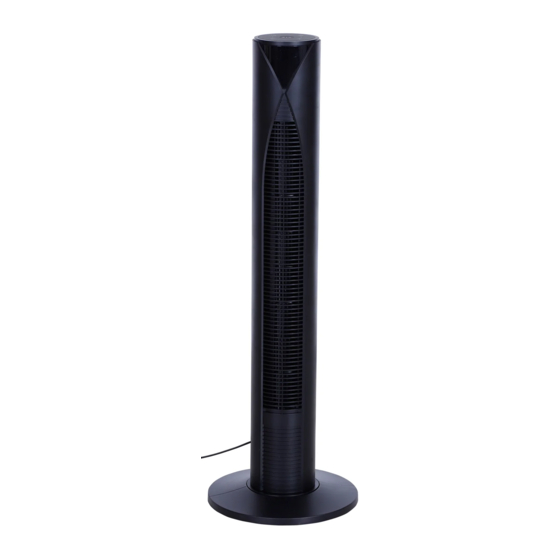

- Page 1 TOWER FAN 824-007(TF3803TR-L) 824-006(TF4604TR-L 220-240V~50-60Hz 45W C000000...
-
Page 2: Important Safety Information
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT YOURSELF AND.OTHER BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE! IMPORTANT SAFETY INFORMATION 1. Read all instructions carefully before using the FAN. 2. - Page 3 The Main Power Switch and the On/Off WARNING : switch should not be used as the sole means of disconnecting power. Always unplug the power cord before servicing or moving the unit. 14. Always disconnect the fan from the power supply when moving it from one location to another.
-
Page 4: Parts Name
PARTS NAME TF3803TR-L TF4604TR-L ASSEMBLY The base of the tower fan comes in two parts, which fit around the oscillation base. Both parts fit easily together. 1.First attach the front half of the base, aligning the holes in base with the screw hole in the oscillation base, and leading the power cord up the base. -
Page 5: Remote Control
(Figure 1) 3. Thread the power supply cord through the two cut-outs at the bottom of the base. REMOTE CONTROL 1. Install one ‘mercury’ ( included) batteries. 2. The Remote Control Power button is labeled as such. All the functions performed with the Remote Control work identically to the Manual Controls. -
Page 6: Operation
(FIGURE 2) OPERATION The FAN may be operated by the manual controls located on the FAN (as shown in FIGURE 3) or by your remote control (shown in FIGURE 2) . (FIGURE 3) 1. Place the FAN on a stable flat surface. Plug the cord set into a 220-240V~A.C. - Page 7 2. POWER : Turn the FAN on by pressing the ‘POWER’ button; Turn the FAN off by pressing the ‘POWER’ button again. 3. SPEED : You can adjust the fan speed to the desired level: low, medium, or high by pressing ’SPEED’ . The speed setting is displayed on the LED panel (shown in FIGURE 4) ...
-
Page 8: Maintenance
set its length of operation from 1 hour to 12 hours. 6. OSCILLATION : Pressing the ‘OSC’ button will start and stop the oscillation function. The symbol is displayed on the LED panel. TF3803TR-L TF4604TR-L FIGURE 4 7. Cable Hock: The cable hock is packed with user manual, take it out and install at the back side of product.Hanging the power cord at cable hock when the fan is not be used.(FIGURE 5) (FIGURE 5) - Page 9 Sealer dealer or any agent qualified to undertake electrical repairs. 3. If the unit requires external cleaning make sure it is switched off and unplugged from the mains supply. Use a soft tissue or cloth for general cleaning. To remove more persistent dirt or grime wipe down with a cloth that has been dampened with warm soapy water.
