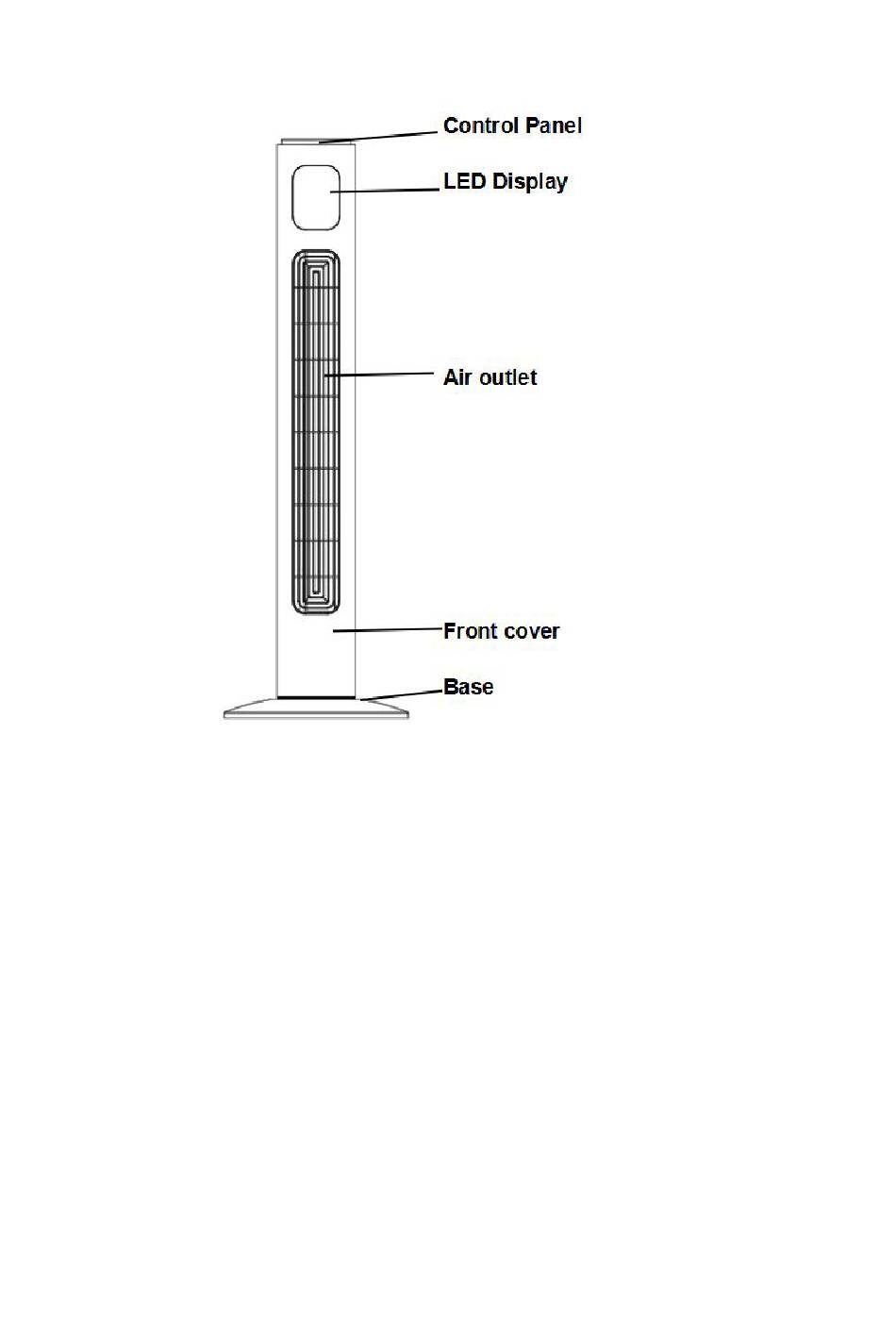

PARTS NAME
ASSEMBLY
The base of the tower fan comes in two parts, which fit around the oscillation
base. Both parts fit easily together. The back half is the one with cut-outs for
the power supply cord.
1.
First attach the front half of the base, aligning the holes in base with the
screw holes in the oscillation base, and leading the power cord through
the centre hole.
2.
Then snap the back half of the base to the front half and secure with the
four screws (supplied)
PAGE 4/7
