Specification - JETWAY MU03 Series User Manual

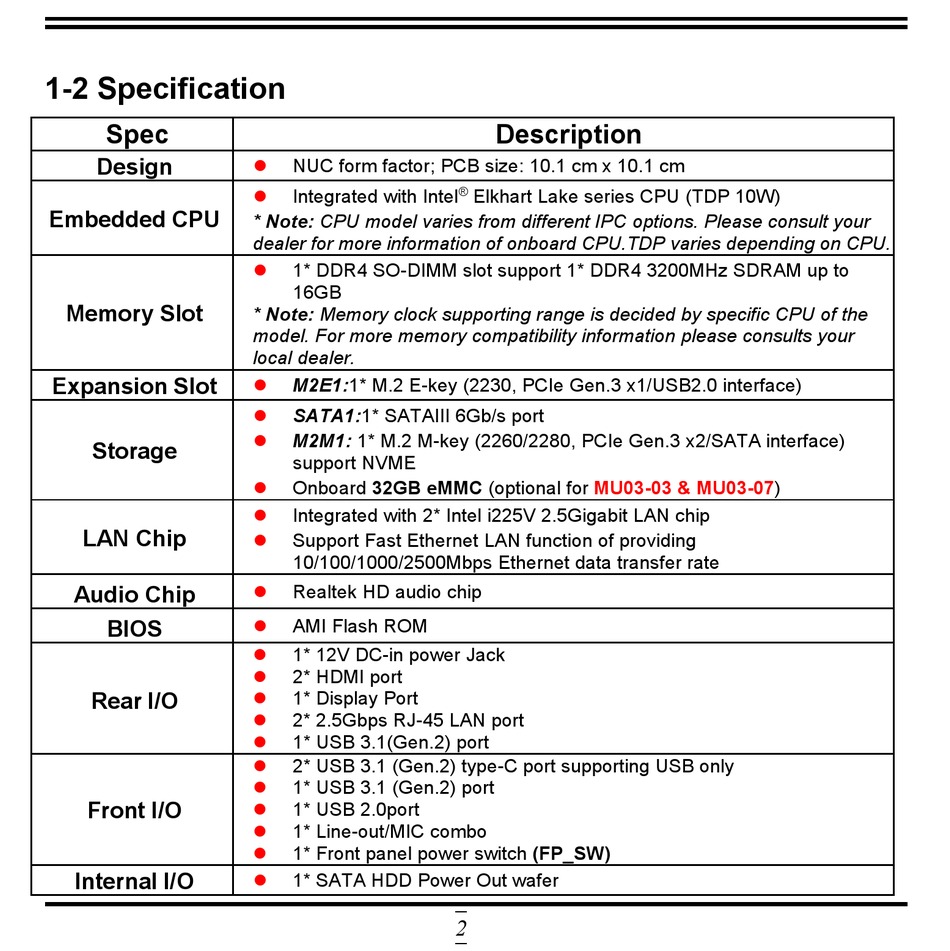

1-2 Specification

Spec
Design
Embedded CPU
Memory Slot
Expansion Slot
Storage
LAN Chip
Audio Chip
BIOS
Rear I/O
Front I/O
Internal I/O
NUC form factor; PCB size: 10.1 cm x 10.1 cm

Integrated with Intel

* Note: CPU model varies from different IPC options. Please consult your
dealer for more information of onboard CPU.TDP varies depending on CPU.
1* DDR4 SO-DIMM slot support 1* DDR4 3200MHz SDRAM up to

16GB
* Note: Memory clock supporting range is decided by specific CPU of the
model. For more memory compatibility information please consults your
local dealer.
M2E1:1* M.2 E-key (2230, PCIe Gen.3 x1/USB2.0 interface)

SATA1:1* SATAIII 6Gb/s port

M2M1: 1* M.2 M-key (2260/2280, PCIe Gen.3 x2/SATA interface)

support NVME
Onboard 32GB eMMC (optional for

Integrated with 2* Intel i225V 2.5Gigabit LAN chip

Support Fast Ethernet LAN function of providing

10/100/1000/2500Mbps Ethernet data transfer rate
Realtek HD audio chip

AMI Flash ROM

1* 12V DC-in power Jack

2* HDMI port

1* Display Port

2* 2.5Gbps RJ-45 LAN port

1* USB 3.1(Gen.2) port

2* USB 3.1 (Gen.2) type-C port supporting USB only

1* USB 3.1 (Gen.2) port

1* USB 2.0port

1* Line-out/MIC combo

1* Front panel power switch (FP_SW)

1* SATA HDD Power Out wafer

Description
Elkhart Lake series CPU (TDP 10W)
®
MU03-03 &
2
MU03-07)
