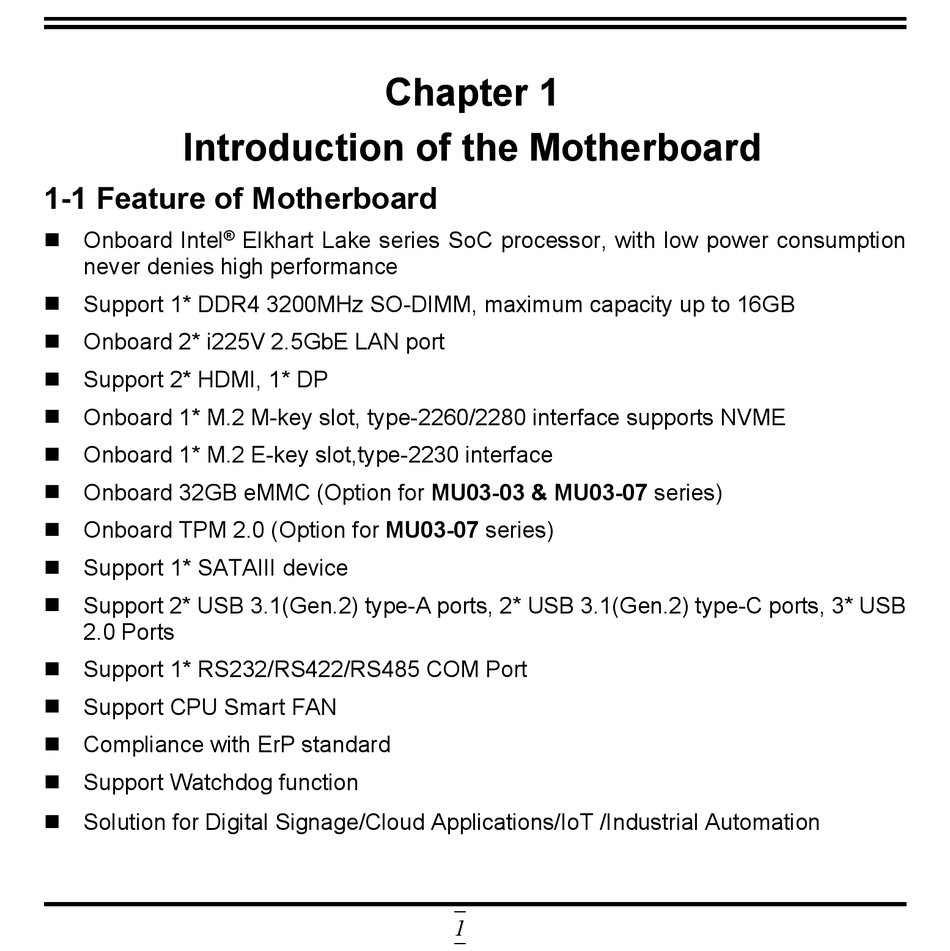

Introduction of the Motherboard

1-1 Feature of Motherboard

 Onboard Intel
never denies high performance
 Support 1* DDR4 3200MHz SO-DIMM, maximum capacity up to 16GB
 Onboard 2* i225V 2.5GbE LAN port
 Support 2* HDMI, 1* DP
 Onboard 1* M.2 M-key slot, type-2260/2280 interface supports NVME
 Onboard 1* M.2 E-key slot,type-2230 interface
 Onboard 32GB eMMC (Option for MU03-03 & MU03-07 series)
 Onboard TPM 2.0 (Option for MU03-07 series)
 Support 1* SATAIII device
 Support 2* USB 3.1(Gen.2) type-A ports, 2* USB 3.1(Gen.2) type-C ports, 3* USB
2.0 Ports
 Support 1* RS232/RS422/RS485 COM Port
 Support CPU Smart FAN
 Compliance with ErP standard
 Support Watchdog function
 Solution for Digital Signage/Cloud Applications/IoT /Industrial Automation
Chapter 1
Elkhart Lake series SoC processor, with low power consumption
®
