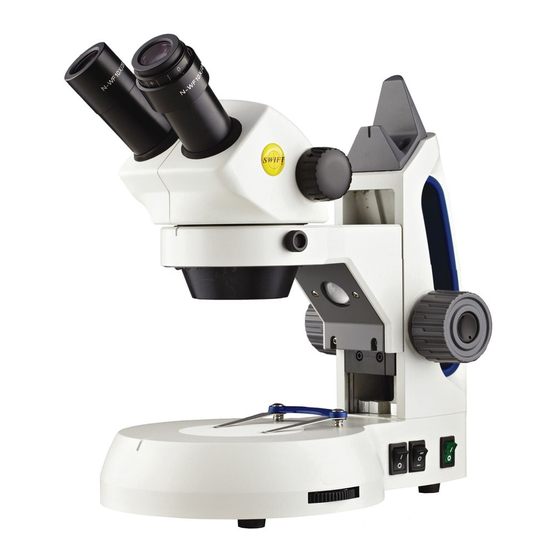

Swift SM100 Series
Stereo Microscope
Use and Care Manual
SWIFT OPTICAL
Enduring Quality and Technical Excellence

Advertisement

loading
Need help?

Need help?

Do you have a question about the SM100 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Swift SM100 Series

Summary of Contents for Swift SM100 Series

  • Page 1 Swift SM100 Series Stereo Microscope Use and Care Manual SWIFT OPTICAL Enduring Quality and Technical Excellence...
  • Page 3 SWIFT SM100 SERIES STEREO MICROSCOPE The Swift SM100 Series stereo microscope is a full size, well- balanced, stereoscopic instrument producing an erect, three- dimensional image with a large, comfortable field of view. The SM100 Series incorporates features to enhance and provide maximum versatility for classroom and professional use.
  • Page 4 SM100 CORDED SERIES STEREO MICROSCOPE SPECIFICATIONS Model Number SM101 SM102 SM105 Objectives 1X, 3X 2X, 4X 1X – 3X ZOOM Eyepieces N-WF10X/20 N-WF10X/20 N-WF10X/20 Total 10X / 20mm 10X / 20mm 10X / 10mm Magnification/ 20X / 10mm 30X / 6.5mm 40X / 5mm Field of View 30X / 6.5mm...
  • Page 5 Diopter Adjustment Cord Holder Head Magnification Knob Eyepiece Eyepiece tube Focusing Control Knob Turret Top Turret & Angled Stand Illuminators Stage Clips Stage Plate Power Switch Illuminator On/Off Bottom Switches Illuminator Illuminator Dimmer Control USB Port (SM105-C Pictured)
  • Page 6 DIOPTER ADJUSTMENT – Located on the left eyepiece tube of the SM100 Series. This adjustment is used to fine focus the optics to compensate for visual differences between the user’s eyes. EYEPIECE – The upper optical element that further magnifies the primary image of the specimen and brings the light rays in focus at the eyepoint.
  • Page 7 TURRET – The round barrel that houses the objective lenses. The SM100 Series has magnifications that can be changed by rotating the black turret magnification knob to a different set of objective lenses.

  • Page 8: Service And Cleaning

    Do not use solvents on painted surfaces. Unauthorized personnel should never disassemble lens assemblies or other precision components. For information regarding service, contact your local authorized Swift dealer or Swift customer service at (877) 967-9438.

  • Page 9: Bulb Replacement

    To prolong the life of the LED, you should always turn off the unit when not in use. The extra long life LED incidental (top) illuminator bulbs (Swift MA14780 & MA14781) can be replaced by removing the five retaining screws holding on the Illumination plate (See Fig 1.). This will require the use of a short handle screw driver.
  • Page 10 TENSION CONTROL OF FOCUSING MOVEMENT The focus tension is easily adjusted by using the Swift adjustment wrench. This wrench fits the tension collar found on the focusing controls, between the knob and upright support. A clockwise turn of this collar moves it toward the upright support and increases tension, while a counter clockwise turn moves the collar toward the knob and decreases tension (see illustration).

  • Page 11: Parts And Accessories

    MA14281 Power supply converter (100-240VAC in, 4.5VDC 1a out) MA19029 Rubber Eyeshields, pair MA2620B Black Stage Plate MA2620W White Stage Plate MA2621 Frosted Stage Plate MA533 Dustcover SWIFT OPTICAL INSTRUMENTS, INC. LIMITED LIFETIME WARRANTY Please see our website, www.swiftoptical.com, for complete warranty details and exclusions.
  • Page 12 Swift Optical Instruments, Inc.● (877) 967-9438 ● www.swiftoptical.com...
