Summary of Contents for Swift SW200DL

  • Page 1 User Guide: SW200DL...

  • Page 2: Table Of Contents

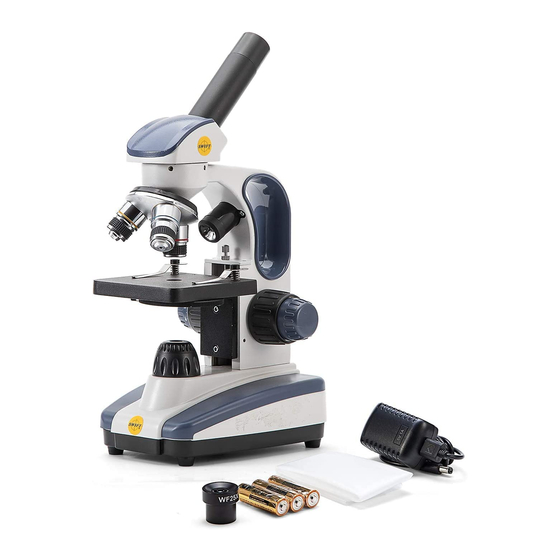

    Welcome to your Swift SW200 dual-light edition microscope! Whether you are a seasoned professional or a beginner hobbyist, Swift has the perfect microscope for you. This guide will introduce you to the components of your new microscope and help you begin using it.

  • Page 3: Specifications

    I. Specifications Model SW200DL Observation tube Monocular, 360° rotatable Inclination 30° Eyepiece Wide-field 10X and 25X Nosepiece Triple revolving Objectives 4X, 10X, and 40X Achromatic Magnifications 40X, 100X, 250X, 400X, and 1000X Stage Plain stage with slide clips Stage size...

  • Page 4: Parts Of The Microscope

    II. Parts of the microscope III. Assembly and set up Carefully remove the microscope from the box and set it on a sturdy, flat surface. Remove the plastic cover from the eyepiece holder on the microscope's head, then place an eyepiece into the holder. Locate the power adapter and attach it to the microscope, then plug it in.

  • Page 5: Caring For Your Microscope

    If you have a problem, you may be able to correct it yourself. Here are some common issues and easy solutions you can try before calling customer support for service. *Caution: Never disassemble the electrical, mechanical,or optical components. This servicing should only be done by a Swift technician.
  • Page 6 Issue Possible cause Solution Visual field is uneven, or Nosepiece is not locked in Turn nosepiece until you image is dark at the edges place to center the hear a click to center the objective lens objective lens Slide is not centered over Center the slide over the the bulb, leaving part of the bulb...

  • Page 7: Warranty Information And Customer Support

    VII. Warranty information and customer support Unsere Mikroskope werden nach ISO 9001 Standards gefertigt. Die Swift Garantie ist wie folgt festgelegt: ● Fünf (5) Jahre Garantie für Mikroskope bei Fertigungsfehlern. Die Garantie beinhaltet nicht die Abnutzung durch normalen Gerätebetrieb, Fehler durch...
  • Page 8 Instruments, Inc. autorisierte Techniker. Eine Bestätigung des Garantiefalls erfolgt durch den Techniker. *Für Kunden außerhalb der USA bietet Swift Optical Instruments, Inc. den lokalen Standard Garantie Service. Länder-übergreifende Transportkosten hin und zurück inklusive Zoll und Steuern liegen in der Verantwortung des Kunden.
  • Page 9 Haftungsausschluss: Wir arbeiten ständig an der Verbesserung unserer Geräte, um sie den Kundenwünschen anzupassen. Diese Verbesserungen können Modifikationen in Mechanik und Optik unserer Mikroskope beinhalten. Aus diesem Grund können Beschreibungen, Illustrationen und Spezifikationen dieser Bedienungsanleitung vom erworbenen Produkt abweichen. Swift Optical Instruments, Inc. (877) 967-9438 www.swiftoptical.com...
