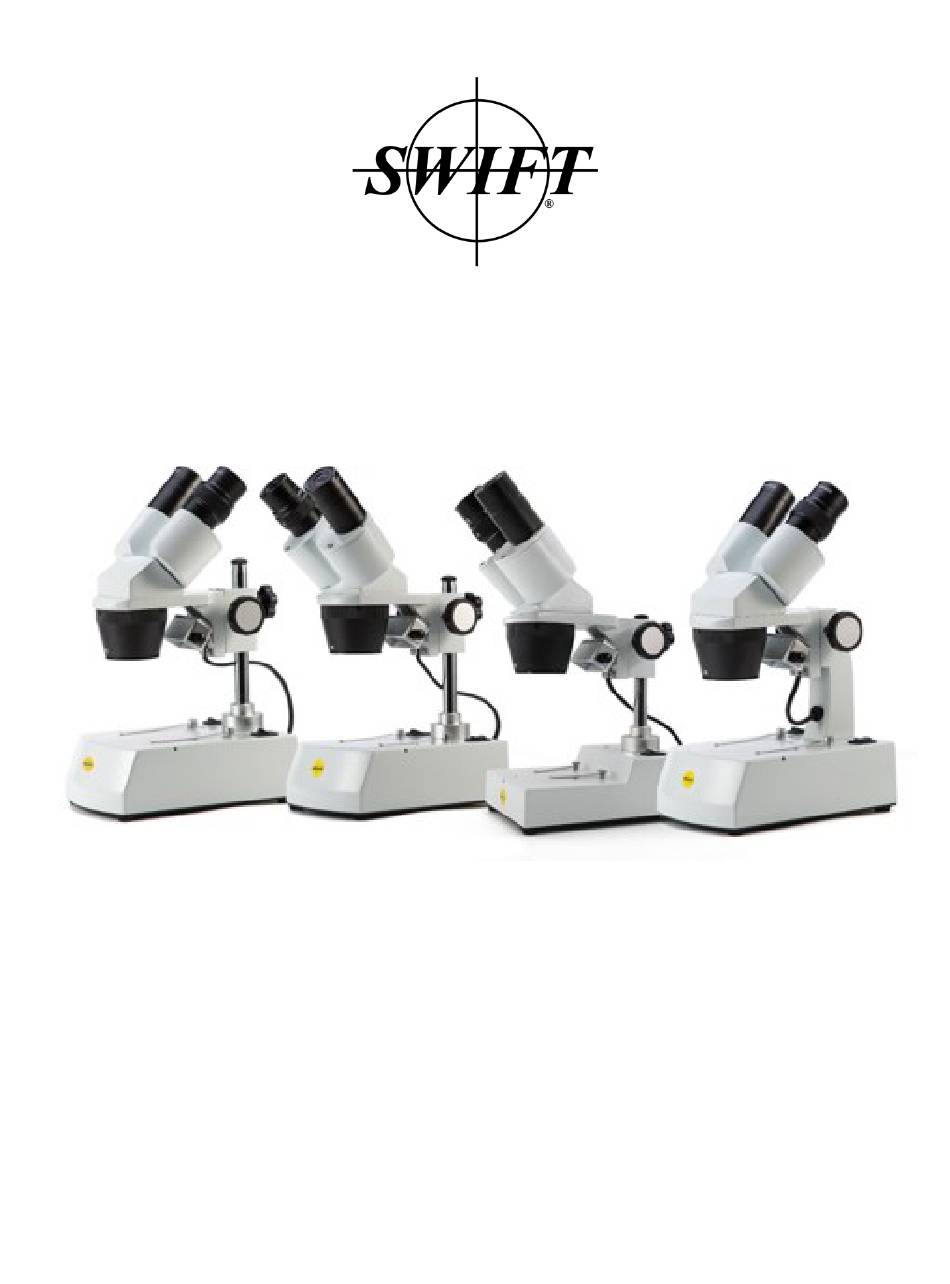

- Page 1 User Guide: the S30 Stereo Microscope Series...
-
Page 2: Table Of Contents
Welcome to your Swift S30 Series microscope! Whether you are a seasoned professional or a beginner hobbyist, Swift has the perfect microscope for you. This guide will introduce you to the components of your new microscope and help you begin using it. For more information about our microscopes, software downloads, product manuals, or customer service requests, please visit www.swiftoptical.com. -
Page 3: Specifications
I. Specifications Model S303 S304 S308 Backward-facing Forward-facing Backward-facing Observation tube Binocular Binocular Binocular Inclination 45° inclined Interpupillary 55-75 mm distance WF10X/20mm, standard Eyepieces 20X/10mm as optional add-ons Diopter On left tube, +/-5 adjustment Objectives 1X, 3X 2X, 4X 2X, 4X Working distance 57mm Focusing travel... -
Page 4: Parts Of The Microscope
II. Parts of the microscope S303 with pole arm and transmitted light stand (1) Eyepiece (2) Diopter adjustment (3) Backward-facing Binocular head (4) 1X/3X objectives turret (5) Fastening knob (6) Focusing knob (7) Incident light (8) Power switch (9) Incident/Transmitted lights switch (10) Stage clips (11) Stage plate (12) Pole type transmitted light stand... - Page 5 S304 with pole arm and plain stand (1) Eyepiece (2) Diopter adjustment (3) Forward-facing Binocular head (4) 2X/4X objectives turret (5) Fastening knob (6) Focusing knob (7) Incident light (8) Power switch (9) Stage clips (10) Stage plate (11) Pole type plain stand S308 with fixed arm and transmitted light stand (1) Eyepiece (2) Diopter adjustment...
-
Page 6: Assembling The Microscope
III. Assembling the microscope The components for the microscope are shipped detached for protection. Open the styrofoam packing with care and do not leave any components attached to the packing being removed. Do not discard any of the packing materials until all of the components have been identified. -
Page 7: Troubleshooting
Remove the eyepieces when not in use, and place covers on the eyepiece holders. Repair Do not attempt repairs on your own, particularly on the optical parts. Contact a Swift Optical representative through our customer service email or phone line with any issues. -
Page 8: Warranty Information And Customer Support
VII. Warranty information and customer support Our microscopes are manufactured to meet ISO 9001 standards. Swift warranties are as follows: ● Five (5) Year Warranty for Microscopes: Microscopes come with a five (5) year warranty against manufacturing defects. -
Page 9: Manual And Software Downloads
All warranties start from the original date of purchase. Swift provides the repair or replacement of warrantied parts for free, including labor, during the warranty period. Proof of original purchase is required. Buyers are responsible for shipping to and from our warehouse for warranty services.
