Summary of Contents for Swift SW50

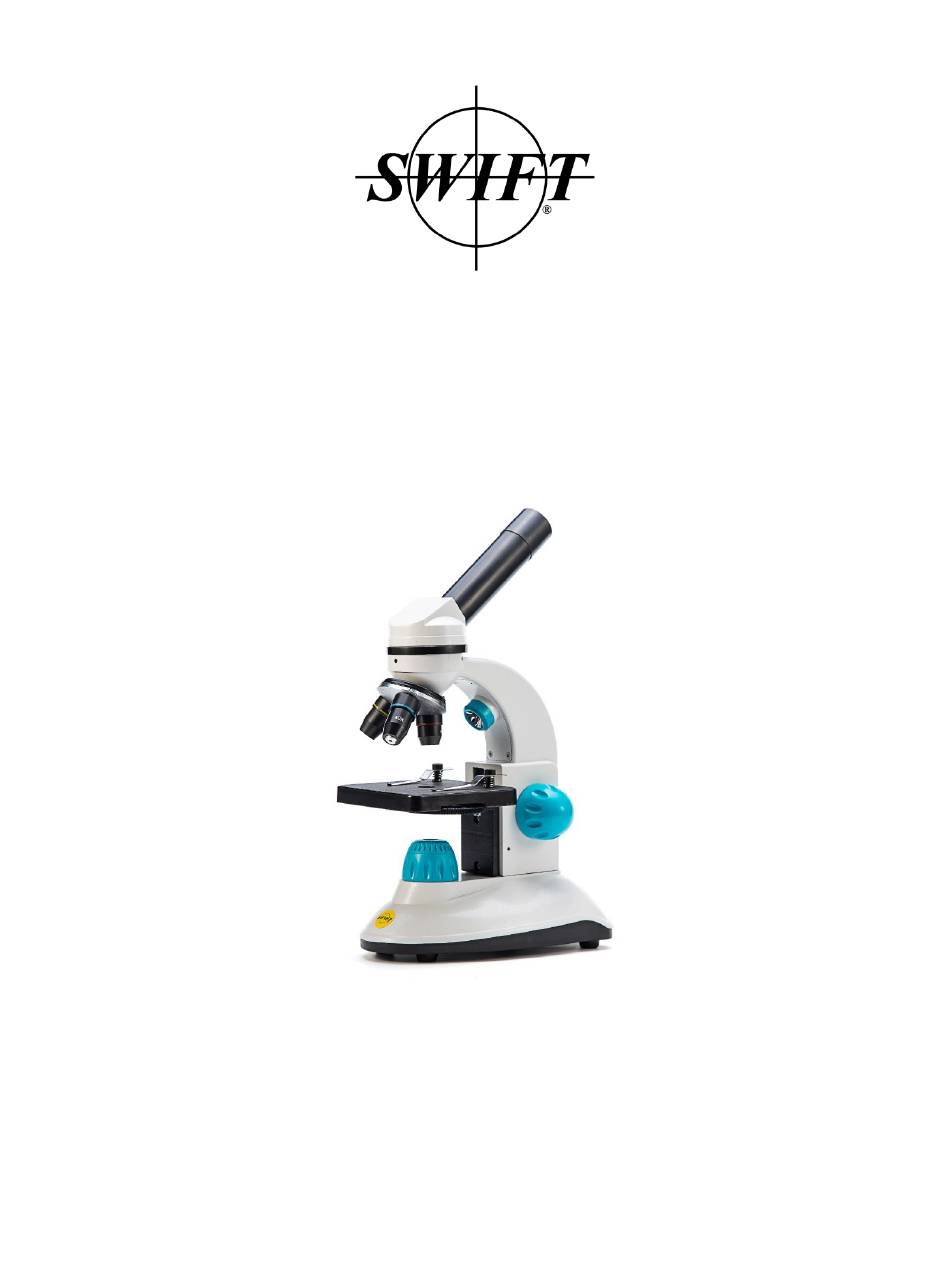

- Page 1 User Guide: SW50...
-
Page 2: Table Of Contents

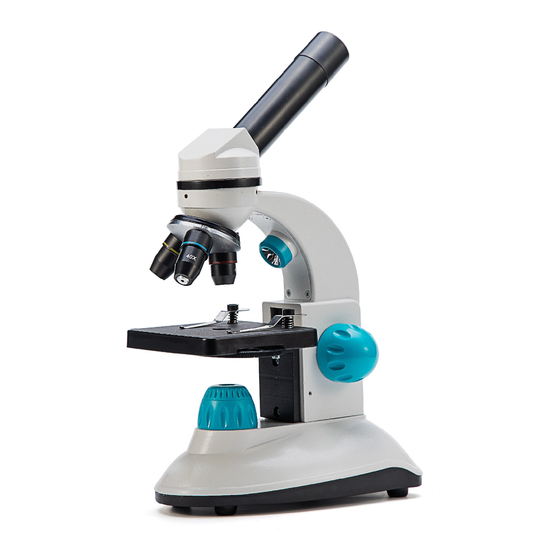

Welcome to your Swift SW50 microscope! Whether you are a seasoned professional or a beginner hobbyist, Swift has the perfect microscope for you. This guide will introduce you to the components of your new microscope and help you begin using it. For more information about our microscopes, software downloads, product manuals, or customer service requests, please visit www.swiftoptical.com. -
Page 3: Specifications
I. Specifications Model SW50 Observation tube Monocular, 360° rotatable Inclination 38° Eyepiece Wide-field 10X Nosepiece Triple revolving Objectives 4X, 10X, and 40X Magnifications 40X, 100X, and 400X Stage Plain stage with slide clips Stage size 90mmx90mm Condenser Single lens condenser with 6-hole disc diaphragm... -
Page 4: Parts Of The Microscope
II. Parts of the microscope III. Assembly and set up Carefully remove the microscope from the box and set it on a sturdy, flat surface. If the microscope was shipped with eyepiece unassembled, remove the plastic cover from the eyepiece holder on the microscope's head, then place an eyepiece into the holder. Insert the included batteries into the battery compartment. -
Page 5: Caring For Your Microscope
If you have a problem, you may be able to correct it yourself. Here are some common issues and easy solutions you can try before calling customer support for service. *Caution: Never disassemble the electrical, mechanical, or optical components. This servicing should only be done by a Swift technician. - Page 6 Issue Possible cause Solution Visual field is uneven, or Nosepiece is not locked in Turn nosepiece until you image is dark at the edges place to center the hear a click to center the objective lens objective lens Slide is not centered over Center the slide over the the bulb, leaving part of the bulb...
-
Page 7: Warranty Information And Customer Support
Power adapter is not fully Check to make sure that plugged in the adapter is fully connected to wall socket and to the microscope VII. Warranty information and customer support Our microscopes are manufactured to meet ISO 9001 standards. Swift warranties are as follows:... - Page 8 ● One (1) Year Warranty for Electrical and Video components. Does not cover light bulbs, batteries, fuses, or electrical cords. All warranties start from the original date of purchase. Swift provides the repair or replacement of warrantied parts for free, including labor, during the warranty period.
