INada100_US
A90-191
ASSEMBLY INSTRUCTION

Advertisement

loading
Need help?

Need help?

Do you have a question about the A90-191 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Soozier A90-191

Summary of Contents for Soozier A90-191

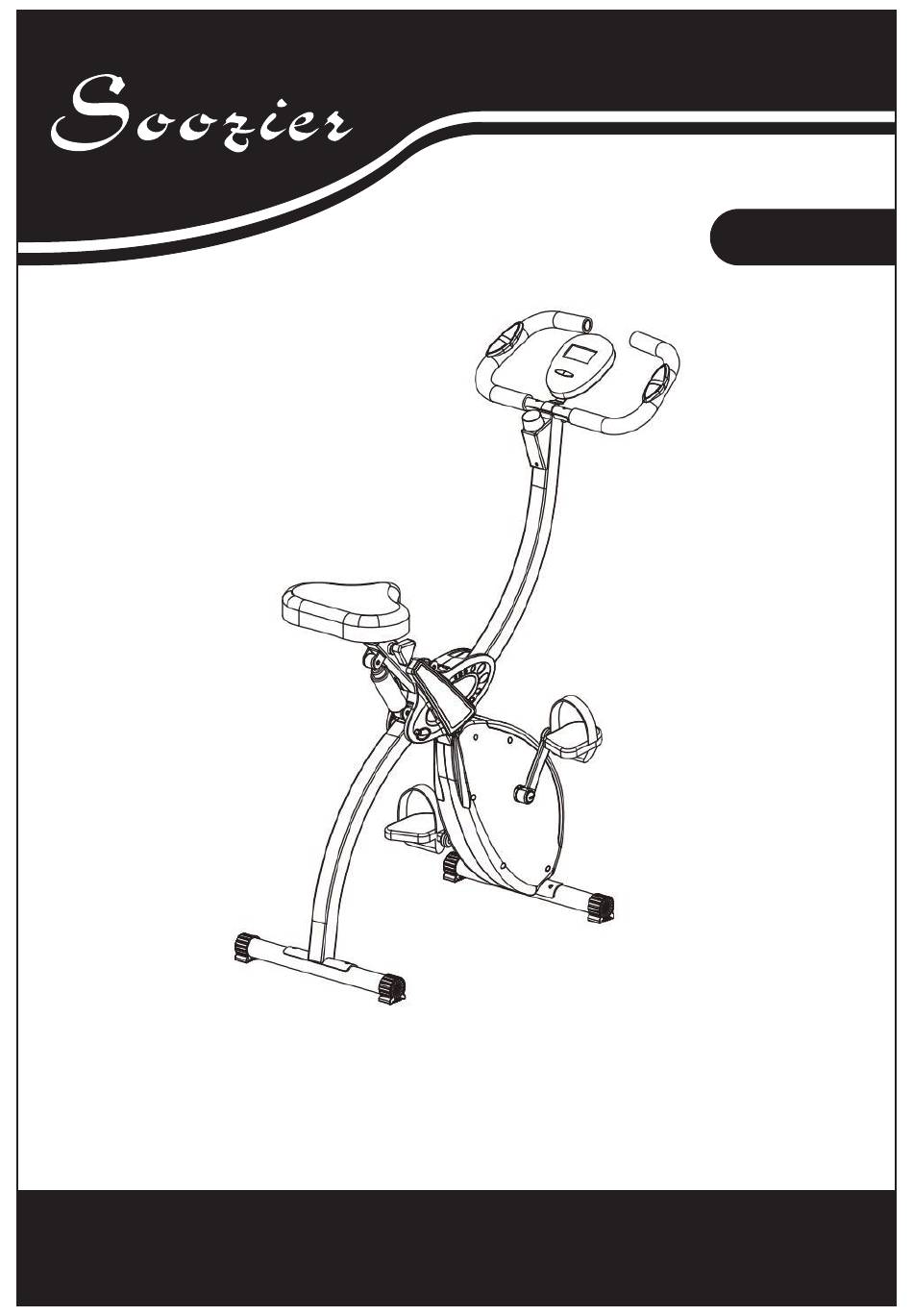

  • Page 1 INada100_US A90-191 ASSEMBLY INSTRUCTION...
  • Page 2 Pl e a se r e a d th e m a n u a l c a re fu l l y a n d u se i t ta n g e n tl y a cco rd i n g to th e i n str u cti o n s. Afte r re a d i n g , pl e a se k e e p i t in a s a fe p l a ce fo r co n fir m a ti o n a t an y ti me .
  • Page 3 ① USER'S MANUAL Thank you for purchasing the new smart active oxygen exercise bike. Please read the manual carefully before using it, and confirm that the purchased items are complete without any damage during transportation. First, safety precautions ● Be sure to read and follow the safety precautions Caveat Be sure to observe the physical discomfort when using this product, stop using it immediately, consult a doctor, and follow the doctor's instructions before using.

  • Page 4: Appearance Illustration

    Warning Do not disassemble Do not modify or modify this product yourself to avoid abnormal use or accident. this product. When using this product, please make sure that the screws, pins and knobs Confirmation have been positioned to reduce the risk of accidents. Do not use the product without the knob fixed in place.
  • Page 5 ② D etailsofaccessories NUMBER NAME QUANTITY NUMBER NAME QUANTITY M8 nut Digital watch Hydraulic cylinder Armrest Right foot tube Hexagon socket screw Spring washer Left foot tube Curved gasket M8 cover nut Rear leg tube Elbow Front foot tube Adjustment knob Bolt (short) Round head square neck screws Bolt (long)
  • Page 6 ③ The Assembly Method Please check zero before assembly. Accessories Description All spare parts are not missing. 8: Bolt (short) 9: Bolt (long) Step one: unfold the main frame Aftertakingouttheproductandunfoldingthemainframe,fix the#8and#14jacksasshowninthefigure.,Insertthe#9 pinintothefixedmainframeasshown. Warning: Do not fix the bolt under the bolt position, and disassemblethepartstoavoidaccidentscausedbyfalling.
  • Page 7 20 :Round head square neck screws 17: M8 cover nut 5: Curved gasket Step two: assemble the tripod Use arc washer # 5, semi-circular head square neck screw # 20 and M8 cap nut to connect and lock the rear foot tube # 18 to the main frame. Use arc washer # 5, semi-circular head square neck screw # 20 and M8 cover nut to connect and lock front foot tube # 19 to the main frame.
  • Page 8 7: Adjustment knob Step four: seat cushion fixing Insert seat cushion group # 11 into the main pipe, and then insert (# 7adjust knob) into the hole to fix and lock. 3: Hexagon socket screw 4: Spring washer 5: Curved gasket Step five: assemble the armrest Use arc washer # 5, hexagon socket screw # 3 and Φ8 spring washer # to fix armrest # 2 on the elbow # 6 below the armrest.
  • Page 9 Step 6.Assemble the foot pedal Install (# 15left foot pedal (L)) on the left side of the main frame and (# 16 right foot pedal (R)) on the right side of the main frame. Note: When the foot pedal is assembled, the letters L is for the left or the letter R for the right.
  • Page 10 ④ Fourth, electronic watch function parameters Time ……………………………………………… 00: 00-99: 59 Speed … ……………………………………… 0.0-99.9KM / H （ML / H） Mileage …………………………………… 0.00-99.99KM （ML） Calories ……………………………………………… 0-999.9KCAL Total mileage ………………………………………… 0-9999KM （ML） Heartbeat ………………………………………………… 40-240BPM Scan …………………… Automatically display various data every 4 seconds Key function: MODE: This key is used to select or lock a function.
  • Page 11 Function Description: 1. Time TIME: Press the mode button, let the arrow point to the time TIME position, and record the time from the start to the stop of the movement 2. Speed SPEED: Press the mode button and let the arrow point to the speed SPEED position.
  • Page 12 ⑤ Folding Storage / Maintenance And Maintenance Folding main frame Remove the mounting on the main frame (# 9 latch (long)), remove the fixed latch (short) # 8, when removing the latch (short) # 8, put the hydraulic cylinder # 14 in place, as shown Fold and fold, please keep the product fixed after folding, it is recommended to place it horizontally to avoid...

  • Page 13: Maintenance / Inspection

    Maintenance 1. Dilute with neutral detergent and water, moisten it with a rag and carefully wipe the oil, then wipe with a dry cloth 2. Do not use solvents such as alkaline cleaners, diluted solvents, volatile oils, etc. Maintenance / inspection 1.
