Soozier A90-311 Assembly Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
INapa017_CA
A90-311
* Maximum user weight is 130 kg.
*Le poids maximal de l'utilisateur est de 130 kg.
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

Advertisement

loading
Need help?

Need help?

Do you have a question about the A90-311 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Soozier A90-311

Summary of Contents for Soozier A90-311

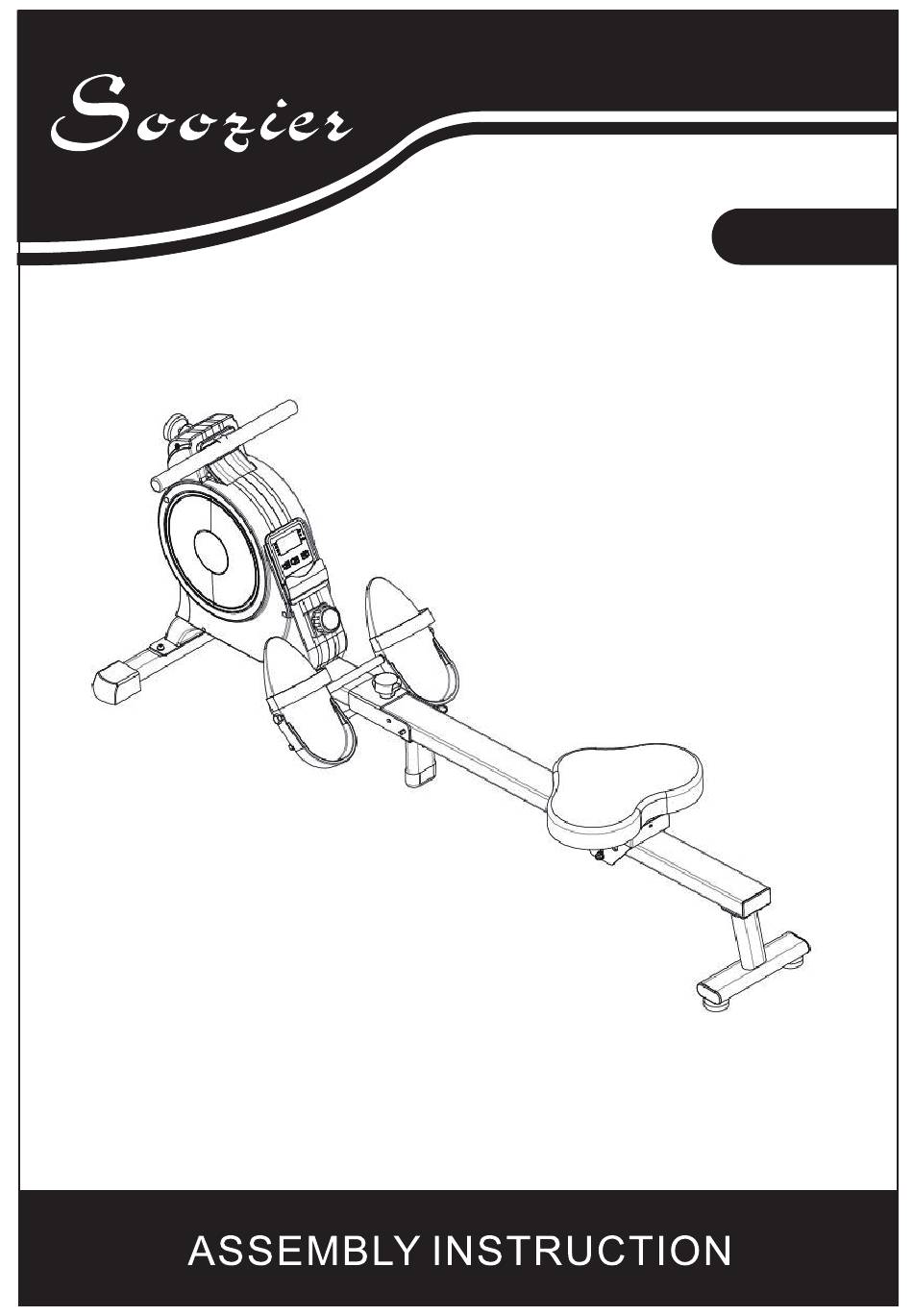

  • Page 1 INapa017_CA A90-311 * Maximum user weight is 130 kg. *Le poids maximal de l'utilisateur est de 130 kg. IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY...

  • Page 5: Exploded Diagram

    EXPLODED DIAGRAM HARDWARE PACKAGE...
  • Page 7 Description Spec. Description Spec. M10*1*H8*S14 Screw ST4.2*20*Φ8 Foot Leveler M8*35 PVC Screw ST4.2*16*Φ8 Shipping Tube Connecting Spring Washer Φ8 Board Wave Washer d10*Φ15*0.3 Knob PP+Q235 C-clip Bolt M8*102 C-clip Pull Pin ф8*100*105 Allen Wrench End cap Spanner S13-14-15-17-19...
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 1: Remove 2 Screws (No. 55) from Main Frame (No. 1) with Allen Wrench (No. 74), then remove 2 Washers (No. 60) and Shipping Tube (No. 78). NOTE: Don’t discard 2 Screws (No. 55) and 2 Washers (No. 60), because in Step 2, you need to use them again.
  • Page 9 STEP 3: Attach Fixing Axle for Pedal (No. 47) into the bottom hole of Main Frame (No. 1) using 1 Screw (No. 54). Secure and tighten with Spanner (No. 75). Attach 2 Bolts (No. 46) into the upper hole of Main Frame (No. 1) through Pedals (No.
  • Page 10 STEP 5: Attach the Sliding Rail (No. 5) to Main Frame (No. 1) using Bolt (No. 81), 2 Washers (No. 60), and Nut (No. 64). Tighten and secure with Spanner (No. 75) and Allen Wrench (No. 74). Next, attach the top of the Sliding Rail (No.

  • Page 11: Adjustments Guide

    ADJUSTMENTS GUIDE CAUTION! Moving parts, such as the seat, can crush and cut. Keep hands clear of the sliding rail during use! ADJUSTING THE RESISTANCE Rotate the Tension Control Knob (No. 11) clockwise to increase the level of resistance. Rotate the Tension Control Knob (No.
  • Page 12 FOLDING THE ROWER CAUTION! Move with caution when vertically fold Sliding Rail (No. 5) as Figure A your head may touch the Rear Support (No. 14). Figure B Figure C When not in use, you can save space by folding the Sliding Rail (No. 5). Pull out the Pull Pin (No.
  • Page 13 REPLACING THE BATTERIES Two AA batteries are included in Computer (No. 32). To replace the batteries, remove Computer (No. 32) from Main Frame (No. 1), and disconnect the Sensor Wire (No. 34) and the wire of Computer (No. 32). Replace both batteries. Do not mix battery types and do not mix old and new batteries.

  • Page 14: Exercise Computer

    EXERCISE COMPUTER Our computerized display console on the Rowing Machine allows the user to tailor a personalized workout by monitoring their progress. During a workout, the display console will alternately and repeatedly display your Time, Count, Calories Burned, Total Count, Distance, and Scan (all of the above).
  • Page 15 LIRE ATTENTIVEMENT ! Veuillez conserver ce manuel dans un endroit sûr pour le consulter facilement. 1. Il est important de lire l'intégralité de ce manuel avant d'assembler et d'utiliser l'équipement. Une utilisation sûre et efficace ne peut être obtenue que si l'équipement est assemblé, entretenu et utilisé...
