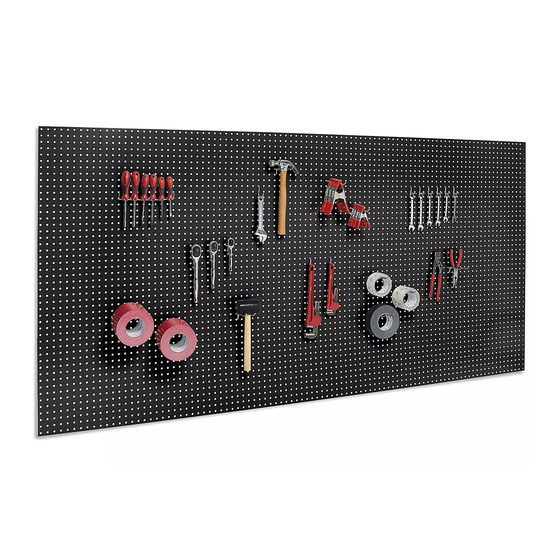

Steel pegboard
Hide thumbs
1
2
3
4
5
6

Advertisement

Available languages

Available languages

Quick Links

Download this manual
H-6450
STEEL PEGBOARD
• ALWAYS wear safety glasses when using any
power tool.
• ALWAYS use hearing protection when using loud
equipment.
• DO NOT sit, climb, hang or step on hooks or holders.
SUGGESTED TOOLS
• 24" Level
• Tape Measure
• Pencil
• Chalk Line
• Drill with #2 Phillips Screwdriver Attachment
SUPPLIES
#6 wood screws, 1½" to 2", with anchors.
PAGE 1 OF 6
1-800-295-5510
uline.com
SAFETY
INFORMATION
• DO NOT overload hooks or holders.
• DO NOT try to install pegboard panels by yourself.
Use two or more people.
GENERAL
1.
Install over studs, plaster or drywall.
2. Snap chalk line at desired height on wall.
NOTE: Screws may not always anchor into a
stud.
3. Mark all holes on wall before hanging pegboard.
NOTE: If hanging multiple pegboards,
mark ALL holes first.
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
0321 IH-6450
