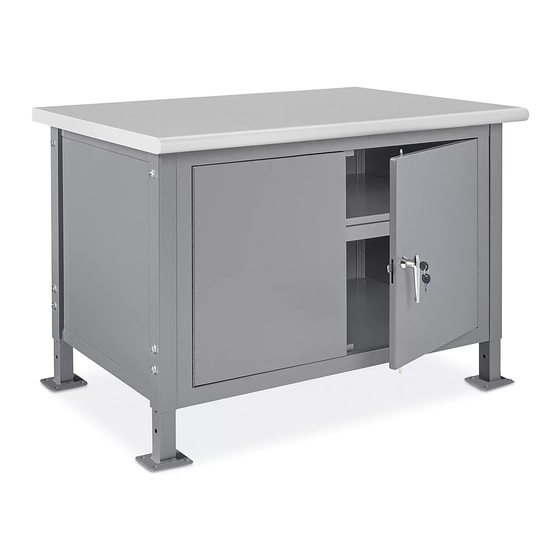

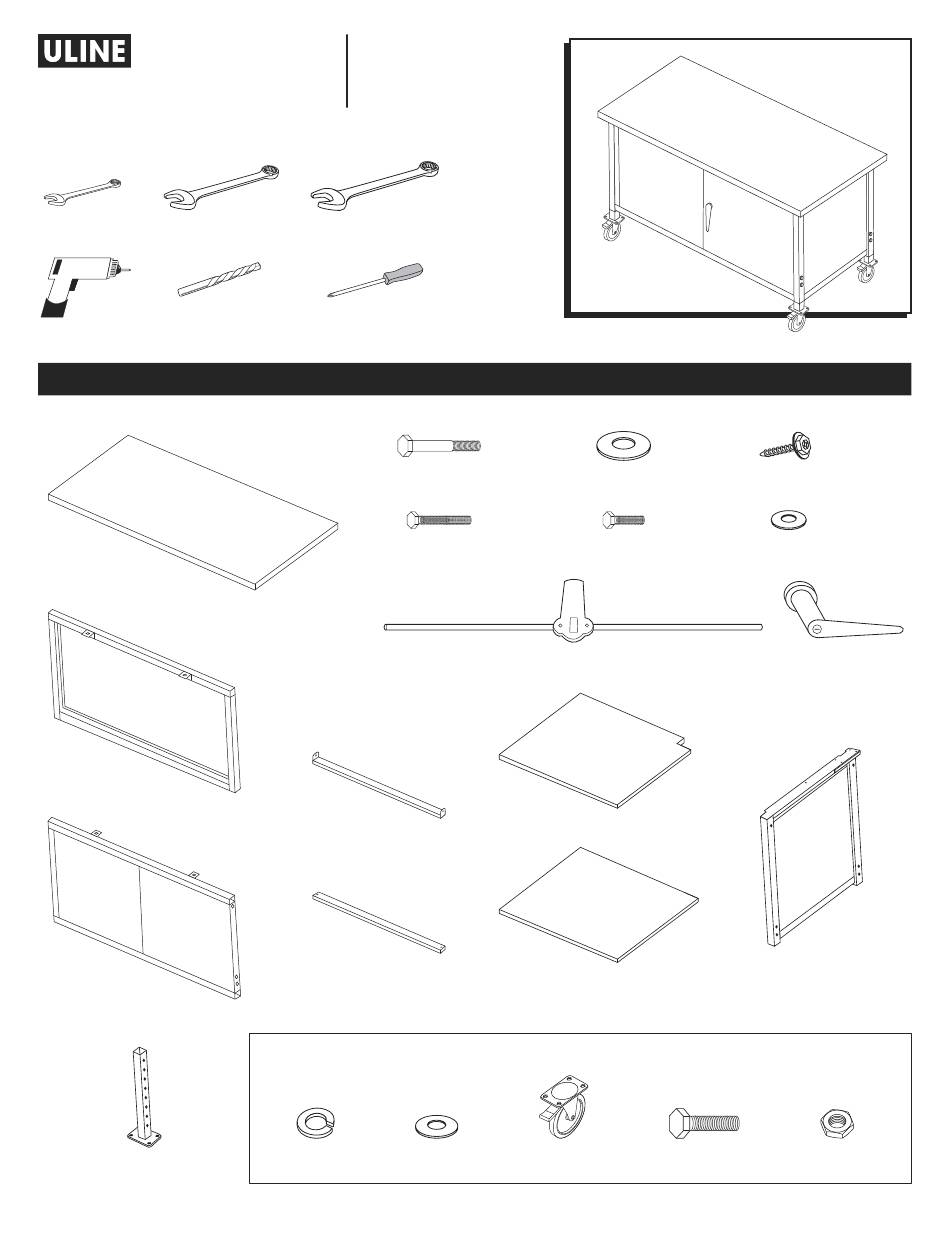

CABINET WORKBENCH
TOOLS NEEDED
10 mm Wrench
16 mm Wrench
Drill
3/16" Drill Bit
Tabletop x 1
Back Panel x 1
Front Panel x 1
Feet x 4
PAGE 1 OF 9
1-800-295-5510
uline.com
17 mm Wrench
Phillips Screwdriver
PARTS
Long Bolt x 12
M6 x 30 Hex Bolt x 2
Back Panel
Shelf Mount x 1
Front Panel
Shelf Mount x 1
FOR MOBILE WORKBENCHES ONLY
Medium Lock
Medium Flat
Washer x 16
Washer x 16
Pour le français, consulter les pages 7-9.
Large Flat
Washer x 12
M6 x 15 Hex Bolt x 2
Lock Bar x 1
Center Shelf Panel x 2
Bottom Shelf Panel x 2
Caster x 4
Short Bolt x 16
Para Español, vea páginas 4-6.
Wood Screw x 8
Small Flat
Washer x 4
Door Handle
with Lock x 1
Side Panel x 2
Medium Nut x 16
0322 IH-6993
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for U-Line H-6993-LAM
Summary of Contents for U-Line H-6993-LAM
- Page 1 Para Español, vea páginas 4-6. Pour le français, consulter les pages 7-9. 1-800-295-5510 uline.com CABINET WORKBENCH TOOLS NEEDED 10 mm Wrench 16 mm Wrench 17 mm Wrench Drill 3/16" Drill Bit Phillips Screwdriver PARTS Long Bolt x 12 Large Flat Wood Screw x 8 Washer x 12 M6 x 15 Hex Bolt x 2...
- Page 2 ASSEMBLY Place front, back and side panels upright. Align all 4. For Mobile Workbenches Only: Attach casters with four panels. (See Figure 1) short bolts, four medium flat washers, four medium lock washers and four medium nuts using a 17 mm wrench. NOTE: Panels will be upside down for first part Put casters into locking position.
- Page 3 ASSEMBLY CONTINUED 9. Fasten tabletop to mounting plates with four wood 11. Insert two bottom shelf panels. They should sit on the screws using a Phillips screwdriver, drill or 10 mm lower shelf lip. (See Figure 6) wrench. 12. Insert the center shelf panels with the cut sections facing the back left and back right corners of the NOTE: For additional security, attach four remaining wood screws to side panel mounting plate.
-
Page 4: Herramientas Necesarias
800-295-5510 uline.mx MESA DE TRABAJO CON GABINETE HERRAMIENTAS NECESARIAS Llave de 10 mm Llave de 16 mm Llave de 17 mm Taladro Broca de 3/16" Desarmador de Cruz PARTES 12 Pernos Largos 12 Rondanas 8 Tornillos para Madera Planas Grandes 2 Pernos 2 Pernos 4 Rondanas... - Page 5 ENSAMBLE Pare los paneles delanteros, posteriores y laterales. 4. Solo para Mesas de Trabajo Móviles: Fije las ruedas Alinee todos los paneles. (Vea Diagrama 1) con cuatro pernos cortos, cuatro rondanas planas medianas y cuatro tuercas medianas utilizando una NOTA: Los paneles estarán al revés la primera llave de 17 mm.
- Page 6 CONTINUACIÓN DE ENSAMBLE 9. Asegure la cubierta a las placas de instalación con 11. Inserte dos paneles de repisa inferior. Deben seis tornillos para madera utilizando un desarmador descansar sobre el borde de la repisa inferior. de cruz, taladro o llave de 10 mm. (Vea Diagrama 6) NOTA: Para mayor seguridad, coloque los 12.
-
Page 7: Outils Requis
1-800-295-5510 uline.ca ÉTABLI À ARMOIRE OUTILS REQUIS Clé de 10 mm Clé de 16 mm Clé de 17 mm (9/16 po) (9/16 po) (9/16 po) Perceuse Mèche de perceuse Tournevis cruciforme de 3/16 po PIÈCES Long boulon x 12 Grande rondelle Vis à... -
Page 8: Montage
MONTAGE Placez les panneaux avant, arrière et latéraux à la 4. Pour établis mobiles seulement : Fixez les roulettes verticale. Alignez tous les panneaux. (Voir Figure 1) à l'aide d'une clé de 17 mm en utilisant quatre boulons courts, quatre rondelles plates de taille REMARQUE : Les panneaux sont à... - Page 9 MONTAGE SUITE 9. Fixez la surface de travail aux plaques de fixation en 11. Insérez les deux panneaux de tablette inférieure. utilisant quatre vis à bois et un tournevis cruciforme, Ils devraient reposer sur le rebord de la tablette une perceuse ou une clé de 10 mm. inférieure.
