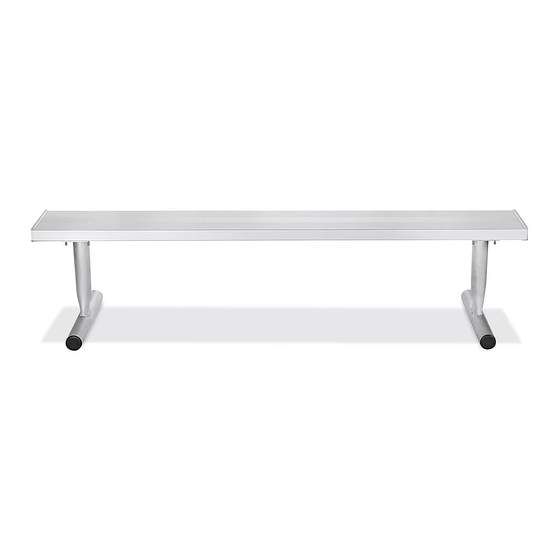

U-Line H-3746 Assembly Instructions

H-3746
ALUMINUM
BACKLESS BENCH

TOOLS NEEDED

Power Drill
Two Person Assembly
Recommended
Aluminum Seat Plank x 1
End Cap for Plank x 2

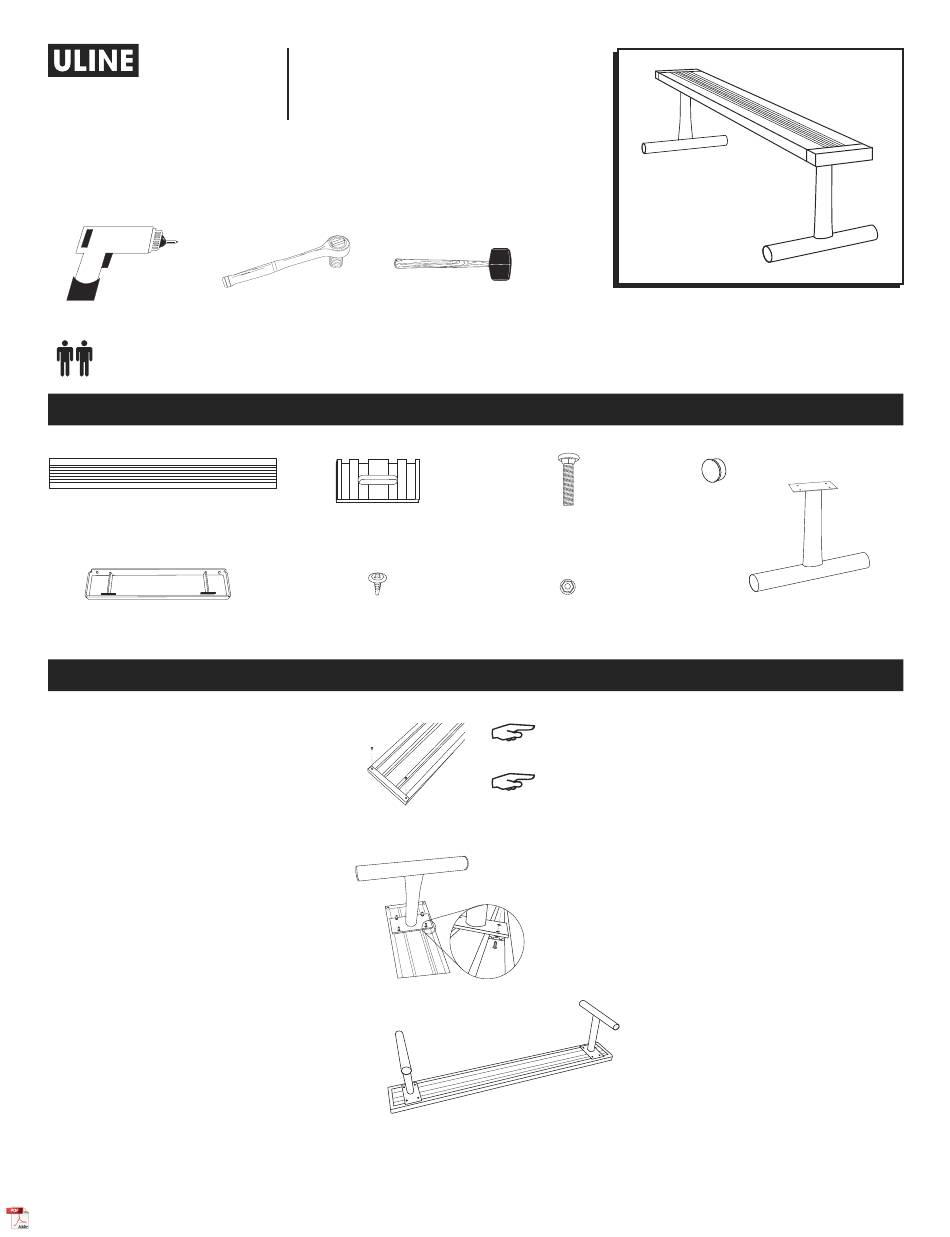

1. Lay the seat plank upside down on
a flat surface. Slide the end caps
onto each end of the plank. The
pre-drilled holes of the end cap
should be facing up. Use power
drill and two self-tapping screws to
secure each end cap onto each
end of the plank. (See Figure 1)
2. Place one leg frame at a time 6"
from the end of the seat plank.
(See Figure 2)
3. Loosely attach using four hold down
clips, four 5/16" flange nuts and four
5/16" carriage bolts per leg frame.
4. Push the two plastic round caps into
each leg frame using a rubber mallet.
5. Flip the bench right side up. Make sure
legs are evenly aligned to the edges
and the bench is level. Tighten the bolts
using a socket wrench. (See Figure 3)
PAGE 1 OF 3
1-800-295-5510
uline.com
Socket Wrench Rubber Mallet
Hold Down Clip x 8
3/16" Self-Tapping Screw x 4
ASSEMBLY INSTRUCTIONS
Figure 1
Figure 2

PARTS

5/16" x 1½"
Carriage Bolt x 8
5/16" Flange Nut x 8
NOTE: H-3748 mounting hardware sold
separately.
NOTE: If the material is to be stored in a
location where moisture is a possibility, the
planks should be unbundled and stacked so
that surfaces are not touching. This will prevent
galvanic reaction from occurring or stains
from paper or cardboard packaging should
the planks get wet. Once the bench has been
assembled, the problem no longer exists.
Figure 3
Para Español, vea página 2.
Pour le français, consulter la page 3.
Plastic
Round Cap x 4
Galvanized Leg Frame x 2
0721 IH-3746
