H-9638, H-9639
H-10527, H-10528

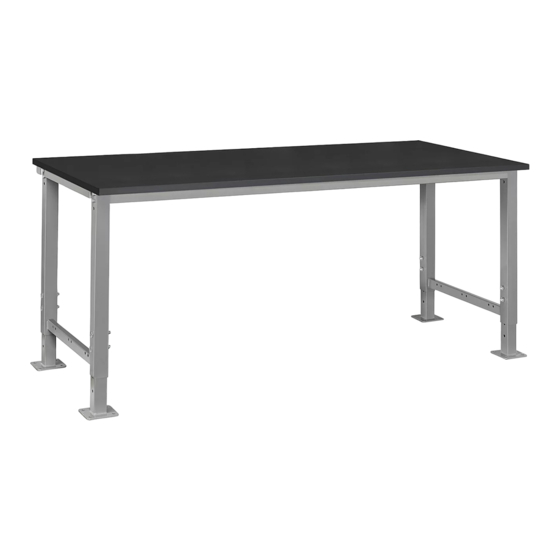

LAB WORKBENCH
TOOLS NEEDED
Drill
Flathead
Drill Bit
1
2
CAUTION! Some parts may have sharp edges.
Care must be taken when handling various
pieces to avoid injury. For your safety, wear a
pair of work gloves when assembling.
ONLY USE BLUNT-END SCREWS TO ATTACH TABLETOP TO FRAME
PAGE 1 OF 2
1-800-295-5510
uline.com
13 mm Wrench
Flathead
Screwdriver
17 mm Wrench
4
3
CAUTION! Do not use pointed-end screws with steel frame packaging.
Pointed-end screws will protrude through tabletop if used.
PARTS
PARTS
#
DESCRIPTION
1
Leg
2
Adjustable Foot
3
Frame Support Bar
4
Phenolic Table Top
Tabletop
#28 1/4-20 x 1/2"
Blunt-end Wood Screw x 28
NOTE: Hardware packs are included in tabletop
and frame packaging. You may receive more
hardware than needed.
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
60 AND 72" QTY.
2
4
2
1
Hardware Kits
Steel Frame
M10 Nut x 8
M8 x 65 Hex Bolt x 8
M10 x 65 Hex Bolt x 8
1122 IH-9638
Advertisement
Table of Contents
Related Manuals for U-Line H-10527
Summary of Contents for U-Line H-10527
- Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. H-9638, H-9639 1-800-295-5510 H-10527, H-10528 uline.com LAB WORKBENCH TOOLS NEEDED 13 mm Wrench Drill Flathead Flathead Screwdriver Drill Bit 17 mm Wrench PARTS PARTS DESCRIPTION 60 AND 72" QTY.
- Page 2 ASSEMBLY LEGS AND FRAME ASSEMBLY TOP ASSEMBLY NOTE: Tabletop adds 3/4" to height. 1. To attach tabletop onto frame assembly, place tabletop on a smooth, non-marring surface with top Flip legs upside down. Place adjustable feet into side facing down. legs and slide to desired height.
- Page 3 H-9638, H-9639 800-295-5510 H-10527, H-10528 uline.mx MESA DE TRABAJO PARA LABORATORIOS HERRAMIENTAS NECESARIAS Desarmador Llave de 13 mm Taladro Broca Plana Plano Llave de 17 mm PARTES PARTES DESCRIPCIÓN CANT. PARA 60 Y 72" Pata Base Ajustable Barra de Soporte del Armazón Cubierta de Mesa Fenólica...
- Page 4 ENSAMBLE ENSAMBLE DE LAS PATAS Y EL ARMAZÓN ENSAMBLE DE LA CUBIERTA NOTA: La cubierta de mesa añade Para asegurar la cubierta al ensamble del armazón, 1.9 cm (3/4") a la altura. coloque la cubierta sobre una superficie plana que no deje marcas con el lado superior hacia abajo.
- Page 5 H-9638, H-9639 1-800-295-5510 H-10527, H-10528 uline.ca ÉTABLI DE LABORATOIRE OUTILS REQUIS Tournevis à tête Clé de 13 mm Perceuse Mèche de perceuse à plate Clé de 17 mm tête plate PIÈCES PIÈCES QTÉ POUR 60 ET DESCRIPTION 72 PO Pied Patte réglable...
- Page 6 MONTAGE MONTAGE DES PIEDS ET DU CADRE MONTAGE DE LA SURFACE REMARQUE : La surface de table ajoute 3/4 po Pour fixer la surface de table à l'ensemble du à la hauteur. cadre, placez la surface sur une surface lisse et non marquante, face vers le bas.
