Installation Guide
Contents
CE Installation Method Overview ..................... 2
above) ........................................................................ 3
low) ............................................................................ 4
Actuators ............................................................. 5
Periodic Maintenance ......................................... 6
Wiring Diagrams ....................................................... 7
Mode 6 PTC 230V .................................................... 7
Mode 5 PTC 24V ...................................................... 7
Mode 5-3P PTC 24V ................................................. 7
SPAN Damper Dimensional Data ....................... 8
Troubleshooting .................................................. 9
Notes .................................................................. 11
Actionair Span Installation Guide
Drawings
Please visit our website to download the installation
drawings, which are located on the relevant product
download section.
Applies to...

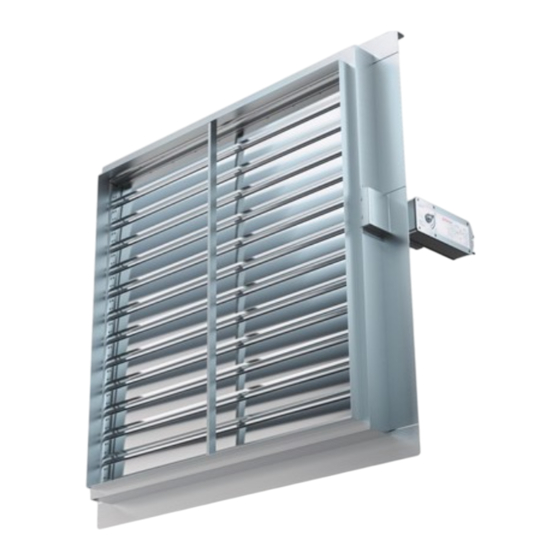

Actionair SmokeShield PTC
Health and safety
• This process must be undertaken by competent per-
• Standard site PPE should be used (minimum steel toe
• All waste materials should be collected and disposed of
• Actuators: All wiring should be carried out in accor-
sons. More than one person may be required to ensure
the safe handling of large dampers and other materi-
als. Use must be made of access equipment to ensure
unsafe practices are not used to approach walls or diffi-
cult access areas.
cap boots, hard hat); together with any protective
eyewear, gloves and masks, when drilling or cutting is
being undertaken. The latter should also be used when
handing the wall construction materials, as defined by
the material suppliers. If loud equipment is being used,
hearing protection should be used.
as defined by the relevant supplier.
dance with the wiring details provided by the IEE and
BS regulations and by a competent person. Care must
be taken when installing and inspecting dampers, as
they are likely to close without warning due to loss of
electrical power or a temperature rise in the ductwork.
This is their prime function. Do not insert any items,
fingers or limbs between the blades. Larger dampers
must be handled in accordance with current regula-
tions and good practice due to weight.

Advertisement

Table of Contents
loading

Related Manuals for Swegon Actionair SmokeShield PTC

Summary of Contents for Swegon Actionair SmokeShield PTC

  • Page 1: Table Of Contents

    ................ 3 Applies to... Horioztonal Damper Installation SPAN (access side be- low) ................4 Actionair SmokeShield PTC Actuators ............. 5 Periodic Maintenance ......... 6 Health and safety Wiring Diagrams ............7 • This process must be undertaken by competent per- Mode 6 PTC 230V ............

  • Page 2: Ce Installation Method Overview

    BS EN 12101-8 and drive open, drive closed without failsafe position, see our website for informa- tion on the Actionair SmokeCommand smoke con- trol damper documentation and suitable installation methods. Swegon reserves the right to alter specifications. 20220811 - L00009 (1.2)

  • Page 3: Horioztonal Damper Installation Span (Access Side Above)

    ED-AA-4. AAF12368 Horioztonal Damper Installation SPAN (access side above) Actionair SmokeShield PTC - [AA/F 12368] Installation Method 1. Bolt Unistrut (1.5mm minimum thickness) supports to 4 damper cleats and position damper in aperture with interface shroud. Do NOT fill above damper casing minimum M10 bolts.

  • Page 4: Horioztonal Damper Installation Span (Access Side Below)

     AAF12864 Horioztonal Damper Installation SPAN (access side below) Actionair SmokeShield PTC - [AA/F 12864] Installation Method 1. Bolt unistrut (1.5mm minimum thickness) supports to layer of approximately 25mm, all around the damper the 4 damper cleats as shown and position damper in casing, making sure all the gaps are fully sealed, as per aperture with minimum M10 bolts.

  • Page 5: Actuators

    14. The ETR cable must not cut to shorten or lengthen, and care must be taken not to damage it. Either will render the unit inoperable and void any warranties. This is due to a built in safety feature. 20220811 - L00009 (1.2) Swegon reserves the right to alter specifications.

  • Page 6: Periodic Maintenance

    • A comprehensive example of the maintenance pro- cedure is given in Annex D of the standard. Some Swegon reserves the right to alter specifications. 20220811 - L00009 (1.2)

  • Page 7: Wiring Diagrams

    (MUST BE FITTED TO DUCTING FOR DAMPER OPERATION) . (Connect 24V via a safety isolating transformer.) (SPRING BIASED TEST SWITCH) IP54 Rated. DIAGRAMS SHOWS ACTUATOR IN FULLY CLOSED STATE 20220811 - L00009 (1.2) Swegon reserves the right to alter specifications.

  • Page 8: Span Damper Dimensional Data

    FOR DUCT WITH WIDTHS AND HEIGHTS OF 200 - 1000MM         Cleat Dimensions           Swegon reserves the right to alter specifications. 20220811 - L00009 (1.2)

  • Page 9: Troubleshooting

    Foreign matter is impeding Check and remove blade movement Motor location pointer omit- Fit new pointer Mode not screwed down Check and tighten correctly 20220811 - L00009 (1.2) Swegon reserves the right to alter specifications.

  • Page 10: Inspection And Handover Check Sheet

    Inspection and handover check sheet This certificate applies only to Swegon Fire Dampers. The installer must complete this installation certificate when instal- ling fire and smoke dampers. A separate certificate must be completed for each individual fire and smoke damper.

  • Page 11: Notes

    ....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................20220811 - L00009 (1.2) Swegon reserves the right to alter specifications.
