Swegon actionair A60 Installation Manual

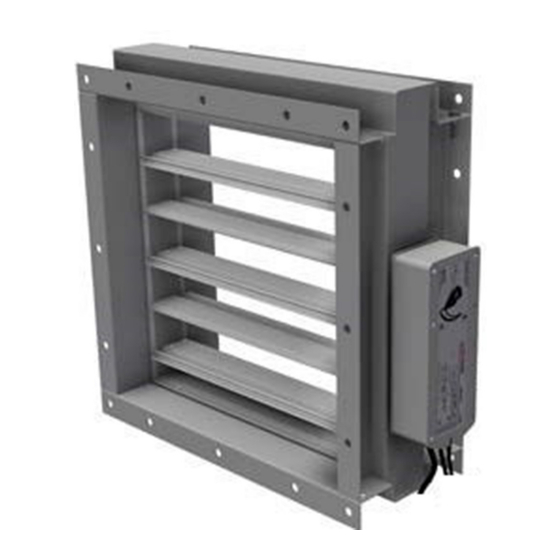

A60 Marine Fire Damper
With (Belimo) Actuator Installation Manual
Decription
The actionair Marine Fire Damper is tested and approved
for fitting to class A-0 A-15 A-30 A-60 divisions (bulkheads
and decks), when suitably insulated.
Tests, approvals and certification
• Lloyds Register Approved.
• DNV-GL Approved.
• ABS Approved
• USCG Approved.
• Transport Canada Approved.
• MED Marine Equipment Directive Compliant.
• Fire tested to the latest IMO FTP code & in compliance
with the international convention for the safety of life
at sea (SOLAS)
• Corrosion Tested - EN60068-2-52 severity 2 conditions
• Vibration Tested – EN60068-2-6 (5Hz to 350Hz @2g)
Health and Safety
Care must be taken when installing and inspecting
dampers, as they are likely to close without warning due
to loss of electrical power, or a temperature rise in the
ductwork. This is their prime function.
Do not introduce any items, fingers or limbs between the
blades.
Larger dampers are heavy and must be handled in
accordance with current local regulations and good
practice. All wiring should be carried out in accordance
with the wiring details provided, to the IEC regulations.
General Information
The actionair Marine Fire Damper is suitable for both
vertical and horizontal applications, with airflow in either
direction. The dampers tested to IMO fire test procedures
Code, Annex 1 Pt 3, are normally open, and fail-safe to the
closed position. The actionair Marine Fire Dampers are
supplied with the blades in the fully interlocked closed
position to avoid damage during transit and installation.
It is recommended that the dampers remain closed until
actual date of commissioning. All fire dampers are life
2923/YYYY
safety products and must be treated with care during
YYYY Denotes the
handling, storage and installation. Actionair Marine Fire
year the Wheel mark
Dampers are designed for applications in normal dry
is affixed to damper
filtered air systems and should be subjected to a planned
inspection programme. Installation - see below.
Dampers are supplied in two casing and blade material
options:
- 1/ Galvanised Steel casing and 430 Stainless steel blades.
- 2/ 316 Stainless steel casing and blades and drive.
Maintenance Testing
Routine testing - Monthly, or in accordance with Routine
testing maintenance programme, release and reset
damper (via control system or ETR test switch). Check
remote indication or visual check of mechanical pointer as
appropriate. Visually check blades for damper closed and
open positions.
Prove remote indication if applicable.
Routine Maintenance
•
•
•
Depending upon environmental conditions, each
damper will merit its own cleaning regime.
'Frequency of maintenance' should be determined by
collecting historical data from previous visits, and for
this reason, commence maintenance programmes.
Dampers in 'Dry Filtered Air' require very limited
maintenance.
