Swegon actionair SmokeCommand MCD Installation Manual

INSTALLATION GUIDE

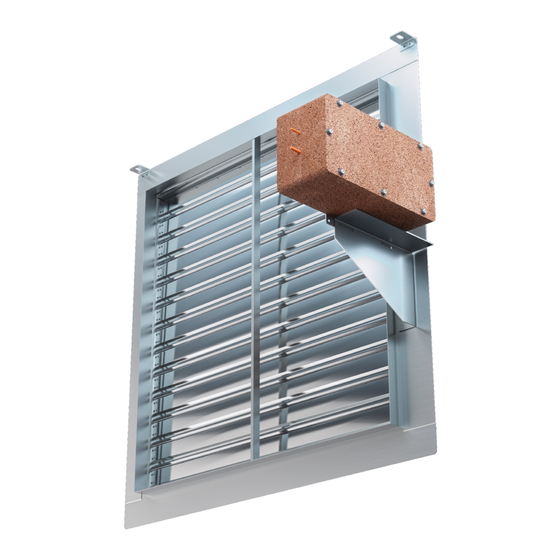

SmokeCommand MCD
Multi-compartment Smoke Control Damper
Contents
Health and safety .................................. 1
Installation Methods ............................... 2
DWFX-F Vertical Installation in Plasterboard Walls ............... 2
DWFX-F Vertical Installation in Masonry Walls ......................... 3
Fitting the actuator ............................................................................. 3
Commissioning and periodic maintenance ....4
Access for Inspection ......................................................................... 4
Maintenance Procedure .................................................................... 4
Frequency of Operational Checks ................................................. 4
Mode SCHM5-2P PTC and SCHM6-2P PTC ......4
Overview ................................................................................................ 4
Thermal Enclosure for Hot Modes ................................................. 4
Wiring Diagrams .................................... 5
Mode SCHM5-2P PTC ......................................................................... 5
Mode SCHM6-2P PTC ......................................................................... 5
Dimensions ........................................... 5
Inspection and handover check sheet ..........6

Health and safety

• This process must be undertaken by a competent
person. More than one person may be required to
ensure the safe handling of large dampers and other
materials. Use must be made of access equipment to
ensure unsafe practices are not used to approach walls
or difficult access areas.
• Standard site PPE should be used (minimum steel toe
cap boots, hard hat) together with any protective eye
wear, gloves and masks, when drilling or cutting is
being undertaken. The latter should also be used when
handling the wall construction materials, as defined by
the material suppliers. If loud equipment is being used,
hearing protection should be used.
• All waste materials should be collected and disposed of
as defined by the relevant supplier.
• Care must be taken when installing and inspecting
dampers.
• Do not introduce any items, fingers or limbs inside the
damper casing.
• Larger dampers are heavy and must be handled in
accordance with current local regulations and good
practice.
• All wiring should be carried out in accordance with the
wiring details provided, to the IEC regulations.
• Dampers are life safety products and must be treated
with care during handling, storage and installation.
• Actionair SmokeCommand MCD Dampers are designed
for applications in normal dry filtered air systems and
should be subjected to a planned inspection pro-
gramme.
