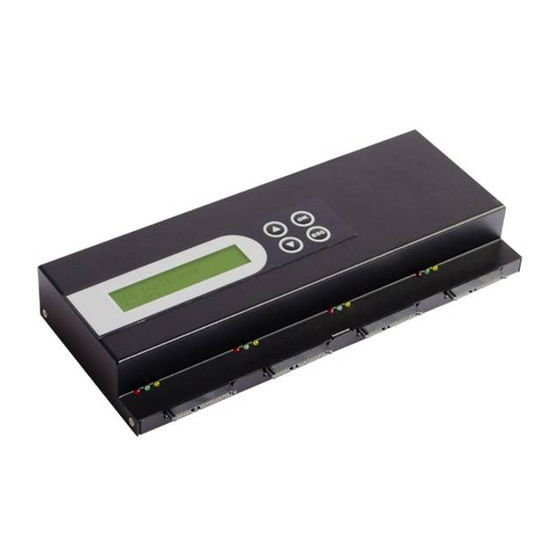

U-Reach Legend Series User Manual

Hdd duplicator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EN
English
HDD Duplicator
Legend Series
LE600
User Guide V2.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Legend Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for U-Reach Legend Series

Summary of Contents for U-Reach Legend Series

  • Page 1 English HDD Duplicator Legend Series LE600 User Guide V2.1...

  • Page 2: Disclaimer Of Warranties

    Disclaimer of Warranties Disclaimer of Warranties All duplicators are made specifically for data backup with legal authorities from copyright owners. Any unauthorized action of copyright is strictly prohibited, and manufacturer disclaims all warranties or representations of illegal actions by users. Manufacturer also disclaims any liability for any of losses or damages due to not be able to perform its undertakings or provide any of the services attributable to any events or circumstances beyond our control.

  • Page 3: Important Notice

    Before you start Important Notice ● Read the complete operation instruction carefully contributes to better operation. ● Make sure the source device is correct and workable. ● To guarantee data consistency, strongly suggest the capacity of source and targets should be the same. ●...

  • Page 4: Table Of Contents

    6.5 Restore Default 1. Introduction 1.1 Features 4 Specification 1.2 Product Overview Specification A. System Overview B. LCD Configuration C. Free-Chained Legend Series 7 1.3 Optional Accessories 2 Function Table Function Table 3 Function Introduction 1. Copy 2. Compare 3. Copy+Compare 4.

  • Page 5: Introduction

    1 Introduction 1. Introduction 1-1. Features ● High speed up to 3.9GB/min. for Legend 600 series. ● "Free-Chain" technology makes production more efficient as more duplicators are hooked up! By a simple connection, many 3-target HDD duplicator duplicators can become one 119-target duplicator at maximum. ●...

  • Page 6: Product Overview

    1 Introduction 1-2. Product Overview A. System Overview Front Side Socket Red : Fail Green : Pass Yellow : Powering Back Side Input Power Supply Power Switch Output B. LCD Configuration Number of target HDD Forward Function Total size Confirm/OK Cancel/Back Time(mm:ss) Copy progress %...

  • Page 7: Free-Chained Legend Series

    C. Free-Chained Legend Series Output Input Free-Chain Cable Users can use free-chain to connect Legend Series. The maximum connected volume is thirty, which will become 1 to 119 targets. 1-3. Optional Accessories 2.5" to 3.5" IDE Adapter CF Card to SATA Adapter...

  • Page 8: Function Table

    2 Function Table Function Description To copy source HDD to multiple target HDDs. Refer to function 6.Setup for 3 different copy 1. Copy mode selection. 2. Compare To compare data bit for bit between source and copied HDDs. It makes copy first and then compare copied HDD with source HDD to ensure data 3.
  • Page 9 2 Function Table 6.1.1 System and files Set to copy source HDD's data area only. 6.1.2 ALL Partitions Set to copy source HDD's all partitions. 6.1 Copy Area Setup copy mode. 6.1.3 Whole HDD Set to copy the whole source HDD. 6.1.4 Percentage (%) Sets percentage range of HDD for copy.

  • Page 10: Function Introduction

    3 Function Introduction 1. Copy It copies data from source HDD to target HDDs. Please make sure you have chosen correct copy mode you would like to use, about the three copy modes please refer to function [6.1 Copy Area] for details. Note: efault setting of [6.1 Copy Area] is "System and Files".

  • Page 11: Compare

    3 Function Introduction ③ When finishing copying, the copied result will be showed on the LCD. Quantitly of copy pass Quantitly og copy fail Copy time 2. Compare This function is used to check the correctness of the copying result. After finishing copying, go to function 2 and press OK to start executing comparing process.

  • Page 12: Quick Erase

    3 Function Introduction 4.1 Quick Erase The function will ONLY erase the index of the HDD, which is the quickest way to erase it. Quick Erase will damage the data in HDD, so please make sure you have backup all important data before using this function. 4.2 Full Erase The function will erase the whole sectors on the target HDD.

  • Page 13: Dod Erase Comp

    3 Function Introduction 4.4 DoD Erase Comp Besides DoD erase, this function will also execute compare function to make sure the random bit was correctly written. This way of erase is to erase HDD over each sector three times: the first time with zeros (0x00), second time with F(0xFF), and the third time with random characters.

  • Page 14: Update System

    3 Function Introduction 5.2 Update System This function is used to update the system firmware. Please follow the following steps to execute "Update System". Steps ① Select function [5.2.2 Create Update HDD]. [Update System] 2.Create Update HDD ② Format HDD.(Create a 2GB FAT partition) Do FORMAT HDD#1 Confirm ? Note:...

  • Page 15: Setup

    3 Function Introduction HDD Dupe 1-3 Ver:2.31.1 6. Setup 6.1 Copy Area 6.1.1 System and Files It will copy source HDD’s System and Files instead of the whole HDD. The system will analyze the source HDD and identify the data area to copy. As long as the source HDD’s data is within the target HDD’s space, the copy will be processed.

  • Page 16: Whole Hdd

    3 Function Introduction [Copy Area] All Partitions Note: The capacity of target HDD has to be larger than the sum of all partitions of source HDD. 6.1.3 Whole HDD This mode will copy the entire HDD, regardless of the content, format, partition, or free space, and it will take much more time to duplicate the source HDD completely.

  • Page 17: Percentage(%)

    3 Function Introduction Note: After copy, the remaining space in the copied HDD can be used by PC for further partitioning. 6.1.4 Percentage(%) Copy the percentage selected of source HDD. [Copy Area] Percentage(%) Source Duplication Target 25％ 25％ 32％ 32％ 500GB 500GB Only copy the selected area, other area or data will not be copied.

  • Page 18: Language

    3 Function Introduction This setting is to set the system’s language interface. [Language] English 6.4 Advanced Setup 6.4.1 Unknown Format This function is used to set if copying the unknown format area or not. 6.4.1.1 Copy Unknown This setting allows copying the unknown area that the system can’t identify its format.

  • Page 19: Erase Pattern

    3 Function Introduction [Erase Master] Disable [Erase Master] Enable Note: The default setting is [Disable Erase Master], which is to avoid from accidentally erasing your source HDD. 6.4.3 Erase Pattern This setting is used to select different erase methods. 6.4.3.1 ONE Byte A random character to be written into every byte.

  • Page 20: Transfer Rate

    3 Function Introduction 6.4.5 Transfer Rate You can select the best transfer rate from UDMA 2 to UDMA 4 for your HDD duplication progress. If you are not confident on the HDD quality or you find a high failure rate on copy or compare. It is recommended to slow down the UDMA mode.

  • Page 21: Specification

    4 Specification Model LE 600 Target Copy 3.9GB/m HDD Interface SATA Display Monochrome LCD Control Button 4 Push Buttons (UP,DOWN, OK,ESC) mSATA, eSATA, 2.5" SATA, 3.5" SATA, CF, Compatible Interface iVDR, 2.5" IDE , 3.5" IDE 1.Quick Copy (Systems & files) 2.All partition Duplication Modes 3.Whole HDD...

This manual is also suitable for:

Legend 600 seriesLe600
