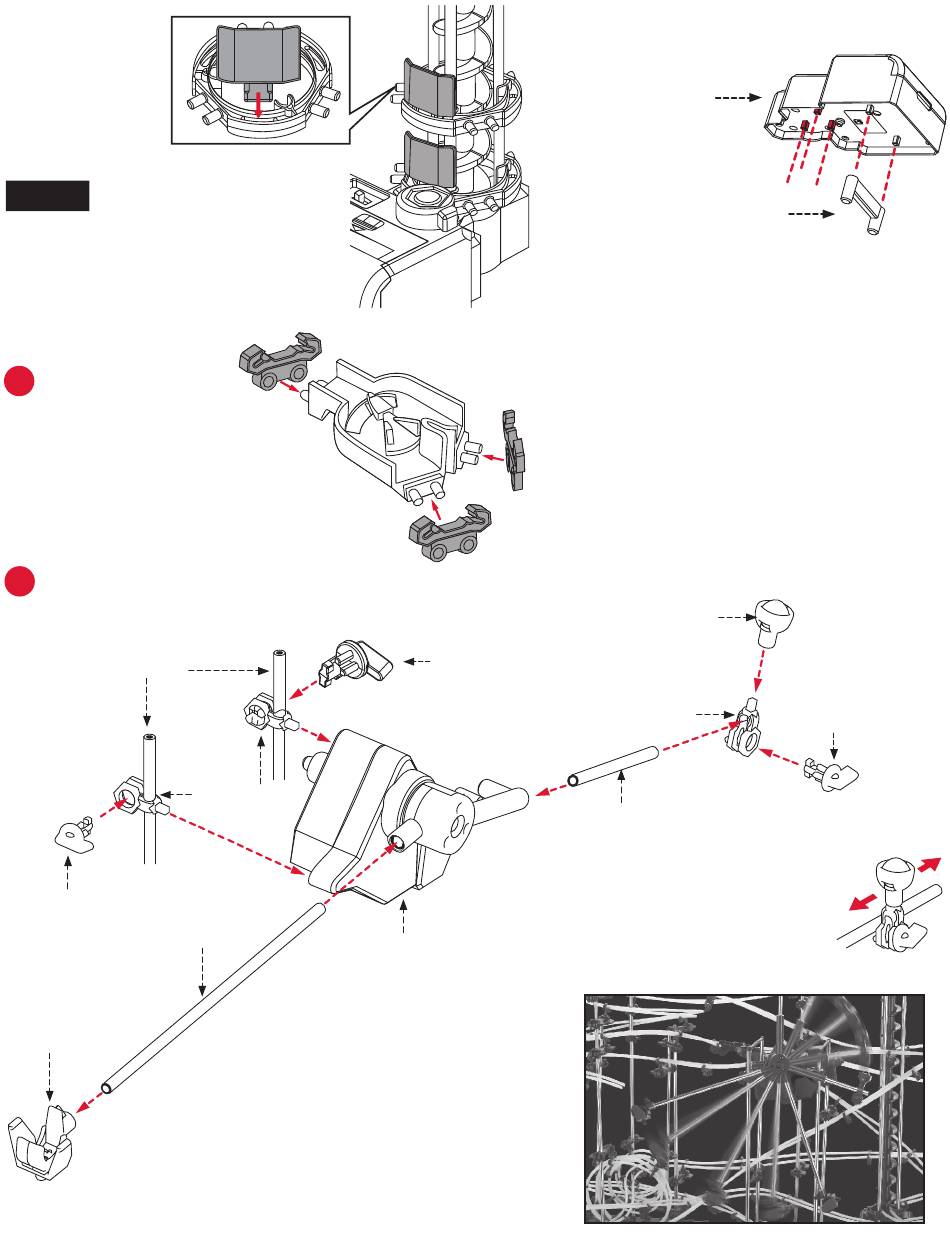

Step 7: Attach
an Elevator
Guard to each
of the Elevator
Rings, then to
the right side of
the Rail Clip.
NOTE:
The Marble may fall out of the
elevator if it enters too fast.
E
RAIL SPLITTER
Prepare Rail Splitter:
Attach one Rail Clip to each
of the Rail Splitter posts.
F
ROTATION ASSEMBLY
300mm Shaft
Arm
Lock
159mm Shaft
Marble Catcher
Seaich Corporation, LLC. All rights reserved. www.seaich.com | Spacerails, LLC. www.spacerails.com
Arm Holder B
Rotation Gear
Step 1: Assemble
parts as illustrated.
Step 8: Attach Power Box to
the Power Box Stand.
Counterweight
Arm Lock
Arm Holder B
65mm Shaft
Counterweight: If the rotation
is not functioning properly,
adjust the position of the
Counterweight until it does so.
Power Box
Insert into
holes on base
Power Box Stand
Arm Lock
