Summary of Contents for Inside Weather SAVOY BED

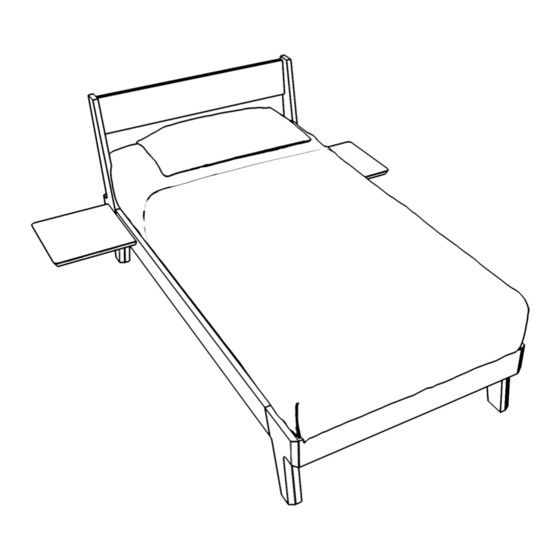

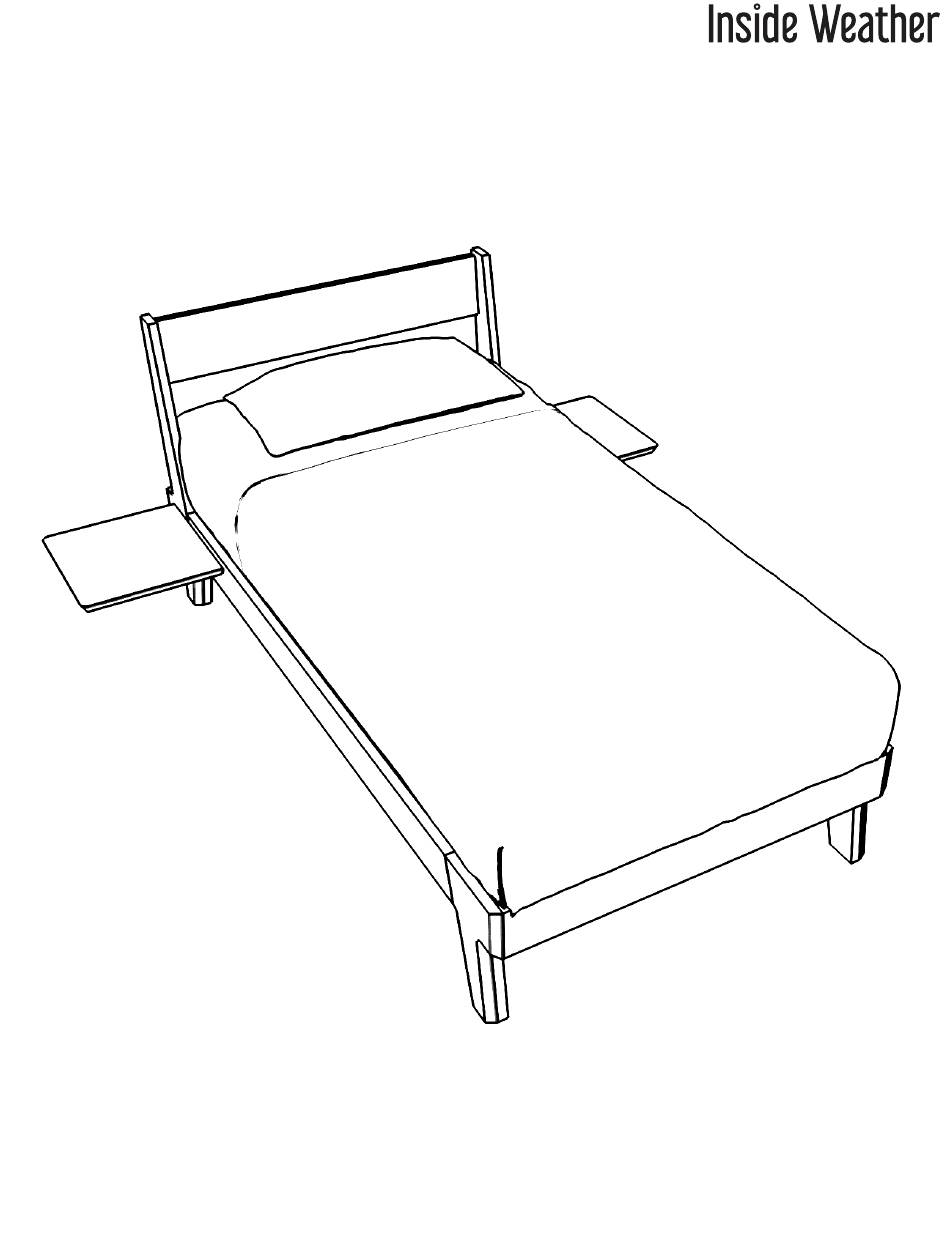

  • Page 1 SAVOY BED...
  • Page 2 Gather Your Eggs... Headboard Back Rail Back Legs Front Rail Front Legs Mega Slats Side Rails Support Back Connection Plate Front Connection Plate Rail Slats Ratchet 40mm Bolt Optional Parts if Side Table is included Long Hex Bit Washer Back Connection Plate (for side table) 6mm x 25 Hex Bit...
  • Page 3 Step 1: Connect Side Rails to Legs (Rear) Place cardboard on the ground to protect the floor and the bed frame pieces. You can use the box it came in. Align the left headboard leg frame with the left side rail. Insert 8 dowels into the corresponding holes.
  • Page 4 Step 2: Connect Side Rails to Legs (Front) Align the left front leg with the left side rail. Insert 8 dowels into the corresponding holes. With counterbore for washers facing up, fit front left connection plate over the dowels to align the leg and rail. Attach plate with ten 40mm bolts and washers.
  • Page 5 Step 3: Connect Side Rails to Legs (Front) Repeat steps 1 and 2 to assemble the right side of the frame. Step 4: Attach Back and Front Rail Stand left side of the frame up and attach the back rail by inserting the tabs into the corresponding slots.
  • Page 6 Step 5: Insert Table Brackets (Optional) Insert table brackets through the slots in the side rails. Fasten the brackets with four 40mm bolts and washers. Repeat for the other side. NOTE: Optional side table will be added at a later step.
  • Page 7 Step 6: Attach Support Rails Insert the support rails into the front and back rails. Angle one end into the pocket. and slide the opposite end into the other pocket. Slide the tabs into the corresponding slots. Insert the bed bracket bolt and tighten with ratchet tool and 6mm hex bit.
  • Page 8 Step 7: Attach Mega Slats Insert the mega slats into the support rails by inserting the tabs into the corresponding slots. Insert the bed bracket bolt and tighten with ratchet tool and 6mm hex bit. Repeat for the right side of the frame. Step 8: Insert Slats (Left Side) Slide a slat into the slot Repeat for all slats on...
  • Page 9 Step 9: Insert Slats (Right Side) Insert the slats for the right side by tilting the slat and inserting it into the corresponding slot. Step 10: Attach Table (Optional) Attach the side tables from underneath using the 16mm bolts.
  • Page 10 Step 11: Attach Headboard Note: When fitting the peices together, make sure the connecting screws are retracted inside their housing. Having the screw out could damage your surfaces. Slide the headboard into place and tighten the conecting screws through the openings Use screw caps to cover the openings after all are tightened.
  • Page 11 Step 12: Add Mattress Add a mattress (sold seperately). DONE!
