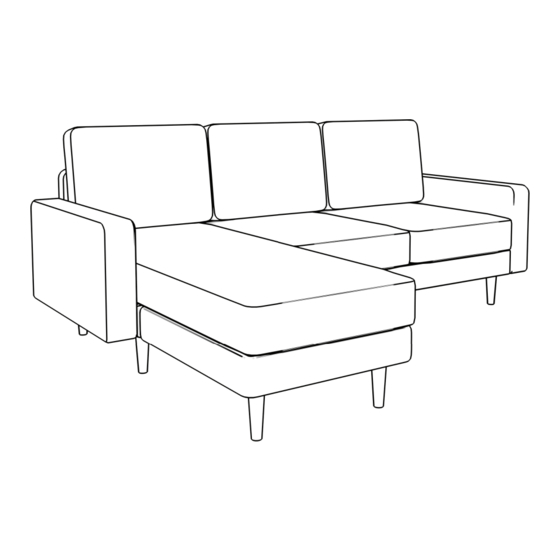

Gather Your Eggs... BACK PILLOWS BACK PLATE 2 ARMS CHAISE LOUNGE CUSHION SEAT CUSHIONS 2 INNER SUPPORT BRACES FRONT PLATE 27 SLATS CONNECTION BRACKET OTTOMAN BASE 8 SLATS Note: Please retain all boxes until you are certain that your product isn’t damaged and that you do not wish to return it.
You should have: 6x LEGS 24x SOCKET HEAD CAP SCREW 40x BUTTON HEAD HEX SCREW (5 MM HEX BIT) 4x CORNER BRACKETS 4x BUTTON HEAD HEX SCREW (4 MM HEX BIT) 16x NEOPRENE 4x WASHERS STICKY PADS DRILL + EXTENSION 5MM HEX BIT 4MM BALL HEAD BIT USB CHARGER...
Page 4
Step 1: Connect the Arms Let’s start by connecting the arms to the back panel. Lay the back panel flat on the floor, workbench or other stable surface with the metal strip is facing up. The process is identical for both arms. Connect the Hooks Stand the arm on its side.
Page 5
Connect the Arms (Continued) Place a corner bracket to connect the back and arm panels. Put a 5mm button head socket cap screw in each of the three holes in the back panel. Losely hand tighten only for now. Screws will be tightened after they have all been placed.
Page 6
Step 2: Install the Inner Support Braces You’ll Need: 2x INNER SUPPORT BRACES 16x BUTTON HEAD SOCKET CAP SCREW (5 MM HEX BIT)
Page 7
Install the Inner Support Braces (Continued) Line up the holes in the support brace with the corresponding holes on the frame. Make sure the edges are flush Hand tighten before finishing with the drill to make sure everything is properly aligned. Repeat on the other end of the brace.
Page 8
Step 3: Attach the Front Plate You’ll Need: FRONT PLATE CORNER BRACKETS 5MM BUTTON HEAD SCREWS In this step we’ll be adding the front plate. But first let’s make sure everything is ready! Set the front plate between the two arms as shown. Make sure that the flap of excess fabric is facing the top of the couch and hanging toward the inside of the frame.
Page 9
Attach the Front Plate (Continued) Attach a corner bracket to the front plate using 3 bolts. Hand tighten only Hold the corner bracket flat against the front plate and add 3 more bolts to attach the bracket to the arm. Go back over eack screw and use the drill to tighten until secure.
Page 10
Step 4: Install the Legs (Sofa) You’ll Need: 4x LEGS Note: Our legs are universal, and are used across multiple products. All sofa and ottoman legs will 16x SOCKET HEAD CAP SCREW attach securely with 4 fasteners per leg. Start by aligning the leg over the mounting holes. Insert Once each bolt is started by hand, use the bolts into corresponding threaded holes as shown and drill to finish securing the leg.
Page 11
Step 5: Install the Legs (Ottoman) You’ll Need: 2x LEGS 8x SOCKET HEAD CAP SCREW Install the 2 legs needed for Install the 2 legs needed for the ottoman section. These will the ottoman section. These will be installed at the front of the be installed at the front of the ottoman base.
Page 12
Step 6: Attach Sectional Bracket Begin by selecting which side of the Sofa you would like the sectional cushion to be on. Don’t worry, you can change sides at anytime. Taking the sectional connection bracket, slide the bracket up and align the bracket openings with the correspponding holes.
Page 13
Step 7: Add the Neoprene Pads To keep the cushions from sliding add the non-slip neoprene pads. 2 pads will be stuck onto a slat. Only 6 of the slats of the sofa will need pads. Please see diagram for correct placement.
Page 14
Step 8: Place the Slats Lay a slat in each groove, as shown. Be sure they arch upward. NOTE: You may need to gently coax some slats into place depending on how tightly everything has been assembled. Step 9: Add the Cushions DONE!
Page 15
Fabric Care Instructions Cleaning Codes Each fabric type has a specific cleaning code which can be found on the Free Swatch Page. SOLVENT OR WATER CLEANAB LE (S/W) Spot clean with upholstery shampoo, foam from a mild detergent, or a mild dry cleaning solvent. WATER CLEANAB LE (W) Spot clean fabric with a water-based shampoo or foam upholstery cleaner.
