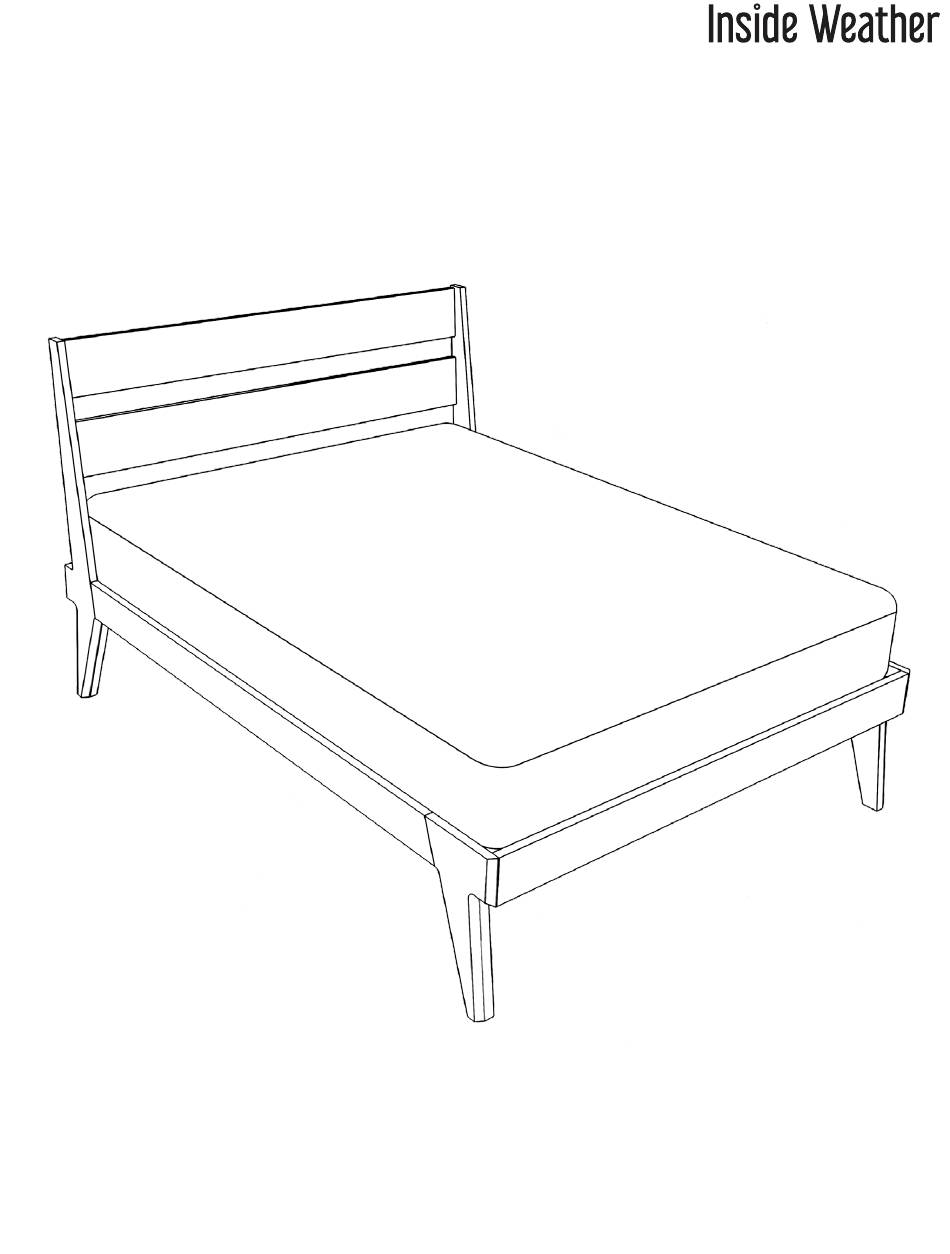

- Page 1 SAVOY BED...
- Page 2 Gather Your Eggs... Headboard Back Rail Back Legs Front Rail Side Rails Horizontal Supports Vertical Slats Front Legs 30mm Bolt Screw Caps 40mm Bolt Side Table and Bracket (Optional) 16mm Bolt Drill + Long Hex Bit Note: Please retain all boxes until you are certain that your product isn’t damaged and that you do not wish to return it.
- Page 3 Step 1: Connect Side Rails Place cardboard on the ground to protect the floor and the bed frame pieces. You can use the box it came in. Gather the parts for the right side of the bed frame. Fasten the side rails to the legs using the 30mm bolts.
- Page 4 Step 2: Attach Back Rail Stand up the left and right side rails. Place the back rail in between the side rails at their approximate spacing. Tighten the pre-placed bracket bolts to fasten the side rails to the back rails. Step 3: Attach Front Rail Repeat the previous step for the front rail.
- Page 5 Optional Step: Side Tables Follow the following step if you’ve chosen the bed with side tables. Side the metal brackets through the slots in the side rails. Use the 40mm bolts to fasten them in place. Place the side table on top of the brackets and tighten with the 16mm bolts.
- Page 6 Step 5: Place Horizontal Slats Slide the horizontal slates into place. Step 6: Place Vertical Slats Slide the vertical slates into place. Frame with placed slats...
- Page 7 Step 7: Attach Headboard Note: When fitting the peices together, make sure the connecting screws are retracted inside their housing. Having the screw out could damage your surfaces. Slide the headboard into place and tighten the conecting screws through the opening Use screw caps to cover the openings after all...
- Page 8 Step 8: Add Your Mattress Add a mattress (sold seperately). DONE!
