Summary of Contents for Inside Weather ALTO

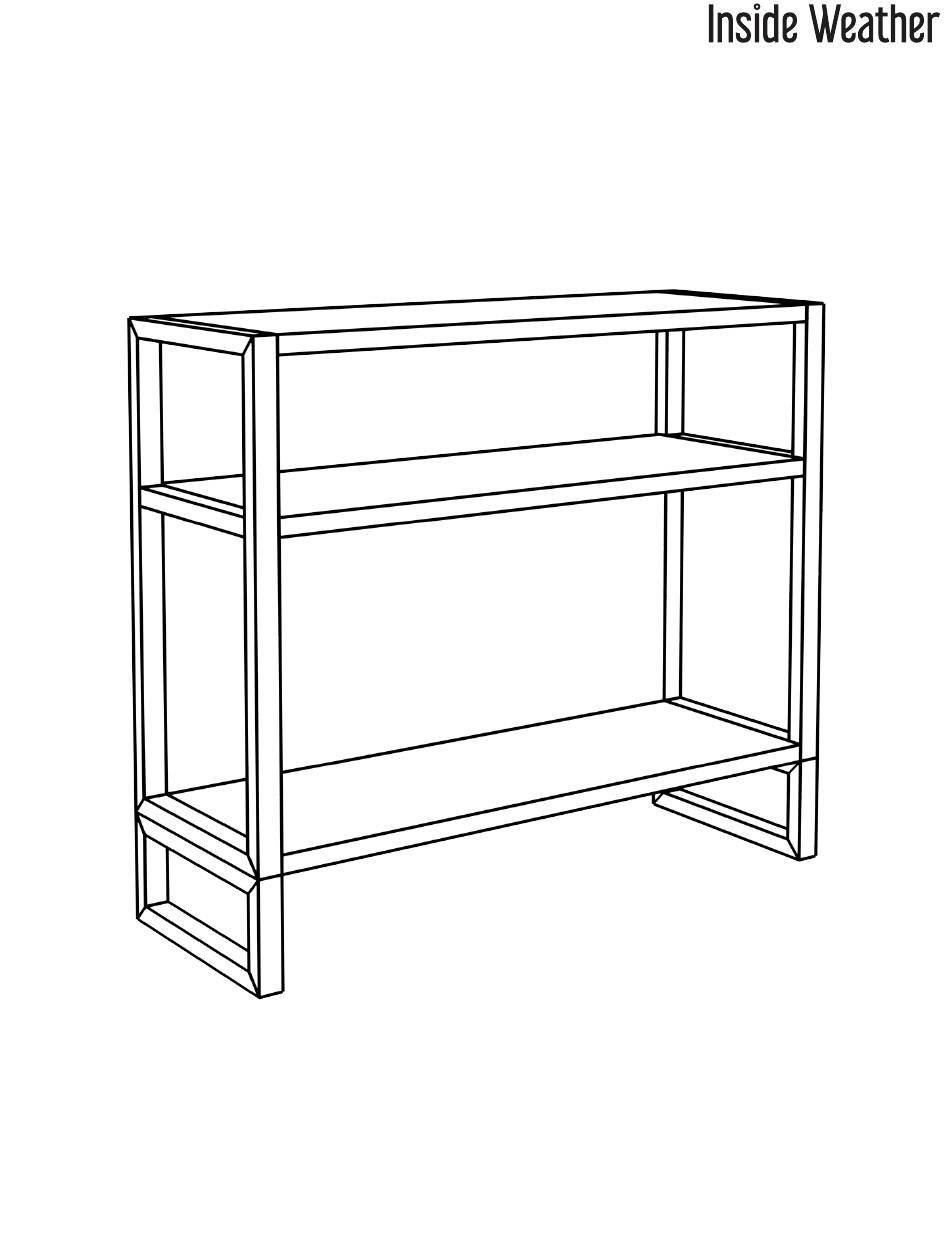

  • Page 1 ALTO SHELF...
  • Page 2 Gather Your Eggs... The parts shown here are all the available options. The type and amount of parts you have will be determined by your configuration. Shelf Body Left Leg Right Leg Mounting Screws L-Bracket Anchor Wood Screw 30mm Hex Screw Allen Key Mounting Template Note: Please retain all boxes until you are certain that your product isn’t damaged and that you...
  • Page 3 Step 1: Attach First Leg If you prefer to mount your unit to the wall without legs, skip to step 5. Place your unit upside-down on a soft surface to protect it. Insert two 30mm hex screws into the first leg. Tighten with the provided Allen key.
  • Page 4 Step 2: Attach Second Leg Repeat the previous step for the second leg. Step 3: Flip Unit Upright Flip your unit upright onto its legs.
  • Page 5 Step 4: Attach Multiple Units NOTE: Skip this step if you’ll be wall mounting your shelving units. To connect multiple units, install 2 L-brackets per connection using 3 flat head screws per bracket.
  • Page 6 Step 5: Mounting 27” Place the mounting template on the wall in the desired position. Level 1.75” the top line (best to use a level - not included) and tape the entire template into position. Check for studs at marked locations. If your markings land on a stud, omit the drywall anchor at that location for future steps.
  • Page 7 Step 6: Create Pilot Holes Screw in a mounting screw at each of the crosshairs on the template. Make sure you are screwing into the wall straight. Fasten the screw all the way into the wall, and then remove it. This will be the opening for your wall anchor.
  • Page 8 Step 9: Mount to the Wall Wall Rear of Unit Keyhole Opening Side View With the back of your console facing the wall, lift the unit and place the head of the drywall screws into the bottom opening of the keyholes on the back. Press the console against the wall and slide it down onto the screw until the screws bottom out.
