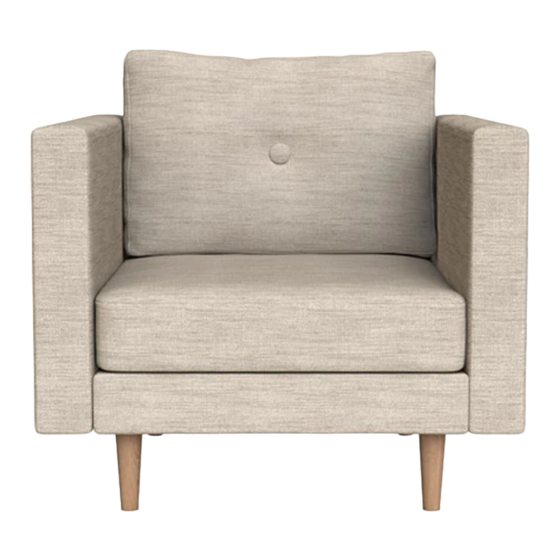

Inside Weather ARMCHAIR Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
ARMCHAIR

Advertisement

loading
Need help?

Need help?

Do you have a question about the ARMCHAIR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Inside Weather ARMCHAIR

Summary of Contents for Inside Weather ARMCHAIR

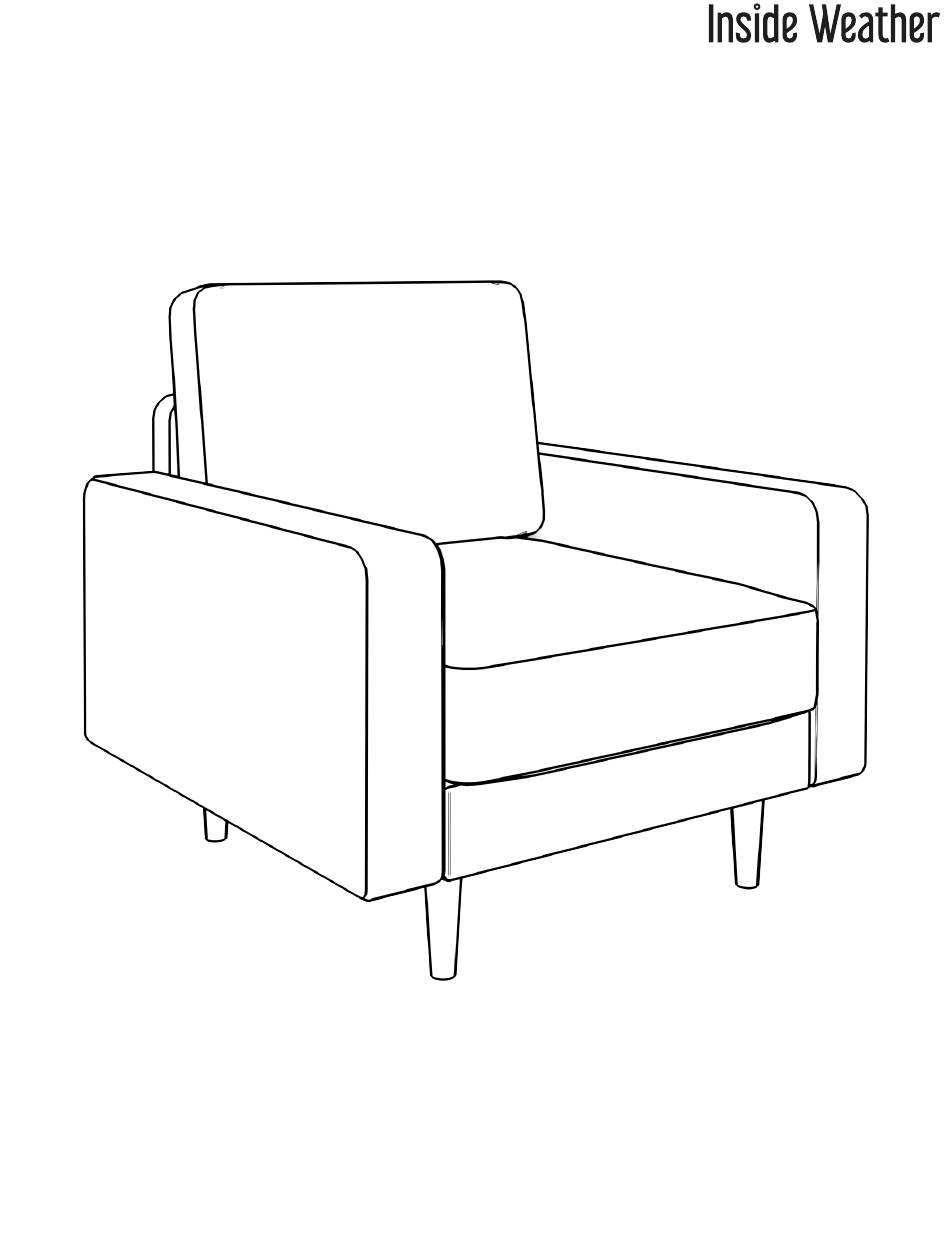

  • Page 1 ARMCHAIR...

  • Page 2: Seat Cushion

    Gather Your Eggs... BACK PILLOW SEAT CUSHION 2x ARMS BACK PLATE FRONT PLATE 9x SLATS Note: Please retain all boxes until you are certain that your product isn’t damaged and that you do not wish to return it. Disposal of boxes may prevent/delay our ability to resolve your request.
  • Page 3 You should have: 4x LEGS 16x SOCKET HEAD CAP SCREW 24x BUTTON HEAD HEX SCREW (5 MM HEX BIT) 4x CORNER BRACKETS 4x NEOPRENE STICKY PADS DRILL + EXTENSION 5MM HEX BIT 4MM BALL HEAD BIT USB CHARGER Note: Drill may need to be charged before use Note: Don’t be surprised if you find a few extra screws or washers among your supplies.
  • Page 4 Step 1: Connect the Arms Let’s start by connecting the arms to the back panel. Lay the back panel flat on the floor, workbench or other stable surface with the metal strip is facing up. The process is identical for both arms. Connect the Hooks Stand the arm on its side.
  • Page 5 Connect the Arms (Continued) Place a corner bracket to connect the back and arm panels. Put a 5mm button head socket cap screw in each of the three holes in the back panel. Losely hand tighten only for now. Screws will be tightened after they have all been placed.
  • Page 6 Step 2: Attach the Front Plate You’ll Need: FRONT PLATE CORNER BRACKETS 5MM BUTTON HEAD SCREWS In this step we’ll be adding the front plate. But first let’s make sure everything is ready! Set the front plate between the two arms as shown.
  • Page 7 Attach the Front Plate (Continued) Attach a corner bracket to the front plate using 3 bolts. Hand tighten only Hold the corner bracket flat against the front plate and add 3 more bolts to attach the bracket to the arm. Go back over eack screw and use the drill to tighten until secure.
  • Page 8 Step 3: Install the Legs You’ll Need: 4x LEGS Note: Our legs are universal, and are used across multiple products. All sofa and ottoman legs will 16x SOCKET HEAD CAP SCREW attach securely with 4 fasteners per leg. Start by aligning the leg over the mounting holes. Insert Once each bolt is started by hand, use the bolts into corresponding threaded holes as shown and drill to finish securing the leg.
  • Page 9 Step 4: Add the Neoprene Pads To keep the cushions from sliding add the non-slip neoprene pads. 2 pads will be stuck onto a slat. Only 2 of the slats of the sofa will need pads. Please see diagram for correct placement.
  • Page 10 Step 5: Place the Slats Lay a slat in each groove, as shown. Be sure they arch upward. NOTE: You may need to gently coax some slats into place depending on how tightly everything has been assembled. Step 6: Add the Cushions DONE!
