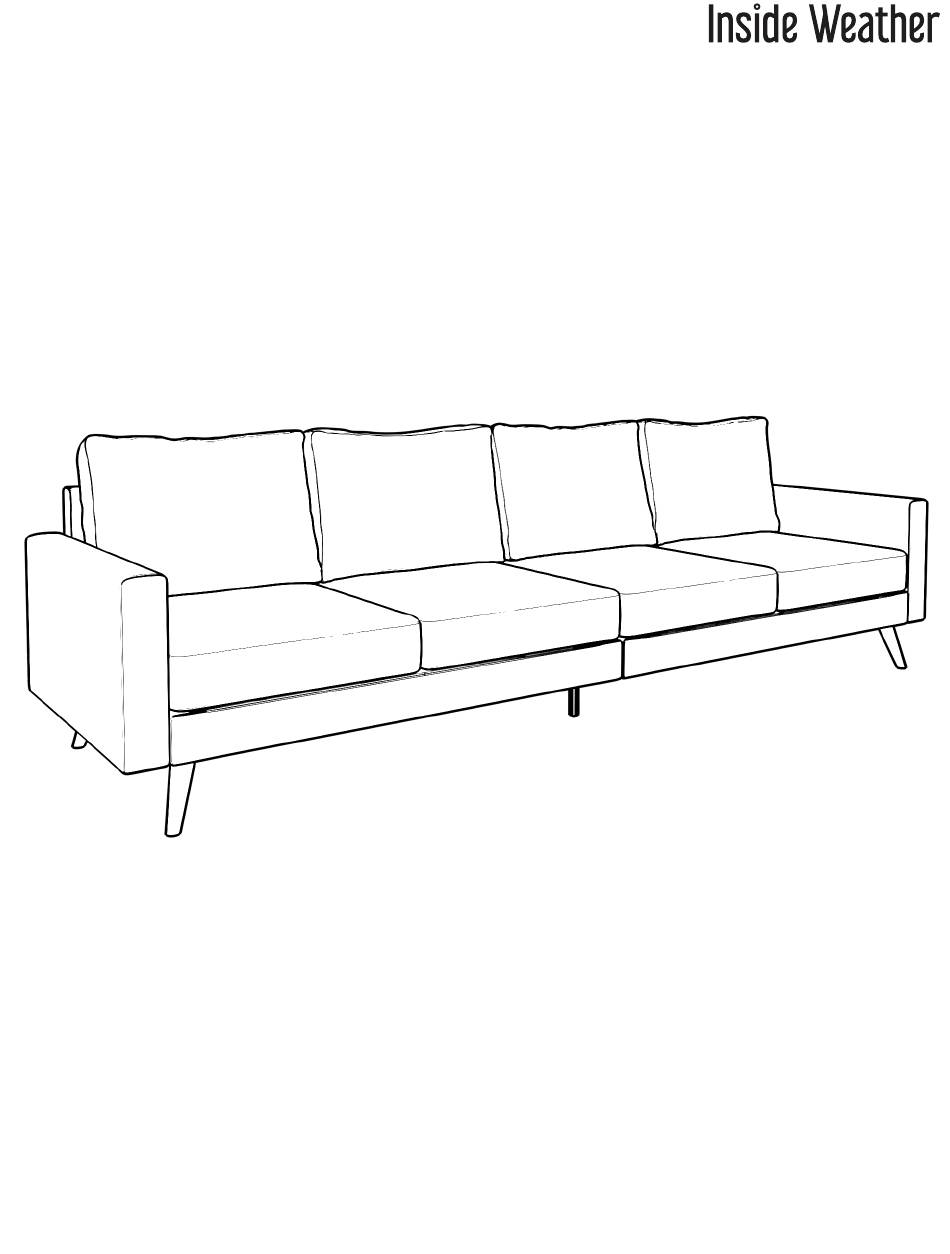

  • Page 1 4 SEAT SOFA...

  • Page 2: Seat Cushions

    Gather Your Eggs... BACK PILLOWS BACK PLATES 2x ARMS 2x FRONT PLATES SEAT CUSHIONS 3x INNER SUPPORT BRACE 36x SLATS Note: Please retain all boxes until you are certain that your product isn’t damaged and that you do not wish to return it. Disposal of boxes may prevent/delay our ability to resolve your request.
  • Page 3 You should have: 4x LEGS 16x SOCKET HEAD CAP SCREW 48x BUTTON HEAD HEX SCREW (5 MM HEX BIT) 4x CORNER BRACKETS CENTER SUPPORT LEG 16x NEOPRENE STICKY PADS 8x SET SCREWS DRILL + EXTENSION 5MM HEX BIT 4MM BALL HEAD BIT 3MM HEX BIT USB CHARGER Note: Drill may need to be charged before use...
  • Page 4 Step 1: Connect the Back Panels Center Brackets Push the back panels together to lock them in place. Connected Back Panels...
  • Page 5 Step 2: Connect the Arms Next we’ll connect the back panels to the arms. The process is identical for both arms. Connect the Hooks Stand the arm on its side. This is how they connect. Identify the corresponding hooks The connection is the same located on the arm and back panel.
  • Page 6 Connect the Arms (Continued) Place a corner bracket to connect the back and arm panels. Put a 5mm button head socket cap screw in each of the three holes in the back panel. Losely hand tighten only for now. Screws will be tightened after they have all been placed.
  • Page 7 Step 3: Install the Inner Support Braces You’ll Need: 3x INNER SUPPORT BRACES 12x BUTTON HEAD SOCKET CAP SCREW (5 MM HEX BIT)
  • Page 8 Install the Inner Support Braces (Continued) Line up the holes in the support brace with the corresponding holes on the frame. Make sure the edges are flush Hand tighten before finishing with the drill to make sure everything is properly aligned. Repeat for the other braces.
  • Page 9 Step 4: Attach the Front Plate You’ll Need: FRONT PLATES CORNER BRACKETS 5MM BUTTON HEAD SCREWS NOTE: When attaching the front plates, make sure the arrows in the center of each plate point in towards each other. In this step we’ll be adding the front plate.
  • Page 10 Attach the Front Plate (Continued) Set the front plate between the two arms as shown. Make sure that the flap of excess fabric is facing the top of the couch and hanging toward the inside of the frame. This will ensure that the plate is rotated correctly. Add 3 more bolts to the corner bracket.
  • Page 11 Step 5: Install the Legs You’ll Need: 4x LEGS Note: Our legs are universal, and are used across multiple products. All sofa and ottoman legs will 16x SOCKET HEAD CAP SCREW attach securely with 4 fasteners per leg. Start by aligning the leg over the mounting holes. Insert Once each bolt is started by hand, use the bolts into corresponding threaded holes as shown and drill to finish securing the leg.
  • Page 12 Step 6: Install the Center Support Legs Attach a center leg to the center brace. Add 4 set screws to fix the leg in place. The foot can be adjusted for proper height. Repeat for other leg.
  • Page 13 Step 7: Add the Neoprene Pads To keep the cushions from sliding add the non-slip neoprene pads. 2 pads will be stuck onto a slat. Only 8 of the slats of the sofa will need pads. Please see diagram for correct placement.
  • Page 14 Step 8: Place the Slats Lay a slat in each groove, as shown. Be sure they arch upward. NOTE: You may need to gently coax some slats into place depending on how tightly everything has been assembled. Step 9: Add the Cushions DONE!
