Industrial Ethernet Switch
User manual
MIEN1203-F
MIEN2204-2F
MIEN2205
MIEN2205-F
Packing list
The package of this switch contains the following items. If any item is found to be
missing or damaged, please contact the agent or the customer service center of
Maiwe for assistant.
Items
Industrial Ethernet Switch
Power cord
User Manual
Product description
This series switches are unmanaged din-rail industrial Ethernet switch.
MIEN1203-F supports 3 100M Ethernet ports (1*100M fiber port and 2*100M copper
ports); MIEN2205 supports 100M Ethernet ports (5*100M copper ports); MIEN2205-
F supports 5 100M Ethernet ports (1 100M fiber port and 4 100M copper port).

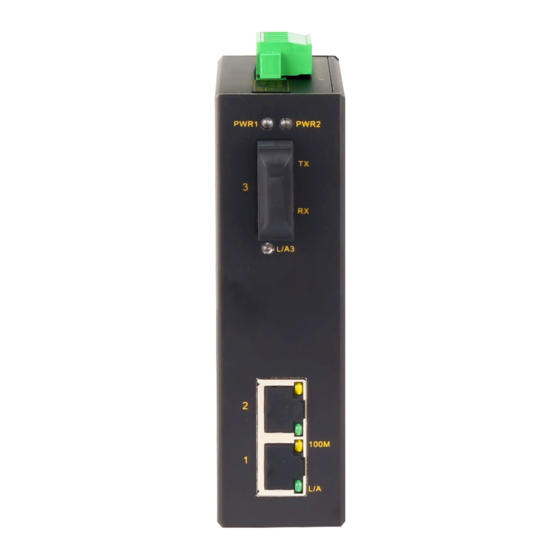

MIEN1203-F
MIEN2204-2F
Quantity
Remarks
1PCS
AD220 model only
1PCS
1PCS
MIEN2205
MIEN2205-F
Advertisement
Table of Contents
Related Manuals for Maiwe MIEN1203-F
Summary of Contents for Maiwe MIEN1203-F
- Page 1 Product description Industrial Ethernet Switch This series switches are unmanaged din-rail industrial Ethernet switch. MIEN1203-F supports 3 100M Ethernet ports (1*100M fiber port and 2*100M copper User manual ports); MIEN2205 supports 100M Ethernet ports (5*100M copper ports); MIEN2205- F supports 5 100M Ethernet ports (1 100M fiber port and 4 100M copper port).
- Page 2 Interface description The indicator description of the switch is shown in the following table. Take MIEN2205-F as an example Indicator lights Status Definition System Status LED Ground screw The power is connected and operating normally Power supply PWR1/PWR2 The power is not connected or the system is not operating normally The system is operating normally (some models are always Fiber port...
- Page 3 Hardware installation Device connection Network cables connection Installation Precautions Connect the optical fiber and network cable to the port in the correct To prevent equipment damage or personal injury caused by improper use, observe the following precautions: During the installation process, you need to wear anti-static gloves or anti-static gloves, and power-off the switch.
- Page 4 Warning Specifications Signals were transmitted by laser through optical fiber. The laser meets the MIEN1203-F MIEN2204-2F MIEN2205 MIEN2205-F requirement of class I, no harm with normal operation. Do not look directly into the fiber port and the end of the optical fiber terminator.
- Page 5 IEC61000-4-3(RS),Level 4 When sending the product back to Maiwe for repair, it is recommended that the IEC61000-4-6(CS),Level 4 customer use the original packaging or the packaging with the same protective effect, otherwise the customer shall bear the risks that occur during the Order guide transportation.
