Industrial Ethernet Switch
User manual
MIEN2206-2F
MIEN2208
Packing list
The package of this switch contains the following items. If any item is found to be
missing or damaged, please contact the agent or the customer service center of
Maiwe for assistant.
Items
Industrial Ethernet Switch
Power cord
User Manual
Product description

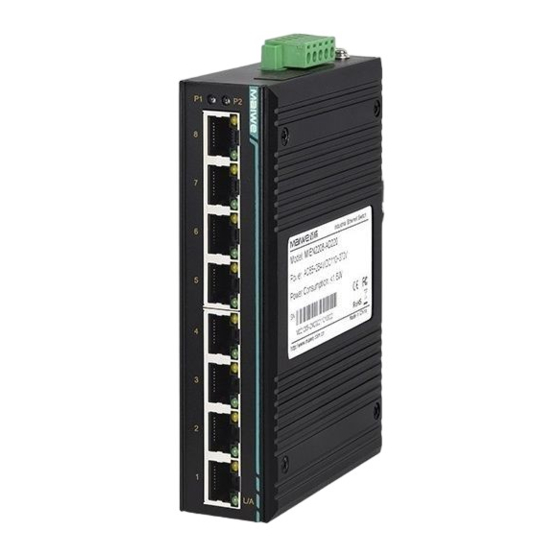

This switch is a 100M unmanaged din-raill industrial Ethernet switch.
MIEN2206-2F provides 6x100M Ethernet interfaces (2x100M fiber ports and 4x100M
copper ports); MIEN2208 provides 8 x100M Ethernet RJ45 ports.
MIEN2206-2F
Quantity
Remarks
1PCS
AD220 model only
1PCS
1PCS
MIEN2208
Advertisement
Table of Contents
Related Manuals for Maiwe MIEN2206-2F
Summary of Contents for Maiwe MIEN2206-2F
- Page 1 User Manual 1PCS Product description Industrial Ethernet Switch This switch is a 100M unmanaged din-raill industrial Ethernet switch. MIEN2206-2F provides 6x100M Ethernet interfaces (2x100M fiber ports and 4x100M User manual copper ports); MIEN2208 provides 8 x100M Ethernet RJ45 ports. MIEN2206-2F MIEN2208...
- Page 2 Interface description The indicator description of the switch is shown in the following table. Unit:mm Indicator lights Status Definition System Status LED Ground screw The power is connected and operating normally PWR1/PWR2 The power is not connected or the system is not operating RJ45 port Fiber port normally...
- Page 3 Hardware installation Device connection Network cables connection Installation Precautions Connect the optical fiber and network cable to the port in the correct To prevent equipment damage or personal injury caused by improper use, observe the following precautions: During the installation process, you need to wear anti-static gloves or anti-static gloves, and power-off the switch.
- Page 4 Warning Specifications Signals were transmitted by laser through optical fiber. The laser meets the MIEN2206-2F MIEN2208 requirement of class I, no harm with normal operation. Do not look directly into the fiber port and the end of the optical fiber terminator.
- Page 5 The accessories and power supply that come with the product are guaranteed for one year. IEC61000-4- 4(EFT),Level 4 When sending the product back to Maiwe for repair, it is recommended that the IEC61000-4-3(RS),Level 4 customer use the original packaging or the packaging with the same protective IEC61000-4-6(CS),Level 4 effect, otherwise the customer shall bear the risks that occur during the transportation.
