Industrial Ethernet Switch
User manual
MIEN2208-F
MIEN2208-2F
MIEN2208-4F
Packing list
The package of this switch contains the following items. If any item is found to be
missing or damaged, please contact the agent or the customer service center of
Maiwe for assistant.
Items
Industrial Ethernet Switch
Power cord
User Manual
Product description
The switch is a unmanaged din-rail industrial Ethernet switch. MIEN2208 series
provides 8 100M Ethernet interfaces. Among them, MIEN2208-F (1 100M fiber and 7
100M copper ports), MIEN2208-2F (2 100M fiber and 6 100M copper ports), MIEN
2208-4F (4 100M fiber and 4 100M copper ports).
MIEN2208-F
Quantity
Remarks
1PCS
AD220 model only
1PCS
1PCS
MIEN2208-2F
MIEN2208-4F
Advertisement
Table of Contents
Related Manuals for Maiwe MIEN2208-F
Summary of Contents for Maiwe MIEN2208-F

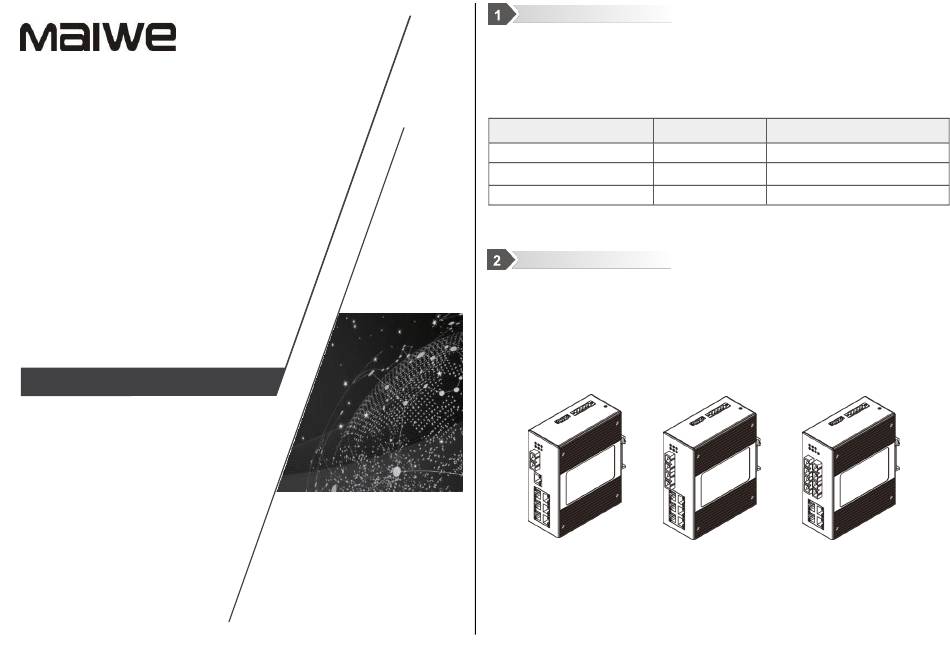

- Page 1 Industrial Ethernet Switch The switch is a unmanaged din-rail industrial Ethernet switch. MIEN2208 series provides 8 100M Ethernet interfaces. Among them, MIEN2208-F (1 100M fiber and 7 User manual 100M copper ports), MIEN2208-2F (2 100M fiber and 6 100M copper ports), MIEN 2208-4F (4 100M fiber and 4 100M copper ports).
- Page 2 Interface description Supports automatic MDI/MDI-X connection. You can connect the switch Ethernet RJ45 port to terminal devices, servers, hubs, or other switches. Take MIEN2208-2F as an example. The 100M fiber port is a 100Base-FX full-duplex single-mode or multi-mode fiber connector, which support single-fiber or dual- fiber Fiber port Ground screw connectors, and the connector can be SC, ST or FC.
- Page 3 Hardware installation Device connection Network cables connection Installation Precautions Connect the optical fiber and network cable to the port in the correct To prevent equipment damage or personal injury caused by improper use, observe the following precautions: During the installation process, you need to wear anti-static gloves or anti-static gloves, and power-off the switch.
- Page 4 Warning Specifications Signals were transmitted by laser through optical fiber. The laser meets the MIEN2208-F MIEN2208-2F MIEN2208-4F requirement of class I, no harm with normal operation. Do not look directly into the Switch performance fiber port and the end of the optical fiber terminator.
- Page 5 IEC61000-4-3(RS), Level4 When sending the product back to Maiwe for repair, it is recommended that the IEC61000-4-6(CS), Level4 ※The network port supports 6KV lightning protection customer use the original packaging or the packaging with the same protective effect, otherwise the customer shall bear the risks that occur during the transportation.
