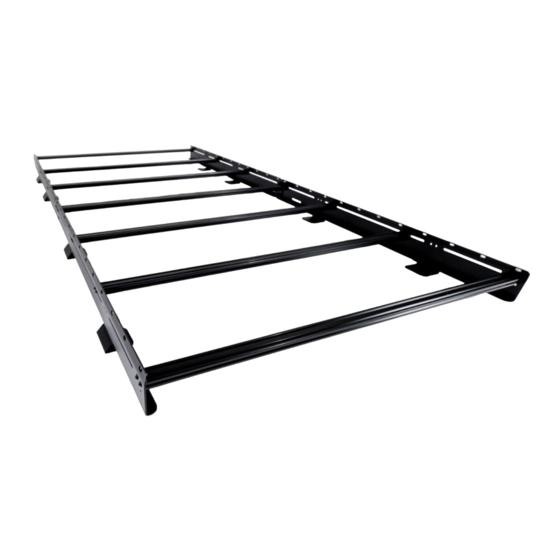

- Page 1 Installation Guide Low Pro Roof Rack 148 HR EXT TR0102B FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 2 All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing flatline van co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.
- Page 3 THANK YOU! ARE YOU EXCITED ABOUT YOUR NEW LOW PRO ROOF RACK? HERE ARE A FEW TOOLS THINGS TO DO BEFORE BEGINNING THE INSTALLATION PROCESS-- • PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO DAMAGE INCURRED DURING SHIPPING. • IF THERE IS DAMAGE TO REPORT, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT AS SOON AS POSSIBLE.
-
Page 4: Package Contents
PACKAGE CONTENTS DRIVER FRONT DRIVER REAR PASSENGER REAR PASSENGER FRONT RAIL RAIL RAIL RAIL QTY-1 QTY-1 QTY-1 QTY-1 RAIL CONNECTING LANDING M8 HEX BOLT SEALING WASHER CROSSBAR BRACKET QTY-10 QTY-10 QTY-6 QTY-2 QTY-10 1/4-20 NYLOCK 1/4 FLAT WASHER 1/4-20 FLANGE HEAD SCREW STICKER PACK INSTALLATION GUIDE QTY-18... -
Page 5: Let's Get Started
LET’S GET STARTED! REF PHOTO 1 FIRST STEP IS TO ATTACH THE LANDING PADS TO THE TOP OF YOUR VAN USING THE SUPPLIED M8 HARDWARE AND SEALING WASHERS. NOTE- DUE TO FACTORY INCONSISTENCIES YOU MAY NEED TO GRIND CLEARANCE ON THE HOLES OF YOUR VAN TO GAIN ACCESS TO THE THREADED HOLES. - Page 6 NOW YOU CAN START ATTACHING THE SIDE RAILS USING THE 1/4-20 FLANGE HEAD SCREWS, 1/4 FLAT WASHERS, AND 1/4-20 NYLOCKS AS SHOWN IN FIGURE 1 FIGURE 1. MAKE SURE TO LEAVE THEM A LITTLE LOOSE TO BEFORE ATTACHING THE CROSSBARS NOTE- REMEMBER THAT THE DRIVER SIDE RAILS HAVE THE LOWER SLOTS FOR MOUNTING YOUR SIDE LADDER.
- Page 7 FIGURE 3 PLACE YOUR CROSSBARS IN DESIRED LOCATION, LOOSELY BOLTING THE 1/4-20 FLANGE HEAD SCREWS IN PLACE. NOTE- KEEP IN MIND THE LAYOUT OF YOUR ROOF TOP ARRAY (SOLAR PANELS, FANS, TENTS, ETC.) YOU CAN MOUNT CROSSBARS IN THE SET PAIR OF HOLES (SEE FIGURE 3), OR YOU CAN PLACE THEM IN THE SLOTS WHICH PROVIDES YOU MORE FREEDOM OF LAYOUT.
- Page 8 FIGURE 6 TIGHTEN ALL CROSSBAR BOLTS USING THE 5/32 ALLEN KEY (SEE FIGURE 6) NOTE- DO NOT OVERTIGHTEN! IF YOU ARE CONCERNED ABOUT THE BOLTS BACKING OUT, YOU CAN PUT A DAB OF BLUE LOCTITE ON THE BOLTS BEFORE TIGHTENING DOWN COMPLETELY. NOW TIGHTEN SIDE RAILS DOWN TO THE LANDING PADS.
- Page 9 CUSTOMER SUPPORT If you are having any issues with your product, please reach out, and we will make it right. FVC is a company of van and outdoor enthusiasts that design and use our own products, so we want you to be as stoked on your new parts as we are! @flatlinevanco...
