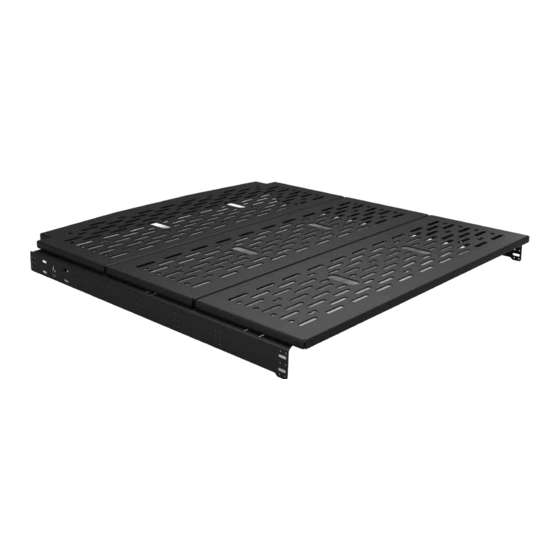

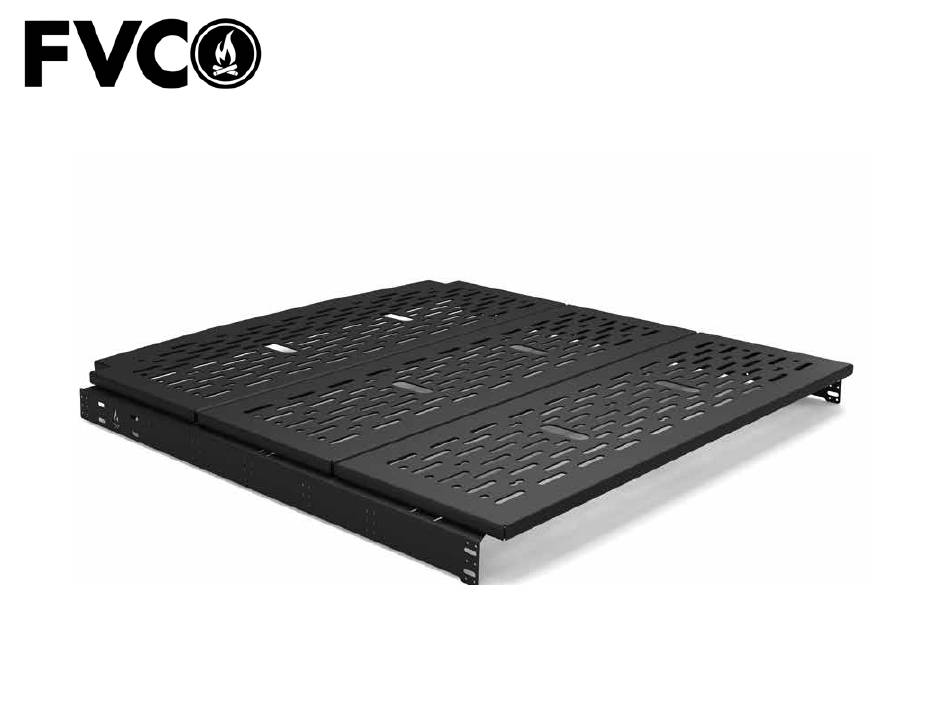

- Page 1 Installation Guide Sprinter Bed System DIY SP0301B FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 2 All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.
- Page 3 THANK YOU! ARE YOU EXCITED ABOUT YOUR NEW SPRINTER BED SYSTEM? HERE ARE A FEW TOOLS THINGS TO DO BEFORE BEGINNING THE INSTALLATION PROCESS-- • PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO DAMAGE INCURRED DURING SHIPPING. • IF THERE IS DAMAGE TO REPORT, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT AS SOON AS POSSIBLE.
-
Page 4: Package Contents
PACKAGE CONTENTS BED PANEL REAR BED PANEL QTY - 1 QTY - 2 PASSENGER SIDE BED RAIL DRIVER SIDE BED RAIL QTY - 1 QTY - 1 FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576... -
Page 5: Hardware Pack
HARDWARE PACK 3/8 SCREW CUSHION 3/8-16 X 1 SOCKET HEAD 3/8 SCREW FLAT WASHER L-TRACK STUD WASHER HEX DRIVE SCREW QTY - 6 QTY - 6 QTY - 6 QTY - 8 FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576... -
Page 6: Let's Get Started
LET’S GET STARTED! DIY INSTALLATION ADWAG INSTALLATION FIRST STEP IS TO GET THE BED RAILS UP. HAVING A SECOND SET OF HANDS WITH THE ADWAG INSTALLATION YOU WANT TO HOLD THE BED RAIL UP AT MAKES THIS MUCH EASIER. POSITION THEM WHERE YOU WANT THEM, AND THE DESIRED HEIGHT, NOTING THE CORRESPONDING KEY WAYS ON THE DRILL A FEW PILOT HOLES TO PUT SCREWS INTO. - Page 7 THE L-TRACK STUDS SEAT STRADDLING TWO OF THE CIRCULAR CUTOUTS AND ANCHOR IN THE KEY WAY AS SHOWN BELOW. L-TRACK STUD WILL LINE UP WITH THIS KEY WAY FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 8 ONCE YOU HAVE YOUR BED RAILS UP AND FULLY MOUNTED, YOU CAN SIMPLY PLACE THE BED PANELS ON AND FASTEN THEM USING THE 3/8-16 BUTTON HEAD SCREWS, 3/8 FLAT WASHER, AND 3/8 CUSHIONING WASHER, IN THAT ORDER (SEE FIGURE 1) NOTE- THERE ARE TWO (2) CONFIGURATIONS FOR YOUR DIY BED! THERE ARE TWO SERIES OF MOUNTING SLOTS ON THE RAILS.
- Page 9 FIGURE 2 THE TWO BED SIZE OPTIONS ARE SHOWN TO THE RIGHT (FIGURE 2) AND BELOW. THE 75” OPTION WILL LEAVE A SMALL GAP BETWEEN PANELS, BUT YOU WON’T FEEL IT UNDERNEATH YOUR MATTRESS. ONCE YOU PLACE YOUR PANELS, YOU’RE READY TO CRASH! 72”...
- Page 10 GET OUT AND EXPLORE! LEAVE US A REVIEW Happy with your new FVC product? We would love to hear (and see) from you! Head to the product page and click "Leave Review." Add a short review and upload a few photos to be showcased on the product page.
