Led Operation - IMC Networks McBasic TX/FX Operation Manual

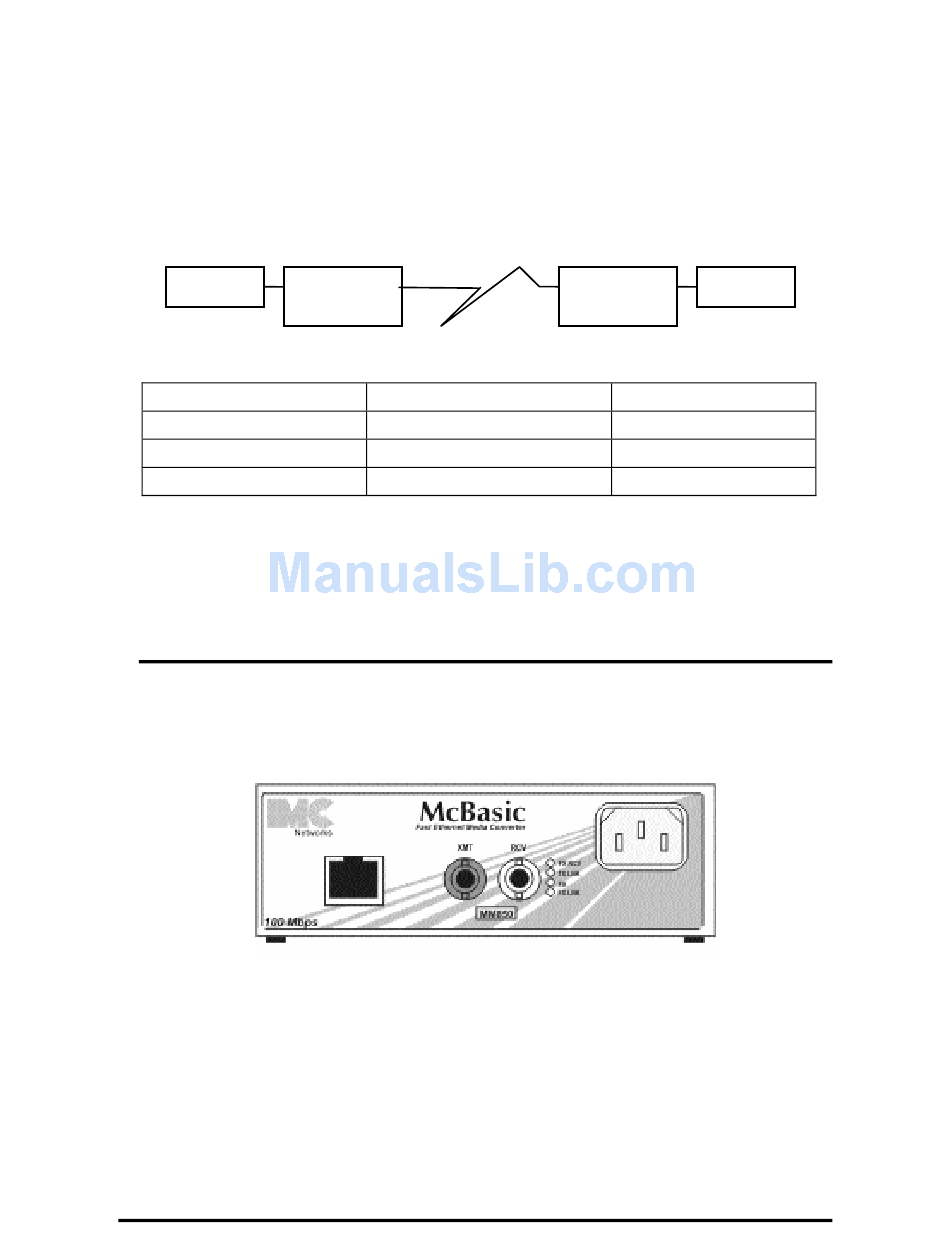

The diagram below shows a typical application, followed by a table with three
possible configurations.
HDX -------------------------- OK (Manual Setting Only) ---------------------------HDX
FDX ---------------------------- OK (AutoManual Setting) -------------------------- HDX
HDX -------------------------------------WRONG --------------------------------------FDX
Switch
End to End Connection
Half-Duplex
Full-Duplex
Full-Duplex
If you are unsure of how best to implement these features in your configuration,
please contact IMC Networks Technical Support at (800) 624-1070 (U.S. and
Canada); +32-16-550880 (Europe).

LED Operation

McBasic TX/FX features four diagnostic LEDs. The diagram below shows the
location of the unit's LEDs. Connect the DC power source.
The LED functions are:
FX RCV Glows yellow when module is receiving data.
TX LNK Glows green when a twisted pair link is established.
FA Glows green when FiberAlert is enabled. Blinks green when a
FiberAlert situation occurs (i.e. the loss of one strand of fiber).
FX LNK Glows green when a fiber link is established
Media
Converter
Switch
Manually configure HDX
Manually configure FDX
Auto-Negotiation On
6
Media Switch
Converter
TX/FX
Auto-Negotiation Off
Auto-Negotiation Off
Auto-Negotiation On
