Configuring McBasic TX/FX

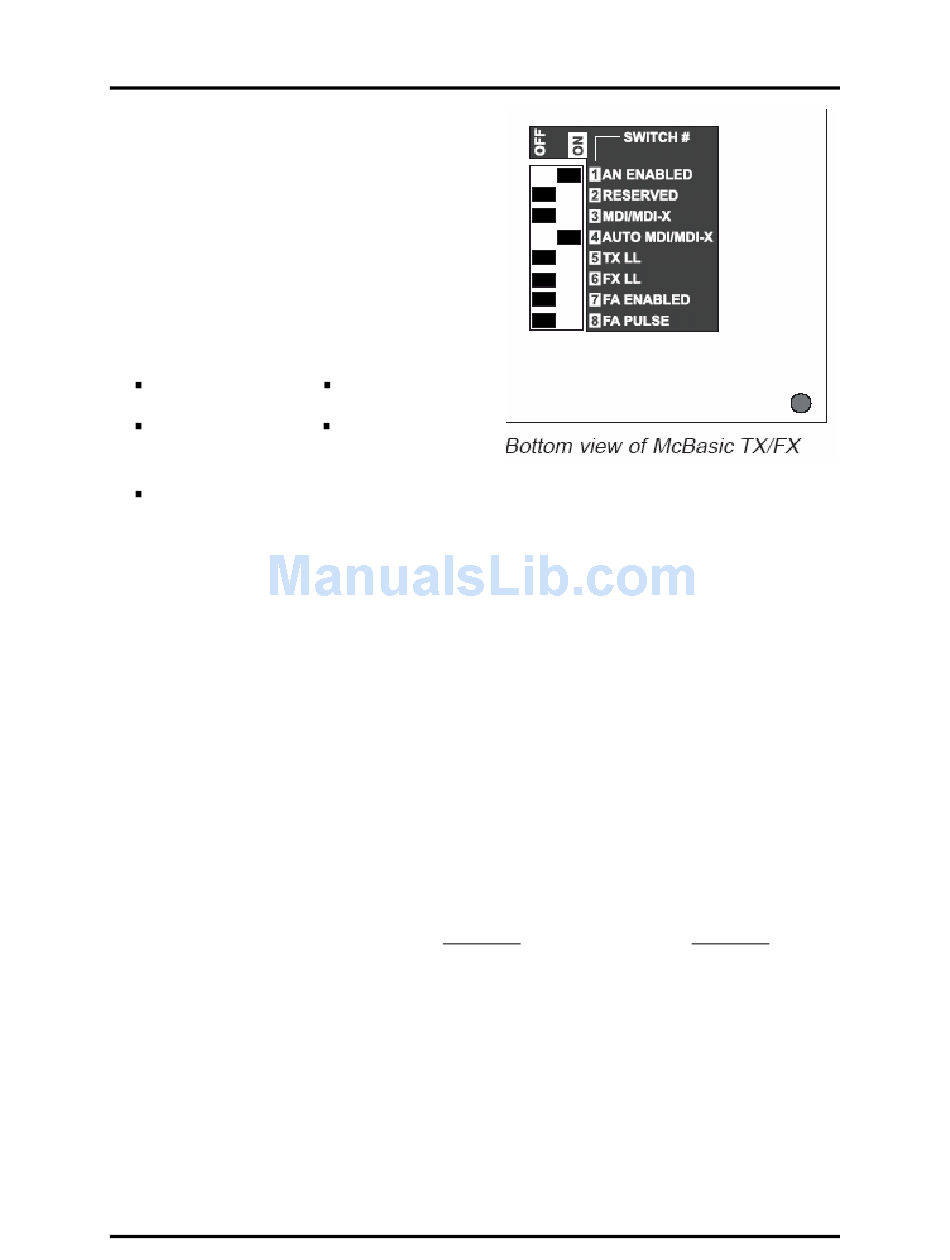

McBasic TX/FX features an 8-position DIP
switch for configuring the unit after
installation. Access this switch through a
cut-out in the bottom of the unit. After
configuring the DIP switch, power down
the unit and then power up again for the
changes to take effect. Default settings for
the following features are shown to the
right.
TX LinkLoss
FiberAlert
(Pulse)
AutoNegotiation
Twisted Pair Crossover/Pass-Through Connections
Whether you are using crossover or straight-through CAT5 twisted pair cabling,
McBasic TX/FX will support both types of connections by one of the following
methods:
AutoCross Switch 4:
MDI/MDI-X Switch 3:
FX LinkLoss
MDI/MDI-X
(Auto)
McBasic TX/FX includes AutoCross, a feature which
automatically selects between a crossover workstation or
pass-through connection depending on the connected
device. To enable AutoCross, move the Auto MDI/MDI-X
switch to the ON position.
To manually configure McBasic TX/FX for a pass-through
(MDI) or a crossover (MDI-X) connection, move the Auto
MDI/MDI-X Switch 4 to OFF, then move Switch 3 to the
desired connection type: MDI=OFF and MDI-X=ON. If
you are unsure of the type of connection, set the DIP
switch to a position that makes the twisted pair LNK (link)
LED glow.
