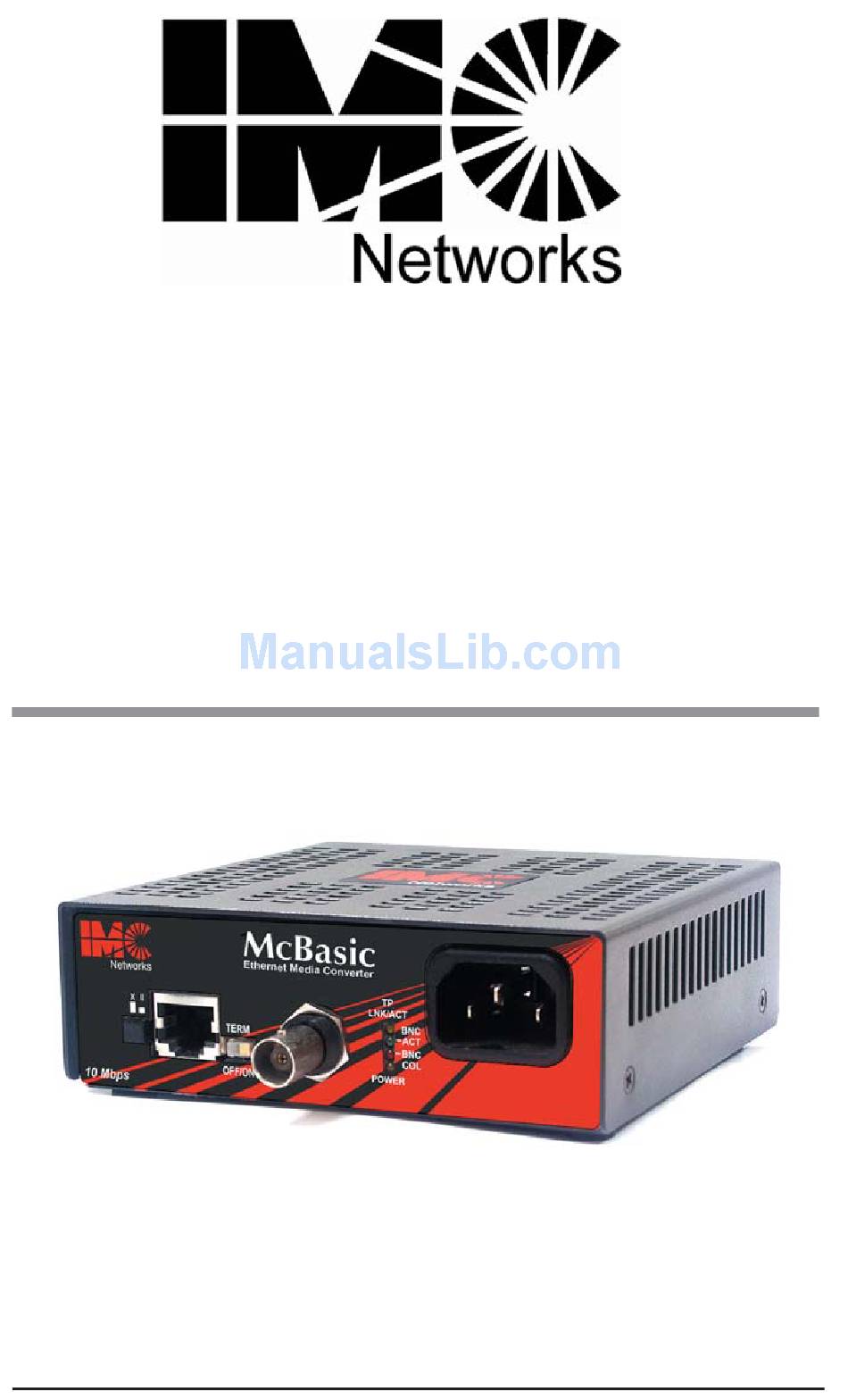

- Page 1 McBasic TP/BNC Operation Manual...
- Page 2 Notes:...
-
Page 3: Table Of Contents
Table of Contents About the McBasic TP/BNC ..... .1 McBasic TP/BNC Front Panel .....1 Twisted Pair Crossover/Pass-Through Switch . -
Page 4: About The Mcbasic Tp/Bnc
The LEDs Each McBasic TP/BNC features diagnostic LEDs. The following illustration shows the location of the LEDs, and other features, on the McBasic TP/BNC. The LED functions for the McBasic TP/BNC are as follows: TP LNK/ACT Glows yellow when a twisted pair link is established and flickers when data is being received. -
Page 5: Twisted Pair Crossover/Pass-Through Switch
OUT. If uncer- tain whether a crossover or pass-through connection is needed, set the push-button to the position that makes the TP LNK (link) LED glow. BNC Port Termination The McBasic TP/BNC features a 2-position, termination switch (TERM) next to the BNC connector that allows a thin coaxial segment to be termi- nated at the port without the use of an external 'T' connector/terminator. -
Page 6: Installing The Mcbasic Tp/Bnc
Installing the McBasic TP/BNC The McBasic TP/BNC converters come ready to install. Deploy McBasic TP/BNC units in pairs, or connect a McBasic TP/BNC converter to another IMC Networks converter. To install a McBasic TP/BNC converter, first make sure that the unit is placed on a flat surface. Attach the cables between the McBasic TP/BNC and each device that will be interconnect- ed, then plug the unit into a reliable, filtered power source. -
Page 7: Specifications
Power AC Input Load: 100-240V±10% ~ 50/60 Hz, 0.1/0.05A Dimensions 1.64"H x 4.75"W x 4.54"D (4.17cm x 12.07cm x 11.53cm) Shipping weight: 1.3 lbs. (0.6 kg) IMC Networks Technical Support Tel: (949)-465-3000; (800)-624-1070 (in U.S. and Canada) +32-16-550880 (Europe) Fax:... -
Page 8: Warranty
This warranty is subject to the limitations set forth below. At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited war-... -
Page 9: Federal Communications Commission Radio Frequency Interference Statement
Every reasonable effort has been made to ensure that IMC Networks product manuals and promotional materials accurately describe IMC Networks product specifications and capabilities at the time of publication. However, because of ongoing improvements and updating of IMC Networks products, IMC Networks cannot guarantee the accuracy of print- ed materials after the date of publication and disclaims liability for changes, errors or omissions. - Page 10 European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste. This symbol indicates that the equip- ment should be disposed of separately from regular household waste. It is the consumer's responsibility to dispose of this and all equipment so marked through designated collection facilities appointed by government or local authorities.
- Page 11 Notes:...
- Page 12 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. McBasic TP/BNC is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
