IMC Networks McPC-Gigabit Operation Manual

Ieee 802.3 single-conversion, pc card media converter
Hide thumbs Also See for McPC-Gigabit:

Advertisement

Quick Links

Download this manual
Networks
McPC-Gigabit
Operation Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the McPC-Gigabit and is the answer not in the manual?

Questions and answers

Related Manuals for IMC Networks McPC-Gigabit

Summary of Contents for IMC Networks McPC-Gigabit

  • Page 1 Networks McPC-Gigabit Operation Manual...

  • Page 3: Table Of Contents

    Table of Contents About the McPC-Gigabit ......1 Installing the McPC-Gigabit ..... . 2 LED Indicators .

  • Page 4: About The Mcpc-Gigabit

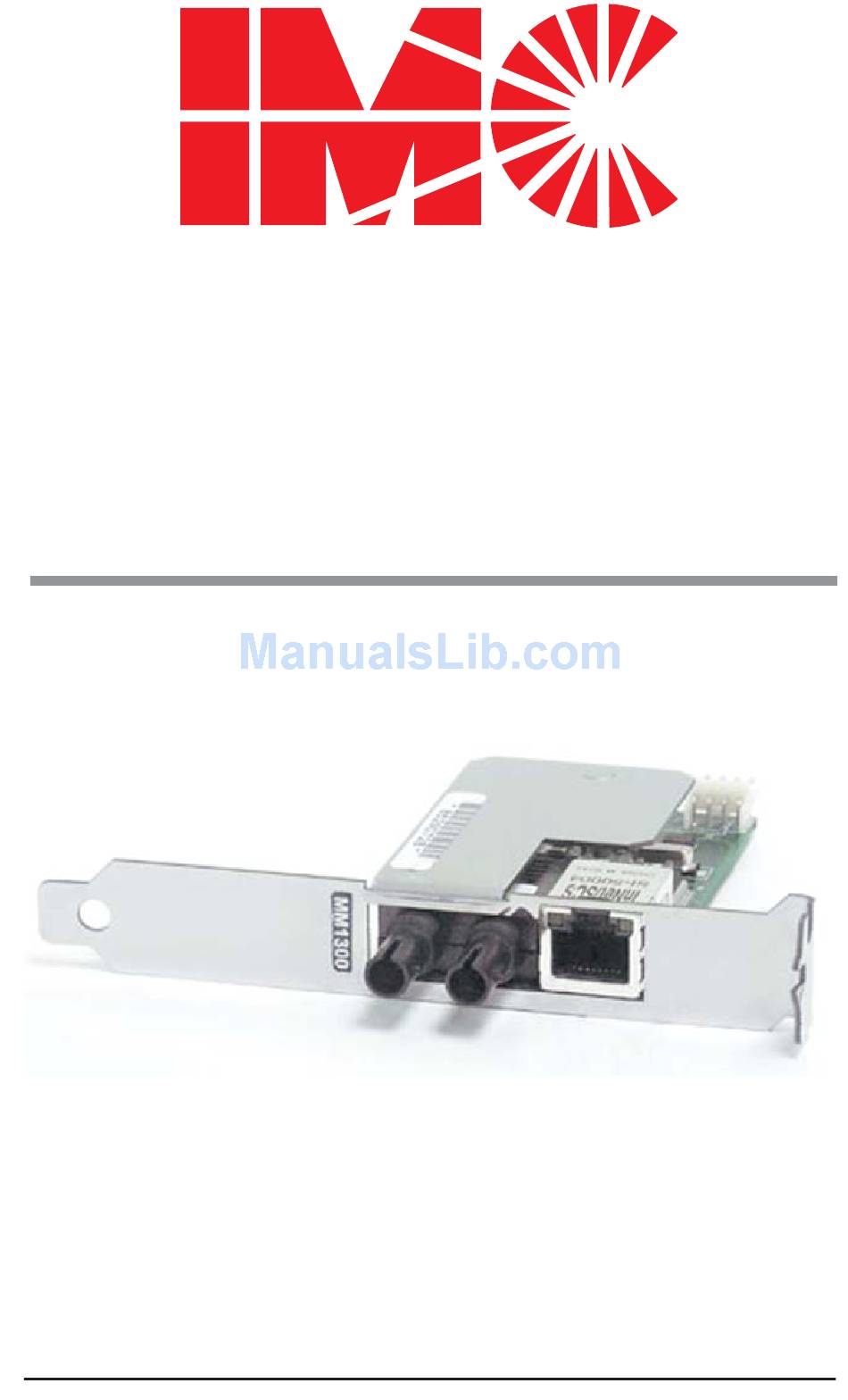

    Full-Duplex data travels on different wave- lengths— 1310 nm and 1550 nm. The McPC-Gigabit can be mounted into any PC with a standard PCI or ISA slot, and includes diagnostic LEDs for each port.

  • Page 5: Installing The Mcpc-Gigabit

    • Align the McPC-Gigabit in the slot. • Screw the the McPC-Gigabit into the computer casing’s bracket. • Make sure the McPC-Gigabit does not extend past the edge of the case. • Attach the keyed mini-power connector to the McPC-Gigabit.

  • Page 6: Led Indicators

    LED Indicators Each McPC-Gigabit includes two LEDs, located on the RJ-45 connector. LED functions are as follows: FX LNK/ACT: Glows green when a link is established on the fiber port; blinks green when activity is detected on the fiber port.

  • Page 7: Imc Networks Technical Support

    IMC Networks Technical Support Tel: (949)-465-3000; (800)-624-1070 (in U.S. and Canada) +32-16-550880 (Europe) Fax: (949)-465-3020 E-mail: techsupport@imcnetworks.com Web site: www.imcnetworks.com Specifications Environmental Operating Temperature: 32° - 104° F (0° - 40° C) Storage Temperature: 0° - 160° F (-20° - 70° C) Humidity: 5 - 95% (non-condensing) Current draw: 0.7A @ 5VDC...

  • Page 8: Fiber Optic Cleaning Guidelines

    1) Only use fiber patch cords (or connectors) from a reputable supplier; low-qual- ity components can cause many hard-to-diagnose problems. 2) IMC Networks installs dust caps to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device.
  • Page 9 At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, acci-...

  • Page 10: Federal Communications Commission Radio Frequency Interference Statement

    Federal Communication Commission Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B computing device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 11 Notes:...
  • Page 12 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. McPC-Gigabit is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
