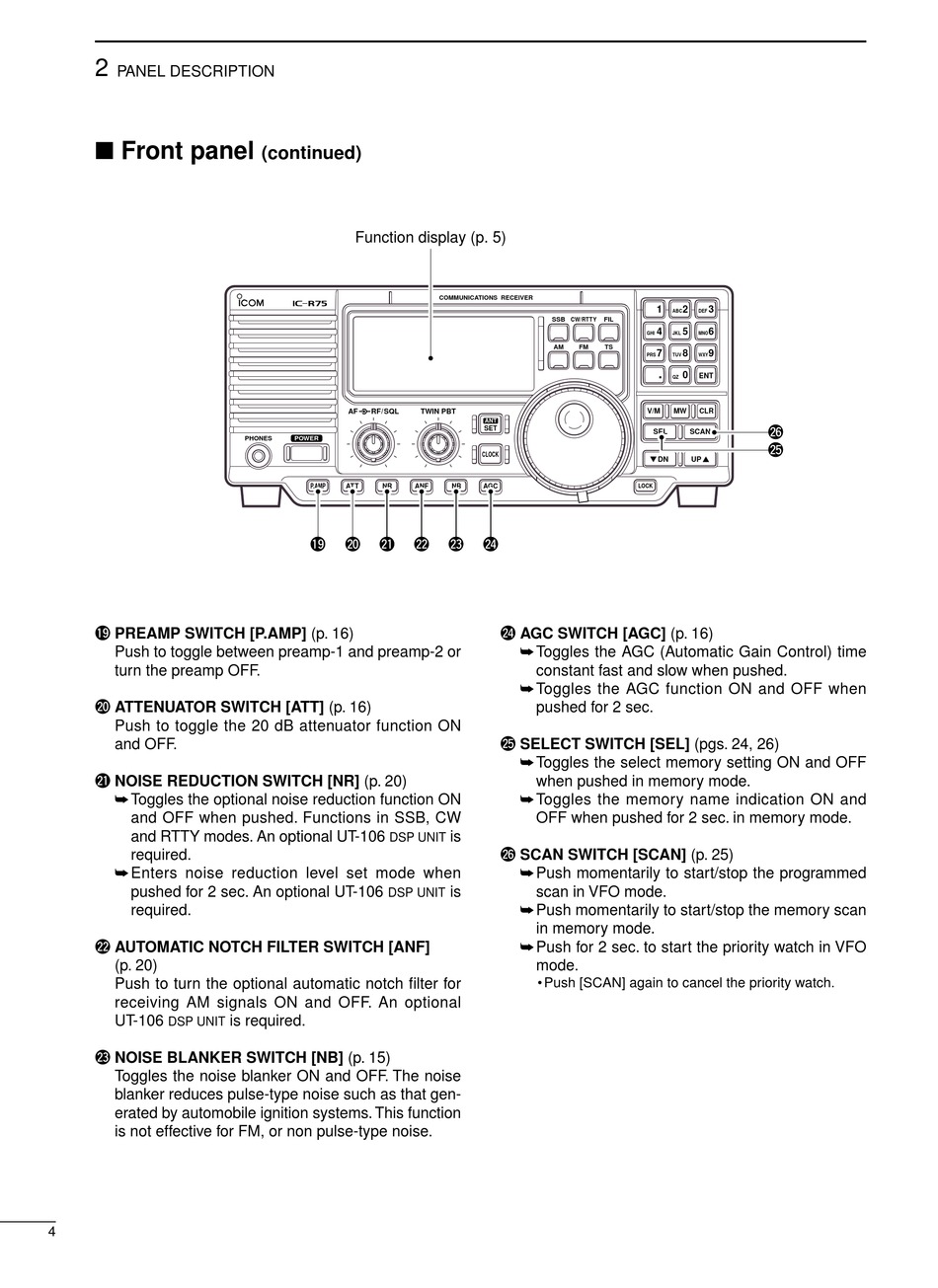

PANEL DESCRIPTION
Front panel
!9 PREAMP SWITCH [P.AMP] (p. 16)
Push to toggle between preamp-1 and preamp-2 or
turn the preamp OFF.
@0 ATTENUATOR SWITCH [ATT] (p. 16)
Push to toggle the 20 dB attenuator function ON
and OFF.
@1 NOISE REDUCTION SWITCH [NR] (p. 20)
Toggles the optional noise reduction function ON
and OFF when pushed. Functions in SSB, CW
and RTTY modes. An optional UT-106
required.
Enters noise reduction level set mode when
pushed for 2 sec. An optional UT-106
required.
@2 AUTOMATIC NOTCH FILTER SWITCH [ANF]
(p. 20)
Push to turn the optional automatic notch filter for
receiving AM signals ON and OFF. An optional
UT-106
DSP UNIT
@3 NOISE BLANKER SWITCH [NB] (p. 15)
Toggles the noise blanker ON and OFF. The noise
blanker reduces pulse-type noise such as that gen-
erated by automobile ignition systems. This function
is not effective for FM, or non pulse-type noise.
4
(continued)
Function display (p. 5)
AF RF/SQL
PHONES POWER
P.AMP ATT NR
! 9 @ 0 @ 1
DSP UNIT
DSP UNIT
is required.
COMMUNICATIONS RECEIVER
SSB CW/RTTY
AM FM
TWIN PBT
ANT
SET
CLOCK
ANF NB AGC
@ 2 @ 3 @ 4
@4 AGC SWITCH [AGC] (p. 16)
Toggles the AGC (Automatic Gain Control) time
constant fast and slow when pushed.
Toggles the AGC function ON and OFF when
pushed for 2 sec.
@5 SELECT SWITCH [SEL] (pgs. 24, 26)
Toggles the select memory setting ON and OFF
when pushed in memory mode.
Toggles the memory name indication ON and
OFF when pushed for 2 sec. in memory mode.
is
@6 SCAN SWITCH [SCAN] (p. 25)
Push momentarily to start/stop the programmed
is scan in VFO mode.
Push momentarily to start/stop the memory scan
in memory mode.
Push for 2 sec. to start the priority watch in VFO
mode.
• Push [SCAN] again to cancel the priority watch.
