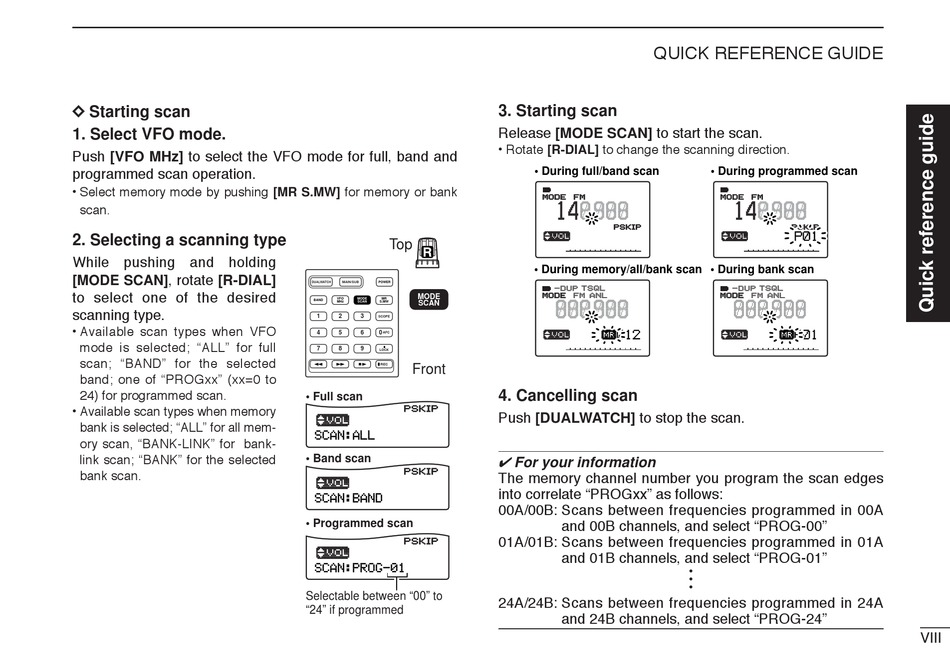

Icom IC-R20 Instruction Manual page 13

D D Starting scan
1. Select VFO mode.
Push [VFO MHz] to select the VFO mode for full, band and
programmed scan operation.
• Select memory mode by pushing [MR S.MW] for memory or bank
scan.
2. Selecting a scanning type
While pushing and holding
[MODE SCAN], rotate [R-DIAL]
to select one of the desired
scanning type.
• Available scan types when VFO
mode is selected; "ALL" for full
scan; "BAND" for the selected
band; one of "PROGxx" (xx=0 to
24) for programmed scan.
• Available scan types when memory
bank is selected; "ALL" for all mem-
ory scan, "BANK-LINK" for bank-
link scan; "BANK" for the selected
bank scan.
Top
DUALWATCH MAIN/SUB POWER
MODE
VFO MODE MR
BAND
MHz SCAN S.MW SCAN
1 2 3
SCOPE
4 5 6 0
AFC
7 8 9
LOCK
REC
Front
• Full scan
PSKIP
√
SCAN:ALL
• Band scan
PSKIP
√
SCAN:BAND
• Programmed scan
PSKIP
√
SCAN:PROG-01
Selectable between "00" to
"24" if programmed
QUICK REFERENCE GUIDE
3. Starting scan
Release [MODE SCAN] to start the scan.
• Rotate [R-DIAL] to change the scanning direction.
• During full/band scan
TSQL AFC
-DUP
MODE MODE FM FM ANL
148 888 0 000
PS PSKI KIP
√
• During memory/all/bank scan • During bank scan
-DUP TSQL AFC
MODE MODE FM FM ANL
888 888 000 000
PSKIP
√ µ 012
4. Cancelling scan
Push [DUALWATCH] to stop the scan.
✔ For your information
The memory channel number you program the scan edges
into correlate "PROGxx" as follows:
PSKIP
00A/00B: Scans between frequencies programmed in 00A
√
and 00B channels, and select "PROG-00"
SCAN:ALL
01A/01B: Scans between frequencies programmed in 01A
and 01B channels, and select "PROG-01" PSKIP
√
SCAN:BAND
24A/24B: Scans between frequencies programmed in 24A
PSKIP
and 24B channels, and select "PROG-24"
√
SCAN:PROG-01
• During programmed scan
TSQL AFC
-DUP
MODE MODE FM FM ANL
148 888 0 000
PS PSKI KIP
√ P01
-DUP TSQL AFC
MODE MODE FM FM ANL
888 888 000 000
PSKIP
√ µ P01
•
•
•
VIII
