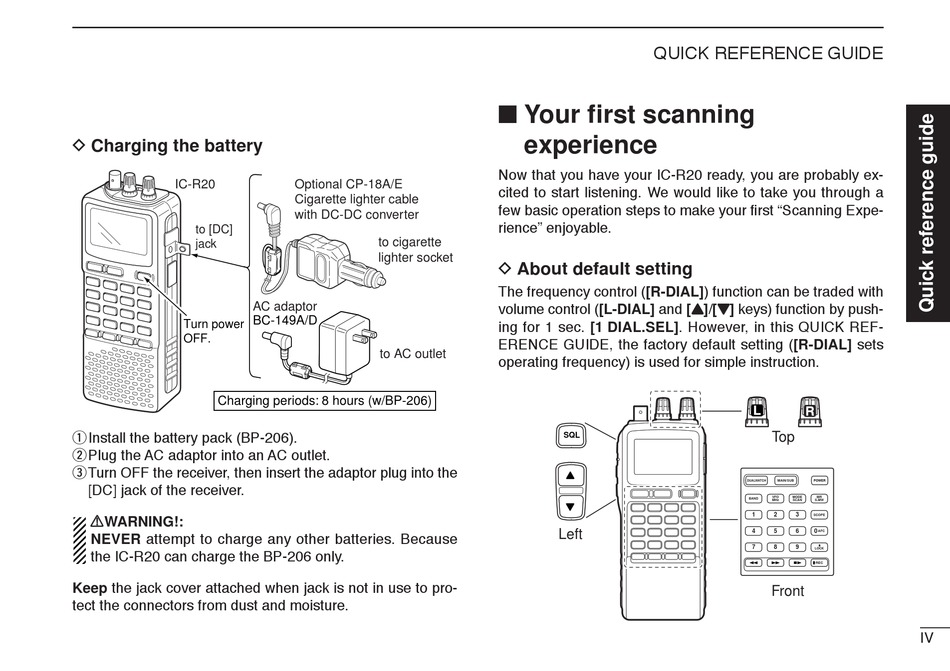

D Charging the battery
IC-R20
to [DC]
jack
Turn power
OFF.
Charging periods: 8 hours (w/BP-206)
q Install the battery pack (BP-206).
w Plug the AC adaptor into an AC outlet.
eTurn OFF the receiver, then insert the adaptor plug into the
[DC] jack of the receiver.
R R WARNING!:
NEVER attempt to charge any other batteries. Because
the IC-R20 can charge the BP-206 only.
Keep the jack cover attached when jack is not in use to pro-
tect the connectors from dust and moisture.
Optional CP-18A/E
Cigarette lighter cable
with DC-DC converter
to cigarette
lighter socket
AC adaptor
BC-149A/D
to AC outlet
QUICK REFERENCE GUIDE
■ Your first scanning
experience
Now that you have your IC-R20 ready, you are probably ex-
cited to start listening. We would like to take you through a
few basic operation steps to make your first "Scanning Expe-
rience" enjoyable.
D About default setting
The frequency control ([R-DIAL]) function can be traded with
volume control ([L-DIAL] and [Y Y ]/[Z Z ] keys) function by push-
ing for 1 sec. [1 DIAL.SEL]. However, in this QUICK REF-
ERENCE GUIDE, the factory default setting ([R-DIAL] sets
operating frequency) is used for simple instruction.
SQL
Left
Top
DUALWATCH MAIN/SUB POWER
VFO MODE MR
BAND
MHz SCAN S.MW
1 2 3
SCOPE
4 5 6 0
AFC
7 8 9
LOCK
REC
Front
IV
