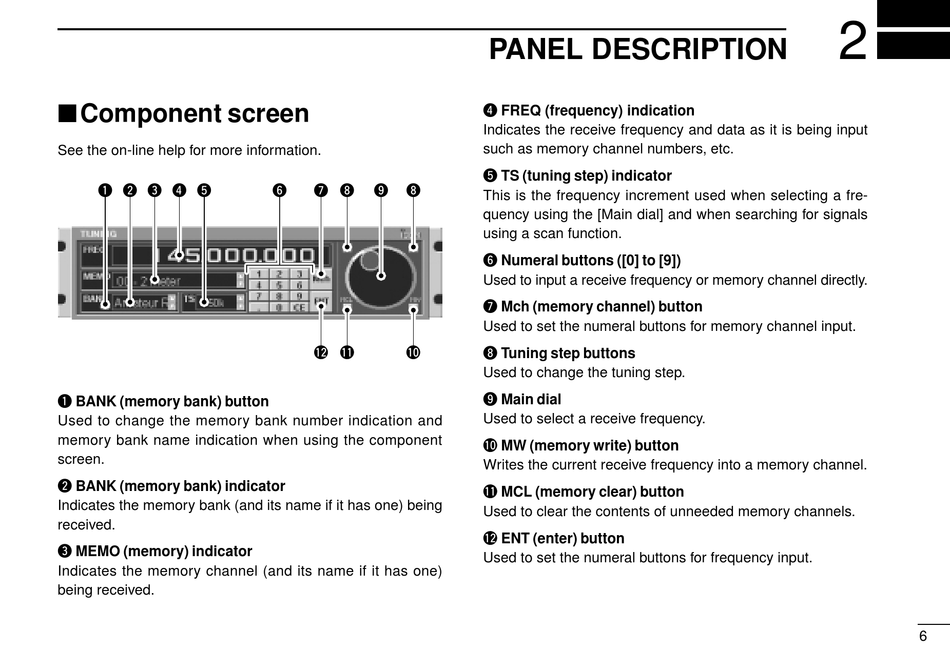

Component screen
See the on-line help for more information.
q w e r t
q BANK (memory bank) button
Used to change the memory bank number indication and
memory bank name indication when using the component
screen.
w BANK (memory bank) indicator
Indicates the memory bank (and its name if it has one) being
received.
e MEMO (memory) indicator
Indicates the memory channel (and its name if it has one)
being received.
y u i o i
!2 !1 !0

PANEL DESCRIPTION

r FREQ (frequency) indication
Indicates the receive frequency and data as it is being input
such as memory channel numbers, etc.
t TS (tuning step) indicator
This is the frequency increment used when selecting a fre-
quency using the [Main dial] and when searching for signals
using a scan function.
y Numeral buttons ([0] to [9])
Used to input a receive frequency or memory channel directly.
u Mch (memory channel) button
Used to set the numeral buttons for memory channel input.
i Tuning step buttons
Used to change the tuning step.
o Main dial
Used to select a receive frequency.
!0 MW (memory write) button
Writes the current receive frequency into a memory channel.
!1 MCL (memory clear) button
Used to clear the contents of unneeded memory channels.
!2 ENT (enter) button
Used to set the numeral buttons for frequency input.
