1

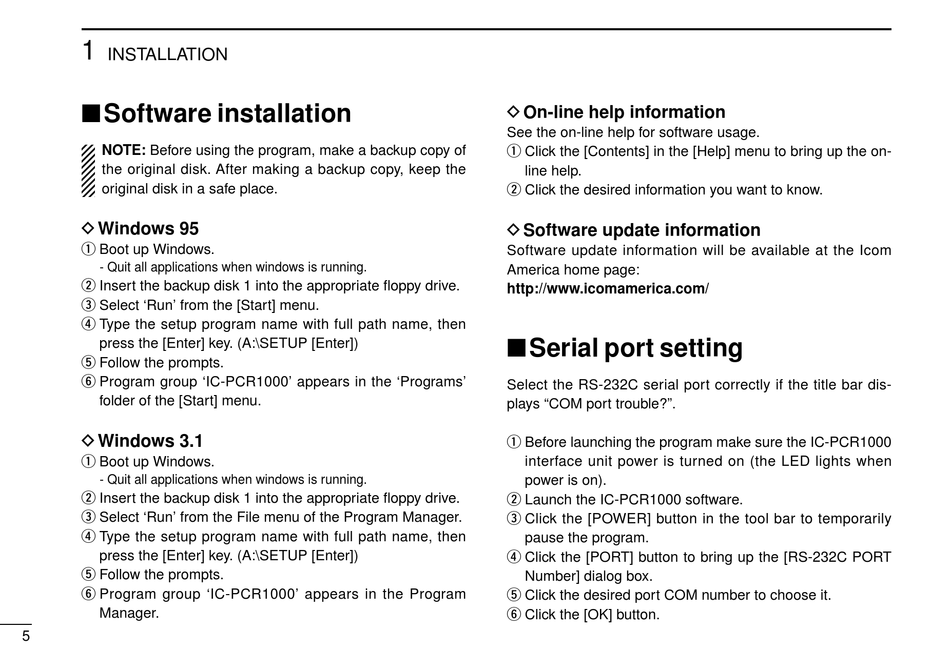

INSTALLATION

Software installation

NOTE: Before using the program, make a backup copy of
the original disk. After making a backup copy, keep the
original disk in a safe place.
D Windows 95
q Boot up Windows.
- Quit all applications when windows is running.
w Insert the backup disk 1 into the appropriate floppy drive.
e Select 'Run' from the [Start] menu.
r Type the setup program name with full path name, then
press the [Enter] key. (A:\SETUP [Enter])
t Follow the prompts.
y Program group 'IC-PCR1000' appears in the 'Programs'
folder of the [Start] menu.
D Windows 3.1
q Boot up Windows.
- Quit all applications when windows is running.
w Insert the backup disk 1 into the appropriate floppy drive.
e Select 'Run' from the File menu of the Program Manager.
r Type the setup program name with full path name, then
press the [Enter] key. (A:\SETUP [Enter])
t Follow the prompts.
y Program group 'IC-PCR1000' appears in the Program
Manager.
5
D On-line help information
See the on-line help for software usage.
q Click the [Contents] in the [Help] menu to bring up the on-
line help.
w Click the desired information you want to know.
D Software update information
Software update information will be available at the Icom
America home page:
http://www.icomamerica.com/

Serial port setting

Select the RS-232C serial port correctly if the title bar dis-
plays "COM port trouble?".
q Before launching the program make sure the IC-PCR1000
interface unit power is turned on (the LED lights when
power is on).
w Launch the IC-PCR1000 software.
e Click the [POWER] button in the tool bar to temporarily
pause the program.
r Click the [PORT] button to bring up the [RS-232C PORT
Number] dialog box.
t Click the desired port COM number to choose it.
y Click the [OK] button.
