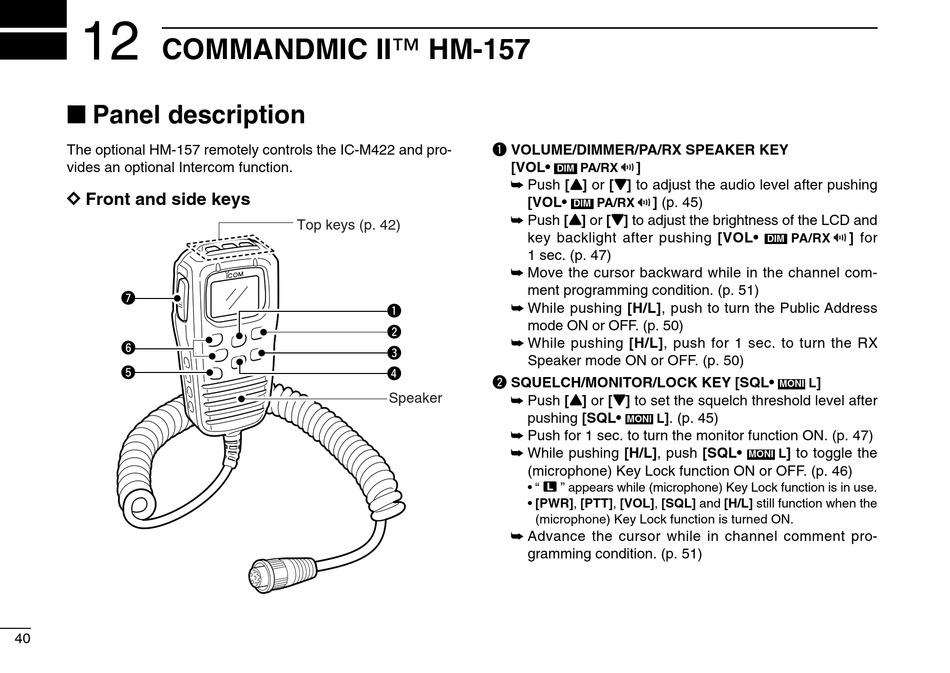

COMMANDMIC II™ HM-157

I Panel description

The optional HM-157 remotely controls the IC-M422 and pro-
vides an optional Intercom function.
D D Front and side keys
u
y
t
40
Top keys (p. 42)
q
w
e
r
Speaker
q VOLUME/DIMMER/PA/RX SPEAKER KEY
[VOL• ]
PA/RX
DIM
➥ Push [Y Y ] or [Z Z ] to adjust the audio level after pushing
[VOL• ] (p. 45)
PA/RX
DIM
➥ Push [Y Y ] or [Z Z ] to adjust the brightness of the LCD and
key backlight after pushing [VOL•
1 sec. (p. 47)
➥ Move the cursor backward while in the channel com-
ment programming condition. (p. 51)
➥ While pushing [H/L], push to turn the Public Address
mode ON or OFF. (p. 50)
➥ While pushing [H/L], push for 1 sec. to turn the RX
Speaker mode ON or OFF. (p. 50)
w SQUELCH/MONITOR/LOCK KEY [SQL•
➥ Push [Y Y ] or [Z Z ] to set the squelch threshold level after
pushing [SQL• ]. (p. 45)
L
MONI
➥ Push for 1 sec. to turn the monitor function ON. (p. 47)
➥ While pushing [H/L], push [SQL•
(microphone) Key Lock function ON or OFF. (p. 46)
• " T " appears while (microphone) Key Lock function is in use.
• [PWR], [PTT], [VOL], [SQL] and [H/L] still function when the
(microphone) Key Lock function is turned ON.
➥ Advance the cursor while in channel comment pro-
gramming condition. (p. 51)
] for
PA/RX
DIM
]
L
MONI
] to toggle the
L
MONI
