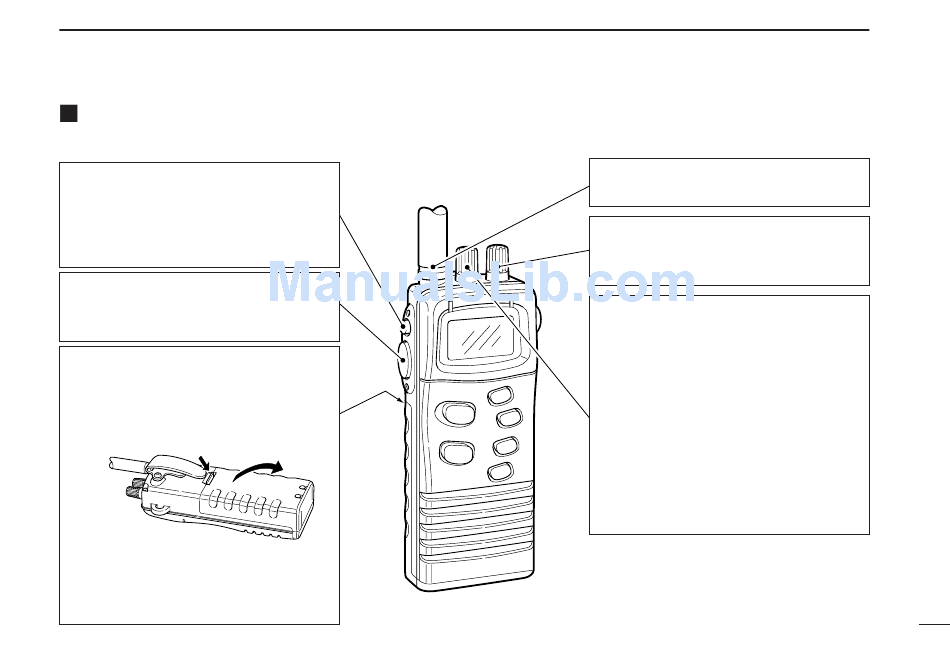

Top and side panels

SQUELCH/MONITOR SWITCH [SQL]
• Opens the squelch and monitors the op-
erating channel while being pushed.
• Sets the squelch level with the channel
selector. (p. 6)
PTT SWITCH [PTT]
Push and hold to transmit; release to re-
ceive. (p. 7)
BATTERY PACK RELEASE BUTTON
To remove the battery pack:
Push and hold the battery release button
downwards, then open the battery pack as
shown below.
To attach the battery pack:
Mate the notched ends of the transceiver
and the battery pack, and click the battery
pack into place.
PANEL DESCRIPTION
ANTENNA CONNECTOR (p. 17)
Connects the supplied antenna.
VOLUME CONTROL [OFF/VOL]
Turns power ON and adjusts the audio
level. (p. 7)
CHANNEL SELECTOR [CH]
• Sets an operating channel during normal
operation. (pgs. 5, 6)
• Sets a squelch threshold level while
pushing [SQL]. (p. 6)
• Checks tag channels or changes scan-
ning direction during scan. (p. 12)
• Selects the set mode contents in SET
mode. (pgs. 13, 14)
• Selects the optional scrambler code
when [SCN ] is pushed and held.
•SCRM
(p. 8)
